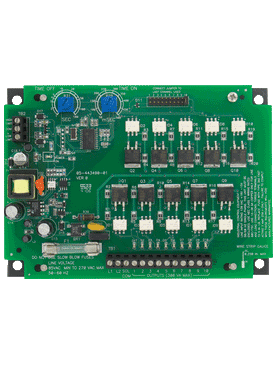

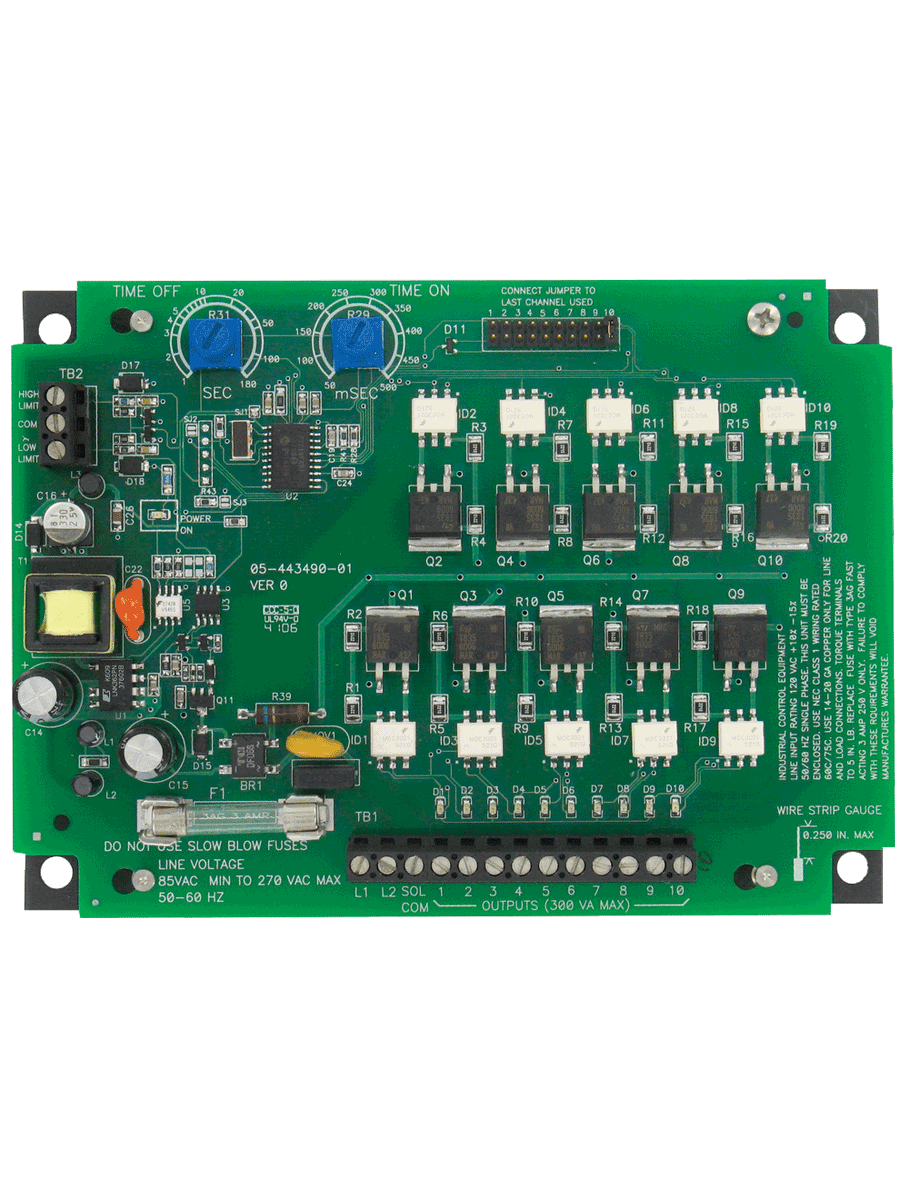

Timer controller | 4 channels.
Series DCT600 Timer Controller
The Series DCT600 Timer Controller is a timing system for pulse-jet type dust collectors or pneumatic conveying systems in either continuous or on-demand cleaning applications. It provides either 4, 6, 10, 22 or 32 channels. The DCT600 was designed for ease of installation in your dust collector system. For installations requiring fewer channels than available on the board, a shorting plug (DCT604 & DCT610) or dip switches (DCT622 & DCT632) allows selection of the last used channel. Time-on and time-off settings are selected using two potentiometers. High-limit and low-limit control inputs are provided for use with on-demand systems. Units can also work in continuous clean mode. The new enhanced board circuitry of the DCT600 synchronizes the on-time pulse to the power line to achieve a pulse stability of ±1 msec. For safety, the control circuitry including the control inputs and the last channel jumper is isolated from the power line.
Product Applications
- Dust collection
- Pneumatic conveying
- Better synchronized on-time pulse to the power line for better pulse stability
- Adjustable potentiometers to select time-on and time-off settings
- Simple and easy to use design
Specifications
- Series
- DCT600 Timer Controller
- Category/Type
- Process Control
- Type
- Timer Boards
- Series
- DCT600 Timer Controller
- Output Channels
- 4; 6; 10; 22 and 32 channels available.
- Power Requirements
- 85 to 270 VAC.
- Power Consumption
- 1.2 W.
- Solenoid Supply
- 300 VA.
- Fuse
- Type 3 AG; 3 A @ 250 VAC.
- Temperature Limits
- -40 to 140°F (-40 to 60°C).
- Storage Temperature Limits
- -40 to 176°F (-40 to 80°C).
- On Time
- 50 msec to 500 msec.
- On Time Accuracy
- ±5% of setting.
- On Time Stability
- ±1 msec.
- Off Time
- 1 second to 180 seconds.
- Off Time Accuracy
- 5% of setting.
- Weight
- 9 oz (255 g).
- Agency Approvals
- CE; cUL; UL.
- *Additional specifications on IOM.
