DBV-09 | Brass ball valve | 600 psi | full port | 3" | Dwyer

Brass ball valve, 600 psi, full port, 3"

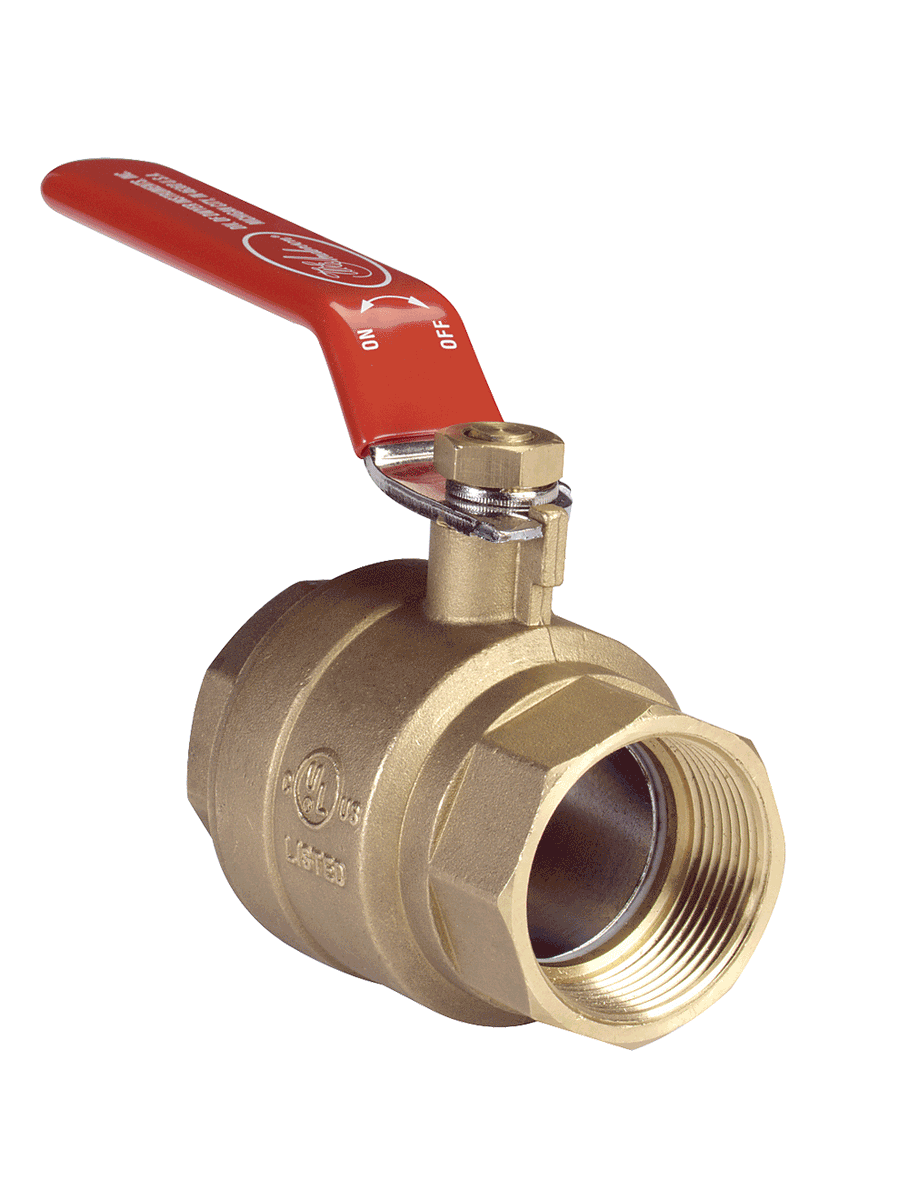

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DBV-09

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer DBV-09 Documents

Series DBV Catalog Page More Info

Overview

Details for DBV-09

See catalog product page for full listing

Brass ball valve | 600 psi | full port | 3"

Series DBV Brass Ball Valve

Full Port, Economical, 600 psi (41 bar)

Series DBV Brass Ball Valve is an economical hand lever ball valve ideal for commercial or general industrial use. The Series DBV is the ideal choice for a manual shut off valve, along with many other applications. Valve body, body cap and ball are made of a quality brass for great durability. Seats and stem packing are constructed of PTFE for long lasting service as well. Blowout-proof stem provides safety in the event of overpressure. Full port design allows for maximum Cv while still retaining minimal pressure drop.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Gas or liquid flow control

Low cost
Blowout-proof stem

Specifications

Series: DBV Brass Ball Valve
Category/Type: Valves
Type: Valves
Valve Type: Ball
Series: DBV Brass Ball Valve
Service: Gases and liquids compatible with wetted materials.
End Connections: 1/4 to 3" female NPT.
Pressure Limits: -29" Hg to 600 psi (-736 mm Hg to 41 bar) WOG.
Temperature Limit: -40 to 365ºF (-40 to 185ºC).
Wetted Materials: Body and Body Cap: Brass;Ball: Chrome plated brass;Stem: Brass;Seat and Packing: PTFE.
Other Materials: Body Gland and Stem Nut: Brass;Handle Cover: Rubber;Handle: Steel.
