DBV-04 | Brass ball valve | 600 psi | full port | 1" | Dwyer

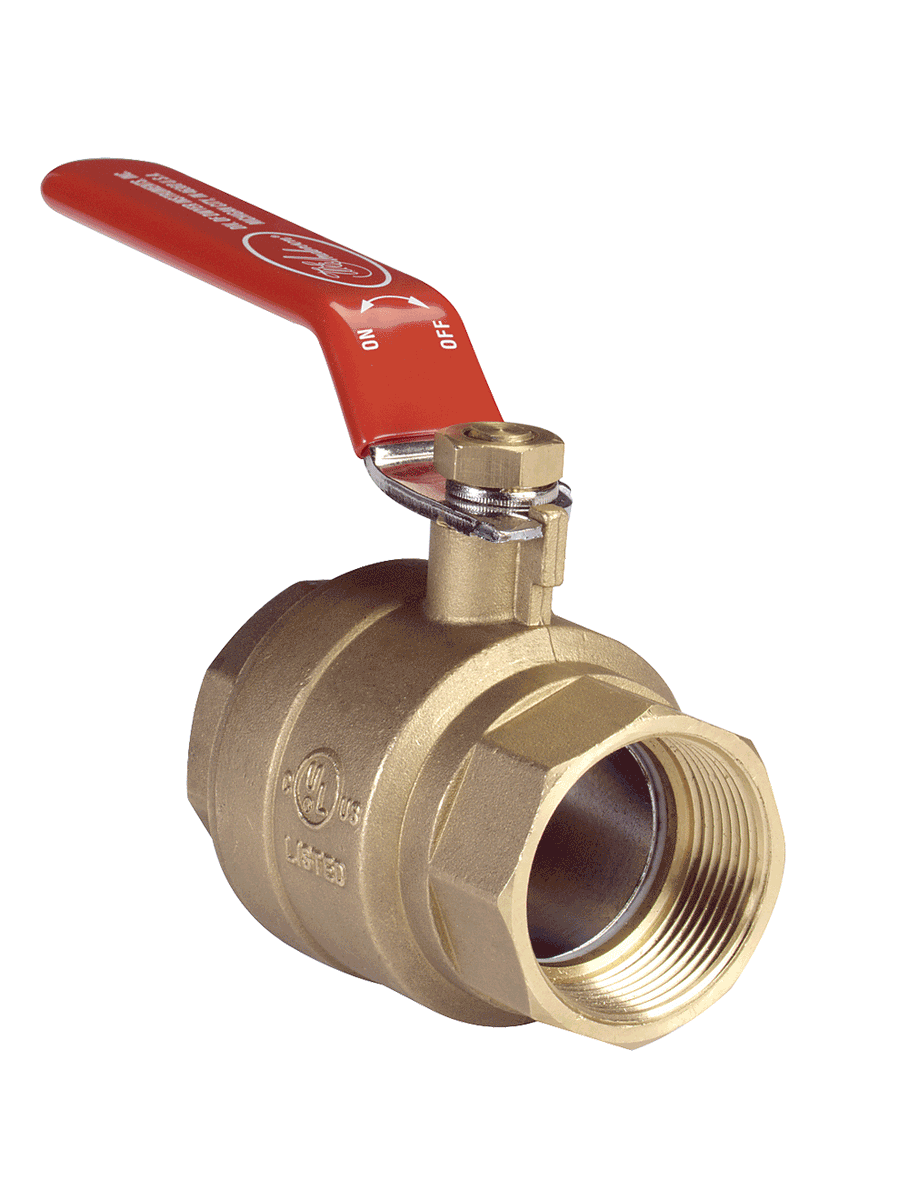

Brass ball valve, 600 psi, full port, 1"
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DBV-04
Documents and manuals
Dwyer DBV-04 Documents
Overview
Details for DBV-04
See catalog product page for full listing
Brass ball valve | 600 psi | full port | 1"
Series DBV Brass Ball Valve
Full Port, Economical, 600 psi (41 bar)
Series DBV Brass Ball Valve is an economical hand lever ball valve ideal for commercial or general industrial use. The Series DBV is the ideal choice for a manual shut off valve, along with many other applications. Valve body, body cap and ball are made of a quality brass for great durability. Seats and stem packing are constructed of PTFE for long lasting service as well. Blowout-proof stem provides safety in the event of overpressure. Full port design allows for maximum Cv while still retaining minimal pressure drop.
California Residents: Click Here for Proposition 65 WARNING.
Product Applications
- Gas or liquid flow control
- Low cost
- Blowout-proof stem
Specifications
- Series
- DBV Brass Ball Valve
- Category/Type
- Valves
- Type
- Valves
- Valve Type
- Ball
- Series
- DBV Brass Ball Valve
- Service
- Gases and liquids compatible with wetted materials.
- End Connections
- 1/4 to 3" female NPT.
- Pressure Limits
- -29" Hg to 600 psi (-736 mm Hg to 41 bar) WOG.
- Temperature Limit
- -40 to 365ºF (-40 to 185ºC).
- Wetted Materials
- Body and Body Cap: Brass;Ball: Chrome plated brass;Stem: Brass;Seat and Packing: PTFE.
- Other Materials
- Body Gland and Stem Nut: Brass;Handle Cover: Rubber;Handle: Steel.
