DBLM3140 | Mini-bin dry bulk level monitor | 220 VAC power supply. | Dwyer

Mini-bin dry bulk level monitor, 220 VAC power supply.

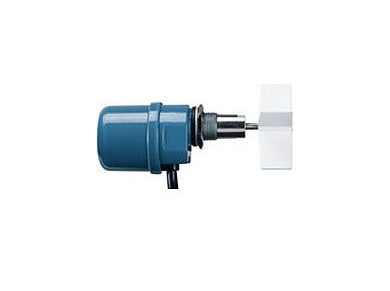

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DBLM3140

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer DBLM3140 Documents

IOM Series DBLM Catalog Page More Info

Overview

Details for DBLM3140

See catalog product page for full listing

Mini-bin dry bulk level monitor | 220 VAC power supply.

Series DBLM Mini-Bin Dry Bulk Level Monitor

Compact, 4-Vane Paddle

The Model DBLM Mini-Bin Dry Bulk Level Monitor provides reliable level sensingfor dry bulk solids where mounting space is limited. Model DBLM Mini-Bin operatesby using a 1 rpm synchronous motor to rotate a four vane, plastic paddle, and whenmaterial surrounds paddle and impedes rotation, the motor is de-energized andtriggers a SPDT snap switch. Mount the Mini-Bin with optional 1-1/4" to 3/4" reducerto replace standard size units.

Product Applications

Mining
Food and beverage
Grain silos
Hoppers

Compact, side mount control reports high, intermediate, and low level conditions, eliminating overflows, choking, clogs or empty vessels
Unaffected by the dielectric constant of the sensed material, making it superior to a capacitance level switch for applications where the dielectric constant is too low, where there is more than one material being used in one vessel, and when material moisture content can change

Specifications

Series: DBLM Mini-Bin Dry Bulk Level Monitor
Category/Type: Level
Type: Level Switches
Series: DBLM Mini-Bin Dry Bulk Level Monitor
Service: Dry bulk solids.
Wetted Materials: Polycarbonate paddle; stainless steel shaft; PTFE washer.
Temperature Limits: -4 to 140°F (-20 to 60°C).
Enclosure Rating: Polycarbonate; NEMA 1.
Electrical Rating: 3 A @ 250 VAC.
Power Requirements: 110 VAC; 50/60 Hz; 220 VAC optional; consult factory.
Power Consumption: 1.5 Watt.
Electrical Connections: 18 AWG; 12" leads wrapped in conduit.
Process Connection: 3/4" male NPT; optional flange and 1-1/4" to 3/4" reducer.
Mounting Orientation: Side mount.
Weight: 0.77 lb (350 g).
Agency Approvals: CE.
