DBLM3040 | Mini-bin dry bulk level monitor | 110 VAC power supply. | Dwyer
Mini-bin dry bulk level monitor, 110 VAC power supply.

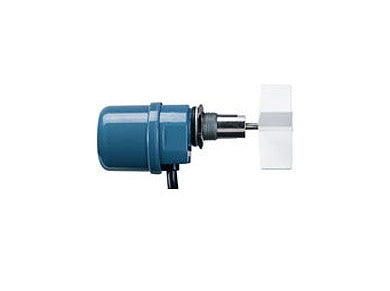

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DBLM3040
Documents and manuals
Dwyer DBLM3040 Documents
Overview
Details for DBLM3040
See catalog product page for full listing
Mini-bin dry bulk level monitor | 110 VAC power supply.
Series DBLM Mini-Bin Dry Bulk Level Monitor
Compact, 4-Vane Paddle
The Model DBLM Mini-Bin Dry Bulk Level Monitor provides reliable level sensingfor dry bulk solids where mounting space is limited. Model DBLM Mini-Bin operatesby using a 1 rpm synchronous motor to rotate a four vane, plastic paddle, and whenmaterial surrounds paddle and impedes rotation, the motor is de-energized andtriggers a SPDT snap switch. Mount the Mini-Bin with optional 1-1/4" to 3/4" reducerto replace standard size units.
Product Applications
- Mining
- Food and beverage
- Grain silos
- Hoppers
- Compact, side mount control reports high, intermediate, and low level conditions, eliminating overflows, choking, clogs or empty vessels
- Unaffected by the dielectric constant of the sensed material, making it superior to a capacitance level switch for applications where the dielectric constant is too low, where there is more than one material being used in one vessel, and when material moisture content can change
Specifications
- Series
- DBLM Mini-Bin Dry Bulk Level Monitor
- Category/Type
- Level
- Type
- Level Switches
- Series
- DBLM Mini-Bin Dry Bulk Level Monitor
- Service
- Dry bulk solids.
- Wetted Materials
- Polycarbonate paddle; stainless steel shaft; PTFE washer.
- Temperature Limits
- -4 to 140°F (-20 to 60°C).
- Enclosure Rating
- Polycarbonate; NEMA 1.
- Electrical Rating
- 3 A @ 250 VAC.
- Power Requirements
- 110 VAC; 50/60 Hz; 220 VAC optional; consult factory.
- Power Consumption
- 1.5 Watt.
- Electrical Connections
- 18 AWG; 12" leads wrapped in conduit.
- Process Connection
- 3/4" male NPT; optional flange and 1-1/4" to 3/4" reducer.
- Mounting Orientation
- Side mount.
- Weight
- 0.77 lb (350 g).
- Agency Approvals
- CE.
