CSG | Current/voltage calibrator. | Dwyer
Current/voltage calibrator.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to CSG
Documents and manuals
Dwyer CSG Documents
Overview
Details for CSG
See catalog product page for full listing
Current/voltage calibrator.

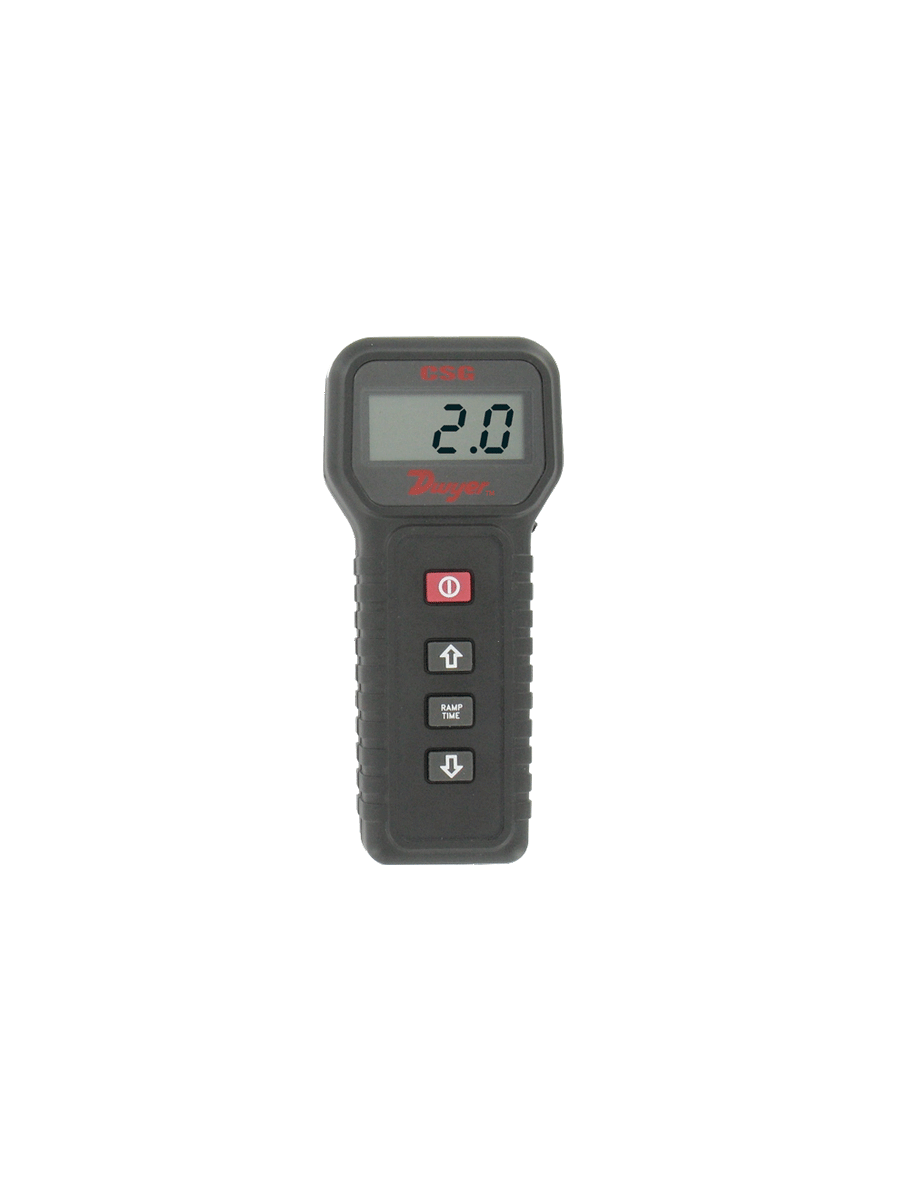

MODEL CSG CURRENT/VOLTAGE SIGNAL GENERATOR
Ramp Function, Large Numeric LCD Display
The pocket size CSG Current and Voltage Signal Generator is an ideal tool for troubleshooting transmitters, transducers, motors, and actuators. The unit generates a 0 to 10 VDC signal in increments of 1 volt or a 0 to 20 mA signal in increments of 1 mA. The Model CSG features a large LCD display with a blue backlight for use in dimly lit areas. The Model CSG continuously ramps the output using user selected minimum, maximum, and ramp interval timing parameters. Units are furnished with a battery, 120 VAC plug-in power supply, test leads with alligator clips, carrying case, and instruction manual.
- Large Backlit Display
- Timed Ramp Function
- Auto Power Off
- Process Display Configuration
- Transmitter Calibration
Specifications
- Power Requirements
- 9 V alkaline battery; included; user replaceable or 120 VAC (provided).
- Auto Power Off
- 1 to 20 min.
- Electrical Connections
- 6 ft (1.8 m) with alligator clips.
- Weight
- 6 oz (170 g).
