CHP-P | Pressure calibration pump. | Dwyer
Pressure calibration pump.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to CHP-P
Documents and manuals
Dwyer CHP-P Documents
Overview
Details for CHP-P
See catalog product page for full listing
Pressure calibration pump.

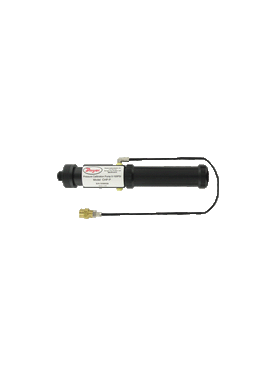

SERIES CHP PNEUMATIC HAND PUMP
Vacuum or Pressure, Ranges up to 100 psig
The Series CHP Pneumatic Hand Pump is the most dependable and rugged pump for applications up to 100 psi or 28.8" Hg Vacuum. The durable Acetal plastic and anodized aluminum construction prevents body heat transfer, resulting in drift-free, accurate readings. The Series CHP is equipped with oversized check valves in order to provide smooth and controlled operation. Dual O-Rings on all pistons ensure the pump to be leak-free. The unit includes a 2 foot long hose, 1/8" female NPT gage fitting, and 1/8" NPT pipe plug. An optional hose kit is available so that a tee is not required when connecting a sensor and a calibrator. The Series CHP is ideal for checking calibration of pressure or vacuum gages, switches, or transmitters.
Specifications
- Series
- CHP PNEUMATIC HAND PUMP
- Category/Type
- Test Equipment
- Type
- Calibration Pumps
- Series
- CHP PNEUMATIC HAND PUMP
- Output Range
- CHP-P: 0 to 100 psi; CHP-V: 0 to -28.8" Hg.
- Process Connection
- Two 1/8" female NPT ports; one with a removable plug.
- Materials
- Acetal plastic and anodized aluminum.
- Pressure Limit
- 150 psig (10.34 bar).
- Temperature Limit
- Not to exceed 150°F (65.6°C).
- Displaced Volume
- Approximately 4 in³.
- Dimensions
- 9" length x 1.5" diameter.
- Weight
- 1.5 lb (680 g).
