CDWP-10W-C5 | Industrial CO2 Transmitter | 0-10 | 000 PPM range | wall mount | with 5-8mm cable gland | Dwyer

Industrial CO2 Transmitter, 0-10, 000 PPM range, wall mount, with 5-8mm cable gland

Brand: DwyerSKU: CDWP-10W-C5

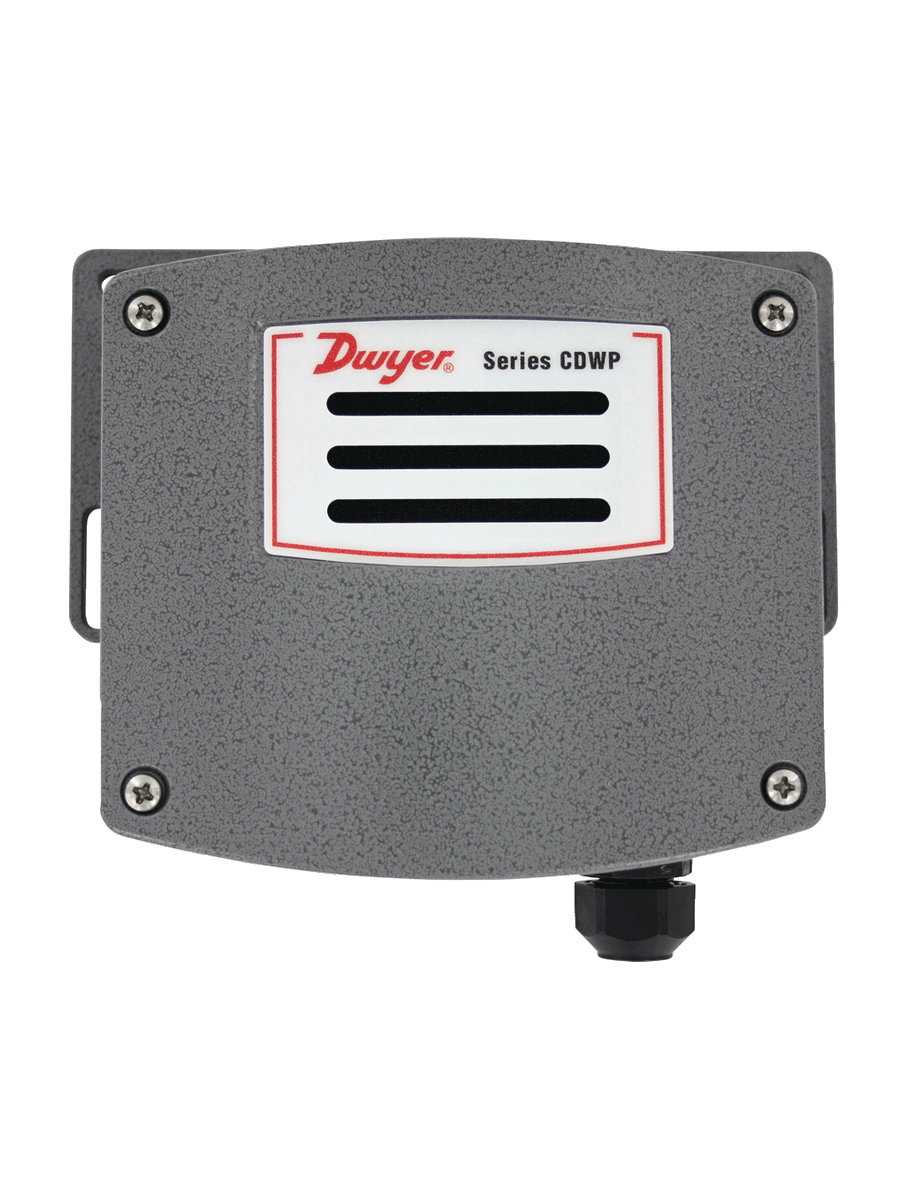

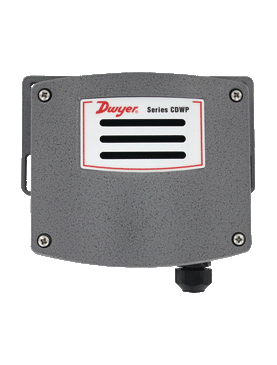

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CDWP-10W-C5

Jump to: Overview & Specifications Reviews

Overview Details for CDWP-10W-C5

See catalog product page for full listing

Industrial CO2 Transmitter | 0-10 | 000 PPM range | wall mount | with 5-8mm cable gland

SERIES CDWP CARBON DIOXIDE TRANSMITTER

NDIR CO2 Sensor with Universal Outputs in an Industrial Housing

The Series CDWP Carbon Dioxide Transmitter accurately monitors the CO2concentration in industrial and indoor environments to help achieve energy savings.For increased sensor life and accuracy, a single-beam dual-wavelength non-dispersiveinfrared (NDIR) sensor is used to eliminate light source aging effects. This sensingtechnology provides the highest level of accuracy compared to Automatic BaselineCorrection methods, which can unintentionally shift the calibration based on CO2levels and barometric pressure conditions.

Product Applications

Animal husbandry
Mechanical room
CO2 refrigeration monitoring
Greenhouses

No durability concerns with the rugged aluminum housing
No water ingress or corrosion concerns with the IP54 housing that withstands 168hour salt spray testing
Consistent CO2 measurements over time due to single-beam dual-wavelengthtechnology
Reduced downtime as the sensor has built in calibration ports eliminating the needto remove it from operation

Specifications

Series: CDWP CARBON DIOXIDE TRANSMITTER
Category/Type: Air Quality
Type: Carbon Dioxide Transmitters
Series: CDWP CARBON DIOXIDE TRANSMITTER
Sensor: Single beam; dual-wavelength NDIR.
Range: CO2: 0 to 2000; 0 to 5000; or 0 to 10000 ppm (depending on model).
Accuracy: CO2: ±40 ppm ±3% of reading.
Temperature Dependence: ±8 ppm/°C at 1100 ppm.
Non-Linearity: 16 ppm.
Pressure Dependence: 0.13% of reading per mm of Hg.
Response Time: 300 s (T63).
Temperature Limits: 32 to 122°F (0 to 50°C).
Humidity Limits: 10 to 95% RH (noncondensing).
Power Requirements: 16 to 35 VDC or 19 to 28 VAC.
Power Consumption: Average: 2 w; Peak: 3.75 w.
Output: Current: 4 to 20 mA (max. 500 Ω); Voltage: 0 to 5 VDC or 0 to 10 VDC (min. 500 Ω).
Enclosure Rating: IP54.
Mounting Orientation: Vertically; with electrical connections points downward.
Weight: 26.24 oz (744 g).
Agency Approvals: CE.
