CDWP-05W-C5 | Industrial CO2 Transmitter | 0-5000 PPM range | wall mount | with 5-8mm cable gland | Dwyer
Industrial CO2 Transmitter, 0-5000 PPM range, wall mount, with 5-8mm cable gland

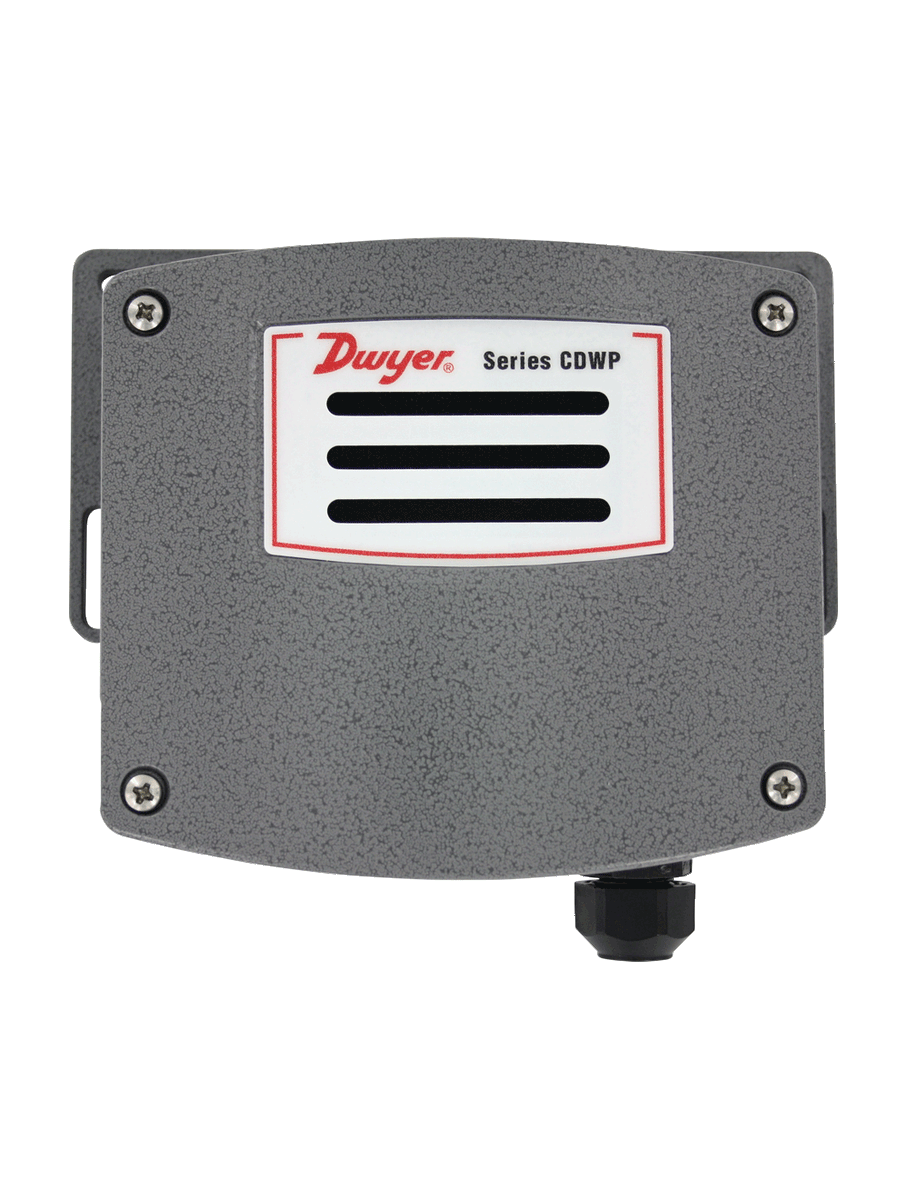

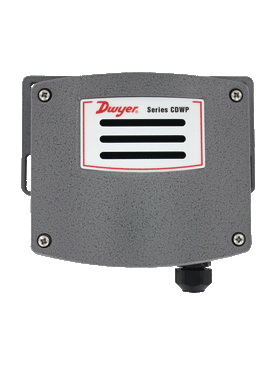

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to CDWP-05W-C5
Documents and manuals
Dwyer CDWP-05W-C5 Documents
Overview
Details for CDWP-05W-C5
See catalog product page for full listing
Industrial CO2 Transmitter | 0-5000 PPM range | wall mount | with 5-8mm cable gland
SERIES CDWP CARBON DIOXIDE TRANSMITTER
NDIR CO2 Sensor with Universal Outputs in an Industrial Housing
The Series CDWP Carbon Dioxide Transmitter accurately monitors the CO2concentration in industrial and indoor environments to help achieve energy savings.For increased sensor life and accuracy, a single-beam dual-wavelength non-dispersiveinfrared (NDIR) sensor is used to eliminate light source aging effects. This sensingtechnology provides the highest level of accuracy compared to Automatic BaselineCorrection methods, which can unintentionally shift the calibration based on CO2levels and barometric pressure conditions.
Product Applications
- Animal husbandry
- Mechanical room
- CO2 refrigeration monitoring
- Greenhouses
- No durability concerns with the rugged aluminum housing
- No water ingress or corrosion concerns with the IP54 housing that withstands 168hour salt spray testing
- Consistent CO2 measurements over time due to single-beam dual-wavelengthtechnology
- Reduced downtime as the sensor has built in calibration ports eliminating the needto remove it from operation
Specifications
- Series
- CDWP CARBON DIOXIDE TRANSMITTER
- Category/Type
- Air Quality
- Type
- Carbon Dioxide Transmitters
- Series
- CDWP CARBON DIOXIDE TRANSMITTER
- Sensor
- Single beam; dual-wavelength NDIR.
- Range
- CO2: 0 to 2000; 0 to 5000; or 0 to 10000 ppm (depending on model).
- Accuracy
- CO2: ±40 ppm ±3% of reading.
- Temperature Dependence
- ±8 ppm/°C at 1100 ppm.
- Non-Linearity
- 16 ppm.
- Pressure Dependence
- 0.13% of reading per mm of Hg.
- Response Time
- 300 s (T63).
- Temperature Limits
- 32 to 122°F (0 to 50°C).
- Humidity Limits
- 10 to 95% RH (noncondensing).
- Power Requirements
- 16 to 35 VDC or 19 to 28 VAC.
- Power Consumption
- Average: 2 w; Peak: 3.75 w.
- Output
- Current: 4 to 20 mA (max. 500 Ω); Voltage: 0 to 5 VDC or 0 to 10 VDC (min. 500 Ω).
- Enclosure Rating
- IP54.
- Mounting Orientation
- Vertically; with electrical connections points downward.
- Weight
- 26.24 oz (744 g).
- Agency Approvals
- CE.
