CDTV-2D4E4 | Duct VOC & CO2 transmitter | universal analog outputs | 2000PPM CO2 | PT1K Ohm RTD temperature sensor | Dwyer

Duct VOC & CO2 transmitter, universal analog outputs, 2000PPM CO2, PT1K Ohm RTD temperature sensor

Brand: DwyerSKU: CDTV-2D4E4

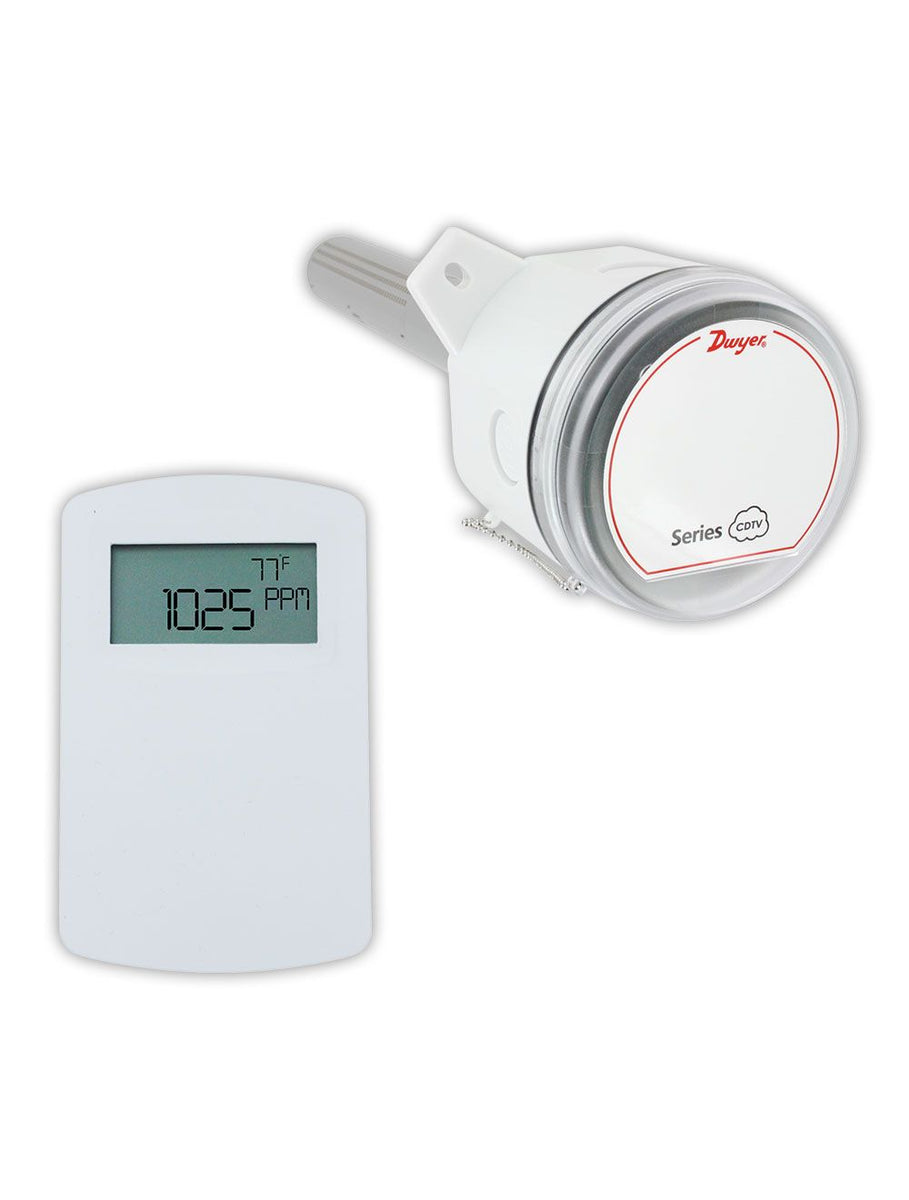

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CDTV-2D4E4

Jump to: Overview & Specifications Reviews

Overview Details for CDTV-2D4E4

See catalog product page for full listing

Duct VOC & CO2 transmitter | universal analog outputs | 2000PPM CO2 | PT1K Ohm RTD temperature sensor

SERIES CDTV CARBON DIOXIDE/VOLATILE ORGANIC COMPOUND TRANSMITTERS

Simultaneously Outputs Both CO2 / VOC

The Series CDTV Carbon Dioxide/Volatile Organic Compound (VOC) Transmitter reduces energy cost in buildings by lowering the amount of conditioned air based on the occupancy of the space. By sensing both CO2 and VOC, the transmitter can detect fumes that may need to be exhausted during lower occupancy periods.

For models with resistive thermistors or RTD outputs, please click here for temperature to resistance lookup tables.

Product Applications

HVAC applications in hospitals, schools, and commercial buildings
Demand control ventilation
Odor control
Waiting rooms or other spaces that may be occupied 24 hours a day

Combination VOC and CO2 outputs reduce labor and material costs
Single beam dual wavelength NDIR CO2 sensor allows for use in spaces that maybe occupied 24 hours a day
VOC output is correlated to be equivalent to CO2 measurements
Ventilate using ASHRE’s occupancy-based VRP Algorithm

Specifications

Series: CDTV CARBON DIOXIDE/VOLATILE ORGANIC COMPOUND TRANSMITTERS
Category/Type: Air Quality
Type: Carbon Dioxide Transmitters
Series: CDTV CARBON DIOXIDE/VOLATILE ORGANIC COMPOUND TRANSMITTERS
Range: CO2: 0 to 2000 or 0 to 5000 ppm (depending on model); VOC: 0 to 2000 ppm CO2 equivalent.
Accuracy: CO2: ±40 ppm ±3% of reading.
Temperature Dependence: ±8 ppm / °C at 1100 ppm.
Non-Linearity: CO2: 16 ppm.
Pressure Dependence: CO2: 0.13% of reading per mm of Hg.
Response Time: CO2: 2 minutes for 99% step change; VOC: 5 minutes.
Temperature Limits: 32 to 122°F (0 to 50°C).
Duct Air Velocity Range: 0-4000 FPM (20.32 m/s).
Power Requirements: 16 to 35 VDC / 19 to 28 VAC.
Power Consumption: Average: 2 watts; Peak: 3.75 watts.
Sensor: CO2: Single-beam; dual-wavelength NDIR; VOC: MEMS metal oxidesemiconductor.
Output: Current: 0 to 20 mA; 4 to 20 mA; 0 to 10 mA; or 2 to 10 mA (depending onselection jumper; max 500 O); Voltage: 0 to 10 VDC; 2 to 10 VDC; 0 to 5 VDC; or 1to 5 VDC (depending on selection jumper; min 500 O); Relay: SPST NO 2A @ 30VDC.
Weight: 5.6 oz (158.8 g).
Enclosure Rating: Duct mount: NEMA 4X (IP66) for housing only; Wall mount: IP20.
Agency Approvals: CE.
