CDT-2D44 | Carbon Dioxide Transmitter | duct mount | 2000 ppm CO2 range | 4 to 20 mA / 0 to (5 or 10) VDC CO2 output & temperature output. | Dwyer

Carbon Dioxide Transmitter, duct mount, 2000 ppm CO2 range, 4 to 20 mA / 0 to (5 or 10) VDC CO2 output & temperature output.

Brand: DwyerSKU: CDT-2D44

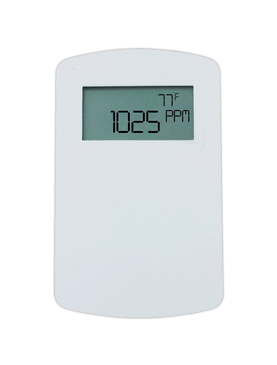

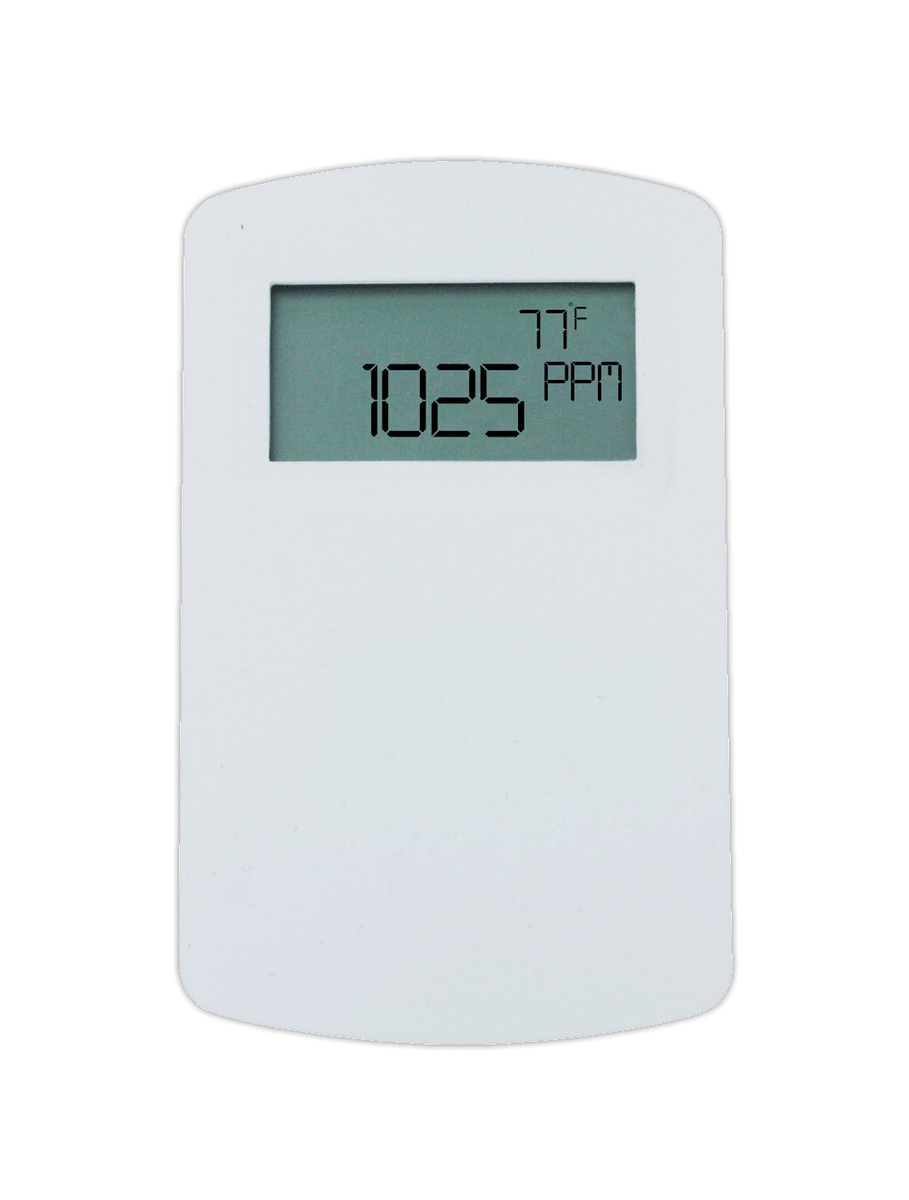

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CDT-2D44

Jump to: Overview & Specifications Reviews

Overview Details for CDT-2D44

See catalog product page for full listing

Carbon Dioxide Transmitter | duct mount | 2000 ppm CO2 range | 4 to 20 mA / 0 to (5 or 10) VDC CO2 output & temperature output.

SERIES CDT CARBON DIOXIDE/TEMPERATURE TRANSMITTER

NDIR CO2 Sensor, Universal Outputs, Optional Relay

The Series CDT Carbon Dioxide and Temperature Transmitters accurately monitorthe CO2 concentration and temperature in indoor environments to help achieve energysavings. In order to achieve a higher level of accuracy, the Series CDT includesbarometric pressure adjustment. The CO 2 universal output allows users to select thetransmitter output to be 4-20 mA, 0-5 VDC, or 0-10 VDC to work with virtually anybuilding management controller.
For applications that require visual indication, the wall mount configurations of theSeries CDT can be ordered with an integral LCD display. To prevent tampering, theaction of the buttons can be locked out using an internal dip switch selection.

*For buildings occupied 24 hours per day, it is recommended that calibration be verified every 6 to 12 months depending on application.

For models with resistive thermistors or RTD outputs, please click here for temperature to resistance lookup tables.

Product Applications

Demand control ventilation in schools, office buildings, hospitals, and other indoorenvironments
LEED® certification

Minimize inventory and save time by combining CO 2 and temperaturemeasurements into one transmitter
Requires minimal maintenance with Automatic Baseline Correction (ABC) to accountfor sensor drif
Reduce operation costs using a low energy, reliable, and repeatable CO 2 sensor
Simplify installation with backplate electrical connection

Specifications

Series: CDT CARBON DIOXIDE/TEMPERATURE TRANSMITTER
Category/Type: Air Quality
Type: Carbon Dioxide Transmitters
Series: CDT CARBON DIOXIDE/TEMPERATURE TRANSMITTER
Sensor: NDIR; 15 year life expectancy.
Range: CO2: 0 to 2000 or 0 to 5000 ppm (depending on model); Temperature: 32 to 122°F (0 to 50°C).
Accuracy*: CO2: ±40 PPM + 3% of reading (2000 PPM CO2); ± 50 PPM + 5% of reading (5000 PPM CO2); Temperature: ±1°C @ 25°C.
Response Time: 2 min for 99% step change.
Temperature Limits: 32 to 122°F (0 to 50°C).
Humidity Limits: 0 to 85% (non-condensing).
Power Requirements: 16 to 35 VDC or 19 to 28 VAC.
Power Consumption: Average: 2 w; Peak: 3.75 w.
Output: Current: 4-20 mA (max. 500 Ω); Voltage: 0-5 VDC or 0-10 VDC (min. 500Ω); Relay: SPST NO rated 2A @ 30 VDC; RTD or thermistor per r-t curves on page4 (depending on model).Relay: SPST NO rated 2 A @ 30 VDC; RTD or thermistor per r-t curves on page 4 in catalog (depending on model).
Compliance: CE.
