CD-150 | Low cost diaphragm pressure switch | adj. range 10-150 psig (.69-10.3 bar) | min. deadband 14 psig (.97 bar) | max. deadband 24 psig (1.7 bar). | Dwyer

Low cost diaphragm pressure switch, adj. range 10-150 psig (.69-10.3 bar), min. deadband 14 psig (.97 bar), max. deadband 24 psig (1.7 bar).

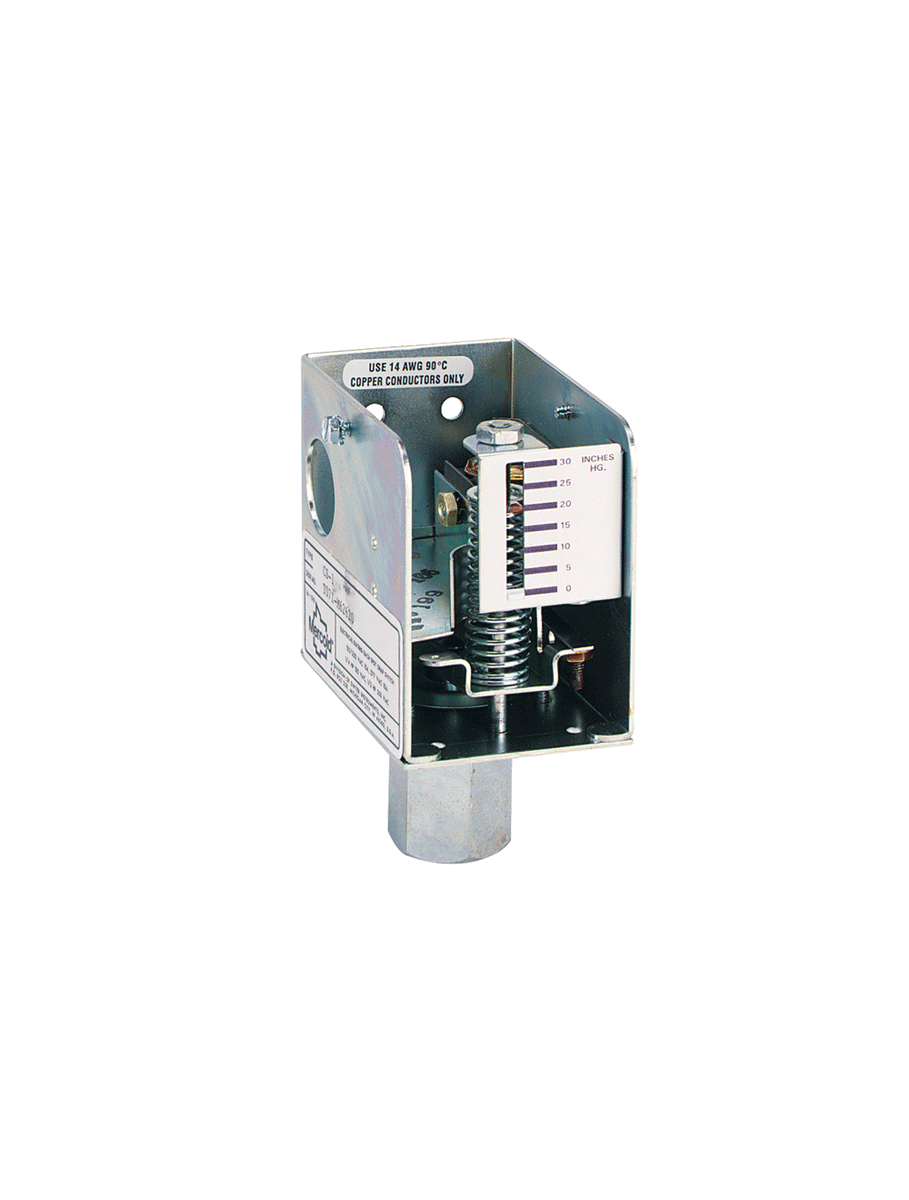

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CD-150

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer CD-150 Documents

CS/CD Series CS & CD Catalog Page More Info

Overview

Details for CD-150

See catalog product page for full listing

Low cost diaphragm pressure switch | adj. range 10-150 psig (.69-10.3 bar) | min. deadband 14 psig (.97 bar) | max. deadband 24 psig (1.7 bar).

SERIES CS & CD DIAPHRAGM PRESSURE SWITCH

Visible Set Points, Fixed or Adjustable Deadband

Series CS & CD Diaphragm Pressure Switches combine advanced design and precision construction in a small size. Unit is ideal for instrument panels, small compressors and general industrial applications. Visible set point and easy to wire SPDT snap switch reduce installation time. Operates in any position and is vibration resistant.

Specifications

Series: CS & CD DIAPHRAGM PRESSURE SWITCH
Category/Type: Pressure
Type: Single Pressure
Series: CS & CD DIAPHRAGM PRESSURE SWITCH
Wetted Materials: Nylon reinforced Buna-N and steel.
Temperature Limits: -30 to 150°F (-35 to 66°C).
Pressure Limit: 30 psig (2.1 bar) for ranges 1; 3; and 10. 50 psig (3.5 bar) for range 30. 175 psig (12.1 bar) for range 150.
Enclosure Rating: General purpose.
Switch Type: SPDT snap switch.
Electrical Rating: 15 A @ 120 VAC; 8 A @ 240 VAC.
Electrical Connections: Screw terminal.
Conduit Connection: 1/2" hole for conduit hub.
Process Connection: 1/4" female NPT.
Mounting Orientation: Any position.
Set Point Adjustment: Internal screw.
Weight: .5 lb (0.23 kg).
Deadband: See Ordering page.
