CCT50-200 | Current transformer | 100/150/200 A input | 4-20 mA output | solid core. | Dwyer

Current transformer, 100/150/200 A input, 4-20 mA output, solid core.

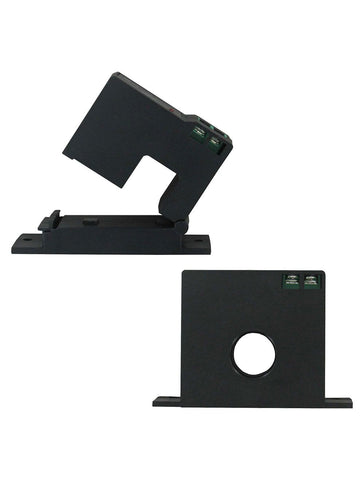

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CCT50-200

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer CCT50-200 Documents

Instruction Manual Series CCT40/50 Catalog Page More Info

Overview

Details for CCT50-200

See catalog product page for full listing

Current transformer | 100/150/200 A input | 4-20 mA output | solid core.

Series CCT40/50 Current Transformer

Solid or Split Core, Field Selectable Range

The Series CCT40/50 Current Transformers are a low cost alternative for measuring power and monitoring the operation of fans, pumps, or other equipment. For use on existing installations, split core models can be installed without disconnecting cables. Each model offers three jumper selectable ranges and a choice of three different outputs.

Product Applications

BAS
HVAC

Integral mounting flange for quick installation
Solid core or split core configurations
Jumper selectable range

Specifications

Series: CCT40/50 Current Transformer
Amperage Range: Field selectable; up to 200 A (depending on model).
Output: 0 to 5 V; 0 to 10 V; or 4 to 20 mA (depending on model).
Power Requirements: Self powered or 15 to 42 VDC loop powered (depending on model).
Accuracy: 1%.
Temperature Limits: -22 to 158ºF (-30 to 70ºC).
Humidity Limits: 0 to 95% (non-condensing).
Response Time: 250 ms to 90%.
Isolation Voltage: 2000 V.
Frequency: 10 to 400 Hz.
Enclosure Rating: UL; 94 V-O flammability rated; ABS plastic housing.
Approvals: CE; cUL; UL.
