CCS-111100 | Current switch | solid core | adjustable | normally open | red/green LED | min. set point 1.00. | Dwyer

Current switch, solid core, adjustable, normally open, red/green LED, min. set point 1.00.

Brand: DwyerSKU: CCS-111100

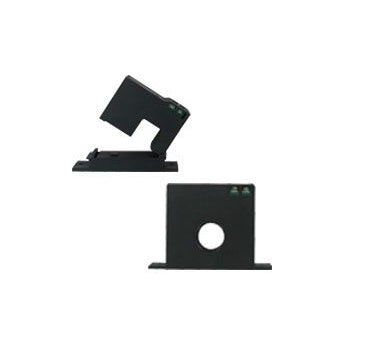

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CCS-111100

Jump to: Overview & Specifications Reviews

Overview Details for CCS-111100

See catalog product page for full listing

Series CCS Current Switch

Solid or Split Core, LED Visual Confirmation, Fixed or Adjustable Set Point

The Series CCS Current Switches are ideal for monitoring the operating status of fans, pumps, and motors. These self-powered switches can be hung or tied directly to cables or wires. For use on existing installations, split core models can be installed without disconnecting cables. LED indicators provide a visual confirmation that the current is flowing through the core. Both fixed and adjustable set points are available. The adjustable models utilize a potentiometer to easily adjust the set point.

Product Applications

Proof of installation/flow
Monitoring
Lighting and heating circuits
Conveyors

Integral mounting flange for quick installation
Solid core or split core configurations
LED Indicator
Fixed and adjustable set points

Specifications

Series: CCS Current Switch
Amperage Range: 0 to 200 A AC.
Maximum Switch Rating: For dry contact models: 0.3 A @ 135 VAC/DC; For non-dry contact models: 1 A @ 240 VAC.
Power Requirements: None; self-powered.
Temperature Limits: -22 to 158ºF (-30 to 70ºC).
Humidity Limits: 0 to 95% (non-condensing).
Isolation Voltage: 2000 V.
Frequency: 40 to 400 Hz.
Enclosure Rating: UL; 94 V-O flammability rated; ABS plastic housing.
Approvals: CE; cULus.
