BV2M100 | 1/4" two-piece stainless steel ball valve. | Dwyer

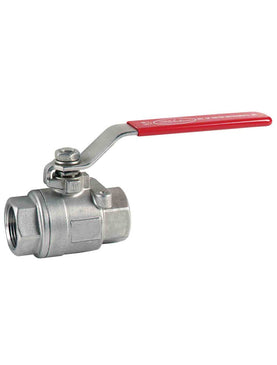

1/4" two-piece stainless steel ball valve.

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BV2M100

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer BV2M100 Documents

Instruction Manual Series BV2M Catalog Page More Info

Overview

Details for BV2M100

See catalog product page for full listing

1/4" two-piece stainless steel ball valve.

SERIES BV2M TWO-PIECE STAINLESS STEEL BALL VALVE

Full Port, 1000 psig (69 bar)

The Series BV2M Two-Piece Stainless Steel Ball Valve is the economical choicefor high quality, SS ball valves for use in chemical, petrochemical, pulp and paperand general applications. The Series BV2M body and endcaps are constructed ofinvestment cast SS, while stem is 316 SS. Seats and body seals are 15% glassreinforced PTFE providing broad media compatibility and bubble tight shutoff to 1000psig (69 bar). Internally loaded, blowout-proof stem provides safety in the event ofoverpressure. Full port design allows for maximum Cv with minimal pressure drop.Integral actuator mounting pads allows for ease of automation.

Product Applications

Gas or liquid flow control
Chemical, petrochemical, pulp and paper, and other general applications

Wide chemical compatibility
Bubble tight shut off to 1000 psig
Blowout-proof stem
Actuator mounting pad

Specifications

Series: BV2M TWO-PIECE STAINLESS STEEL BALL VALVE
Category/Type: Valves
Type: Valves
Valve Type: Ball
Series: BV2M TWO-PIECE STAINLESS STEEL BALL VALVE
End Connections: Female NPT.
Pressure Limits: 1000 psi (69 bar) WOG; 150 psi (10.3 bar) SWP.
Wetted Materials: Body; Ball; End Cap: CF8M stainless steel; Stem: 316 stainless steel; Seat; Thrust Washer: RTFE; End Gasket; Stem Packing: PTFE.
Temperature Limits: -20 to 450°F (-29 to 232°C).
Agency Approvals: Meets the technicalrequirements of EU Directive 2011/65/EU (RoHS II).
