BTT-N00-4 | North American wall mount temperature transmitter with 0 to 10 VDC output | Dwyer
North American wall mount temperature transmitter with 0 to 10 VDC output

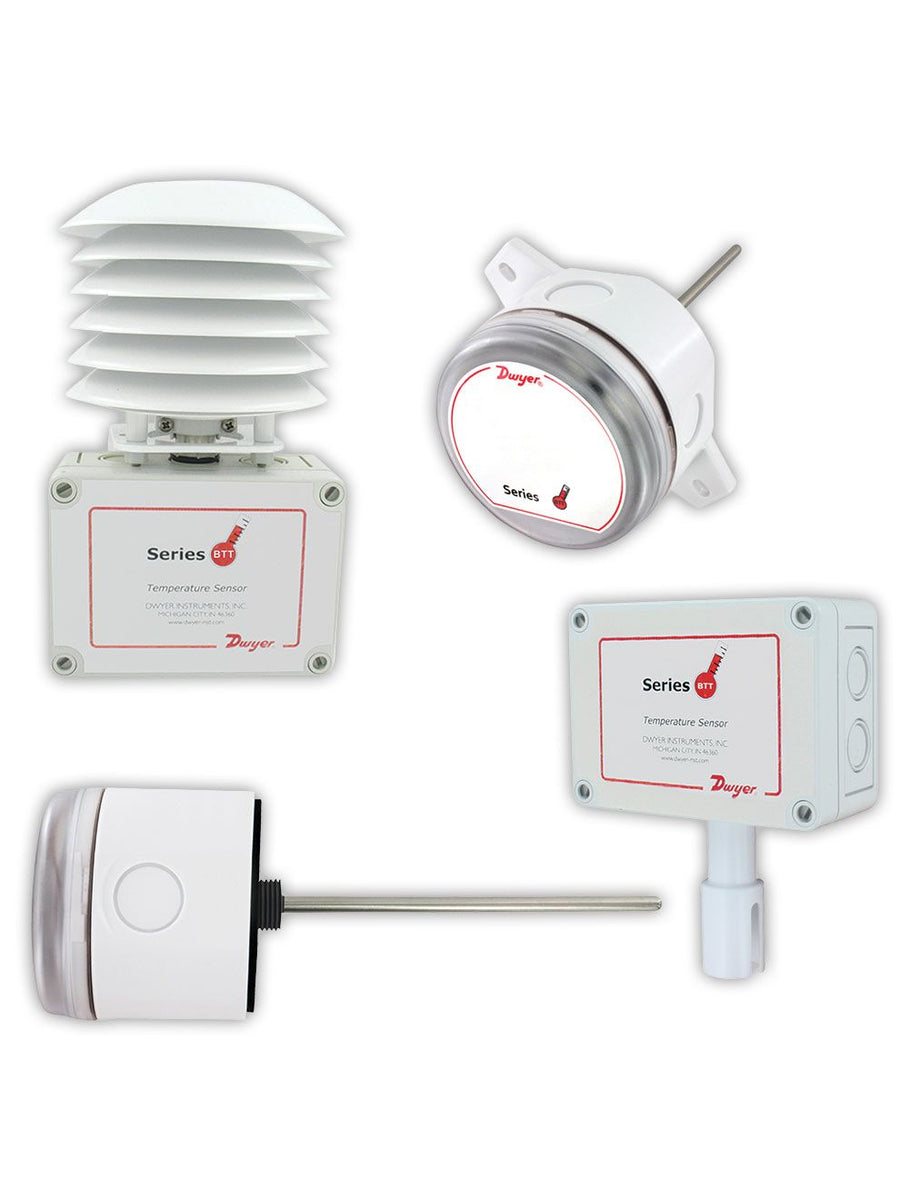

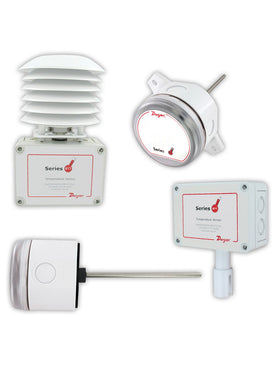

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BTT-N00-4
Documents and manuals
Dwyer BTT-N00-4 Documents
Overview
Details for BTT-N00-4
See catalog product page for full listing
North American wall mount temperature transmitter with 0 to 10 VDC output
Series BTT Temperature Transmitters
Current or Voltage Output; NEMA 4X Enclosures
The Series BTT Temperature Transmitters offer transmitter output signals with the same form and fit as our popular TE thermistor and RTD sensors for building HVAC applications. Thermowells are required when using immersion models in liquid applications.
NIST CALIBRATION available in Product Configurator.
The wall mount models can also be seen on the Series BTT-E/N page.
Product Applications
- Building automation system temperature monitoring
- Duct, immersion, and outside air models available
- Radiation shield available for mounting in direct sunlight
- Transmitter output allows for longer wire runs than standard thermistor sensors
Specifications
- Series
- BTT Temperature Transmitters
- Category/Type
- Temperature
- Type
- Transmitters
- Series
- BTT Temperature Transmitters
- Temperature Sensor
- Pt1000 RTD.
- Range
- -40 to 140°F (-40 to 60°C).
- Temperature Limits
- Operating: -40 to 302°F (-40 to 150°C).
- Accuracy
- ±0.5°C @ 25°C.
- Thermal Effect
- ±0.01%/°C.
- Response Time
- 100 ms.
- Wetted Materials
- All models: 304 SS (probe); polycarbonate (housing);Duct and immersion models: Neoprene (gasket);Outside air models: Nylon (insert); silicone (O-ring).
- Process Connection
- 1/2" NPT (immersion models only).
- Electrical Connection
- Removable terminal block; knocks out for conduit fitting.
- Conduit Connection
- 1/2" NPT.
- Probe Lengths
- 2.5 to 18" (depending on configuration).
- Power Requirements
- 13 to 36 VDC for current models; 13 to 36 VDC or 16 to 28 VAC for voltage models.
- Output Signal
- 4 to 20 mA or 0 to 10 VDC (depending on model).
- Enclosure Rating
- NEMA 4X (IP66) (immersions models require thermowell).
- Weight
- 5.11 oz; 145 g (duct/immersion); 8.4 oz (238 g) (OSA without radiationshield); 1 lb 7.4 oz (663.4 g) (OSA with radiation shield).
- Agency Approvals
- CE.
