BTT-D18-1 | Duct Mount Temperature Transmitter with 4 to 20 mA output | 18" probe | Dwyer

Duct Mount Temperature Transmitter with 4 to 20 mA output, 18" probe

Brand: DwyerSKU: BTT-D18-1

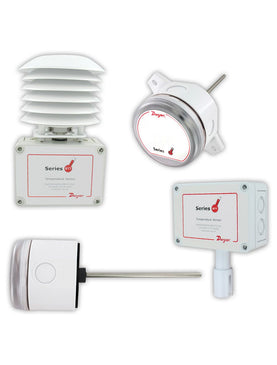

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BTT-D18-1

Jump to: Overview & Specifications Reviews

Overview Details for BTT-D18-1

See catalog product page for full listing

Duct Mount Temperature Transmitter with 4 to 20 mA output | 18" probe

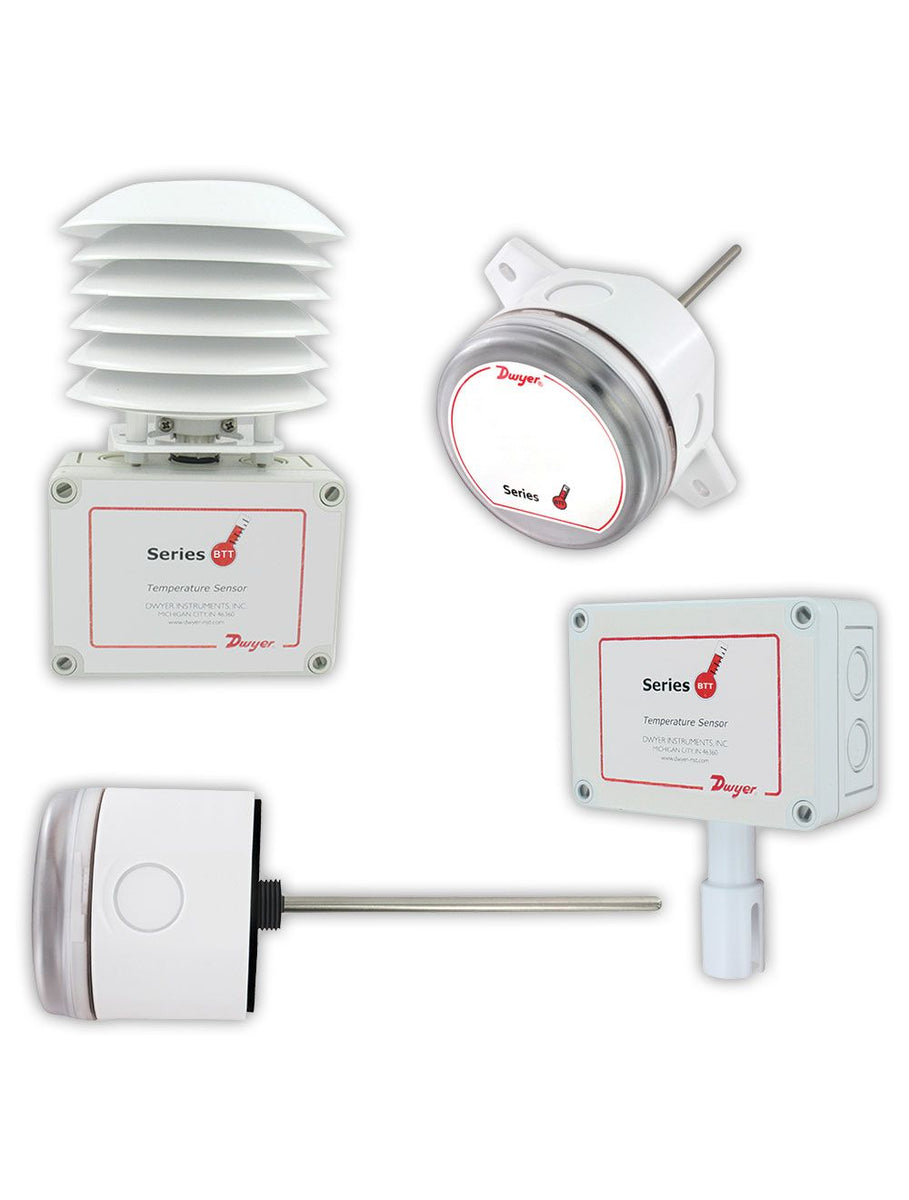

Series BTT Temperature Transmitters

Current or Voltage Output; NEMA 4X Enclosures

The Series BTT Temperature Transmitters offer transmitter output signals with the same form and fit as our popular TE thermistor and RTD sensors for building HVAC applications. Thermowells are required when using immersion models in liquid applications.

NIST CALIBRATION available in Product Configurator.

The wall mount models can also be seen on the Series BTT-E/N page.

Product Applications

Building automation system temperature monitoring

Duct, immersion, and outside air models available
Radiation shield available for mounting in direct sunlight
Transmitter output allows for longer wire runs than standard thermistor sensors

Specifications

Series: BTT Temperature Transmitters
Category/Type: Temperature
Type: Transmitters
Series: BTT Temperature Transmitters
Temperature Sensor: Pt1000 RTD.
Range: -40 to 140°F (-40 to 60°C).
Temperature Limits: Operating: -40 to 302°F (-40 to 150°C).
Accuracy: ±0.5°C @ 25°C.
Thermal Effect: ±0.01%/°C.
Response Time: 100 ms.
Wetted Materials: All models: 304 SS (probe); polycarbonate (housing);Duct and immersion models: Neoprene (gasket);Outside air models: Nylon (insert); silicone (O-ring).
Process Connection: 1/2" NPT (immersion models only).
Electrical Connection: Removable terminal block; knocks out for conduit fitting.
Conduit Connection: 1/2" NPT.
Probe Lengths: 2.5 to 18" (depending on configuration).
Power Requirements: 13 to 36 VDC for current models; 13 to 36 VDC or 16 to 28 VAC for voltage models.
Output Signal: 4 to 20 mA or 0 to 10 VDC (depending on model).
Enclosure Rating: NEMA 4X (IP66) (immersions models require thermowell).
Weight: 5.11 oz; 145 g (duct/immersion); 8.4 oz (238 g) (OSA without radiationshield); 1 lb 7.4 oz (663.4 g) (OSA with radiation shield).
Agency Approvals: CE.
