BTK2 | Backflow prevention test kitKit Includes: 3 valve assembly | Dwyer
Backflow prevention test kitKit Includes: 3 valve assembly, 4.5" differential pressure gage (attached), 1.5" in-line pressure gage (attached), three 3' hoses, three sets of brass adapter fittings, bungee cord, plumbers tape, polyethylene carrying case.
Documents and manuals
Dwyer BTK2 Documents
Overview
Details for BTK2
Backflow prevention test kitKit Includes: 3 valve assembly
MODEL BTK2 BACKFLOW PREVENTION TEST KIT
The Model BTK2 Backflow Prevention Test Kit is capable of testing hydronic systemswith test procedures recommended by ASSE, AWWA, CSA, FCCC, HR-USV, andNEWWA. The BTK2 is comprised of three valves and is specially designed for testingbackflow prevention assemblies. The tests can be completed in almost any area by mountingthe unit with the included high performance elastic cord. PTFE-lined brass ball valvessimplify the adjustment procedure. The large, easy-to-grip needle valve allows for quickadjustment.

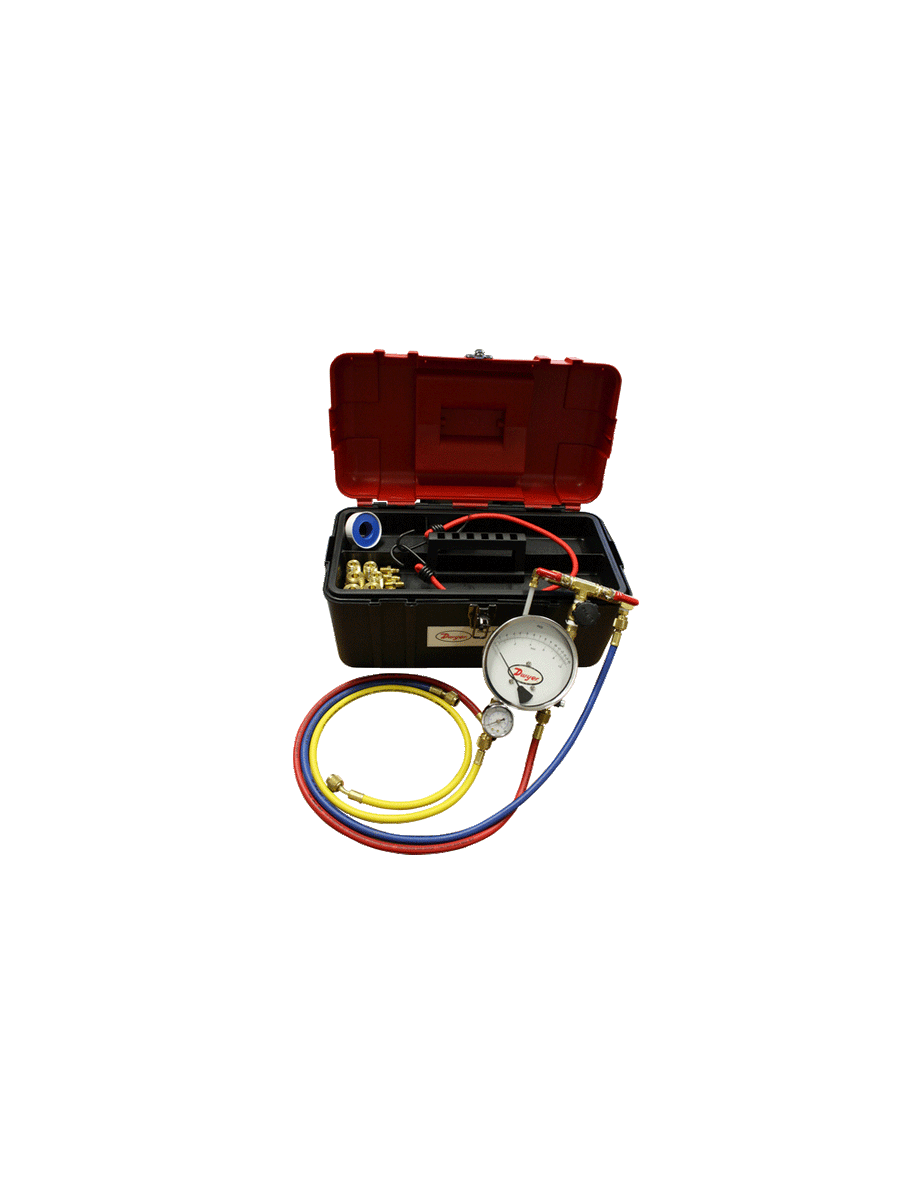

Kit Includes: 3 valve assembly, 4.5" differential pressure gage (attached), 1.5" in-line pressure gage (attached), three 3' hoses, three sets of brass adapter fittings, bungee cord, plumbers tape, polyethylene carrying case.
Specifications
- Temperature Limits
- 210°F (99°C).
- Range
- 4.5" gage: 0 to 15 psid (0 to 1 bar); 1.5" gage: 0 to 200 psi (0 to 14 bar).
- Accuracy
- 4.5" gage: ±2% FS; 1.5" gage: ±3-2-3% FS.
- Wetted Parts
- 4.5" Gage: Anodized aluminum;4.5" Gage Diaphragm: Buna-N;1.5" Gage: Brass;Ball Valves: PTFE lined brass;Needle Valve: Brass;Hose Couplings: Brass;Adaptors: Brass;Hose: Rubber.
- Size
- Case: 9" H x 16" W x 9" D (228 mm H x 406 mm W x 228 mm D).
- Weight
- 8.9 lb (4 kg).
