Documents: BTB2405D

Series BT Catalog Page More Info

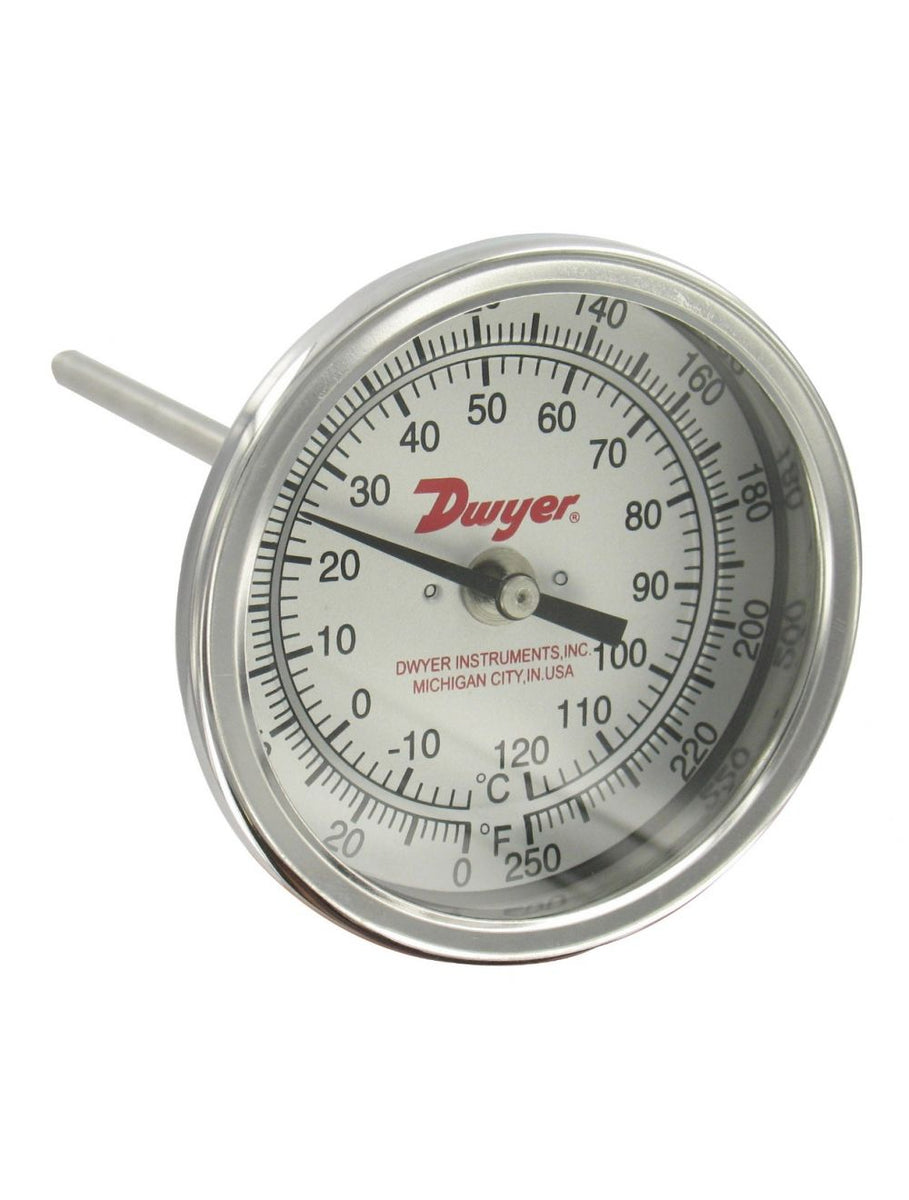

BTB2405D | Bimetal thermometer | 2" dial | 4" stem length | range 0/250°F (-20/120°C) | 2°F (2°C) div. | Dwyer

Bimetal thermometer, 2" dial, 4" stem length, range 0/250°F (-20/120°C), 2°F (2°C) div.

Brand: DwyerSKU: BTB2405D

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BTB2405D

Jump to: Overview & Specifications Reviews

Overview Details for BTB2405D

See catalog product page for full listing

Bimetal thermometer | 2" dial | 4" stem length | range 0/250°F (-20/120°C) | 2°F (2°C) div.

SERIES BT BIMETAL THERMOMETER

2", 3" or 5" Dial, Dual Scale, ±1% FS Accuracy, External Reset

The Series BT Bimetal Thermometers offer accurate, reliable service even in the toughest environments. These corrosion resistant units are constructed from stainless steel and are hermetically sealed to prevent crystal fogging. The bimetal element directly drives pointer, eliminating gears and linkage. An external reset screw allows field calibration and easy-to-read aluminum dial minimizes parallax error. Choose back connection, lower connection or adjustable angle for easy viewing and installation. Adjustable models can be rotated a full 360° and tilted over a 180° arc. NOTE: When using in pressurized applications, use a suitable thermowell.

Product Applications

Chiller or boiler water temperature monitoring
Treatment plant temperature monitoring

Hermetically sealed
Adjustable dial position models

Specifications

Series: BT BIMETAL THERMOMETER
Category/Type: Temperature
Type: Thermometers
Series: BT BIMETAL THERMOMETER
Wetted Materials: 304 SS.
Housing Material: Series 300 SS.
Lens: Glass.
Accuracy: ±1% FS.
Response Time: ≤40 s.
Temperature Limits: Head: 200°F (93°C); Stem: Not to exceed 50% over-range or 1000°F (538°C) or 800°F (427°C) continuously.
Process Connection: 1/4" NPT on 2" dial size; 1/2" NPT on 3" or 5" dial size.
Stem Diameter: 1/4" O.D.
Immersion Depth: Minimum 2" in liquids; 4" in gas.
