BPS-015 | Regulated power supply | 24 VAC to 24 VDC | with adjustable output of 1.5 to 27 VDC. | Dwyer

Regulated power supply, 24 VAC to 24 VDC, with adjustable output of 1.5 to 27 VDC.

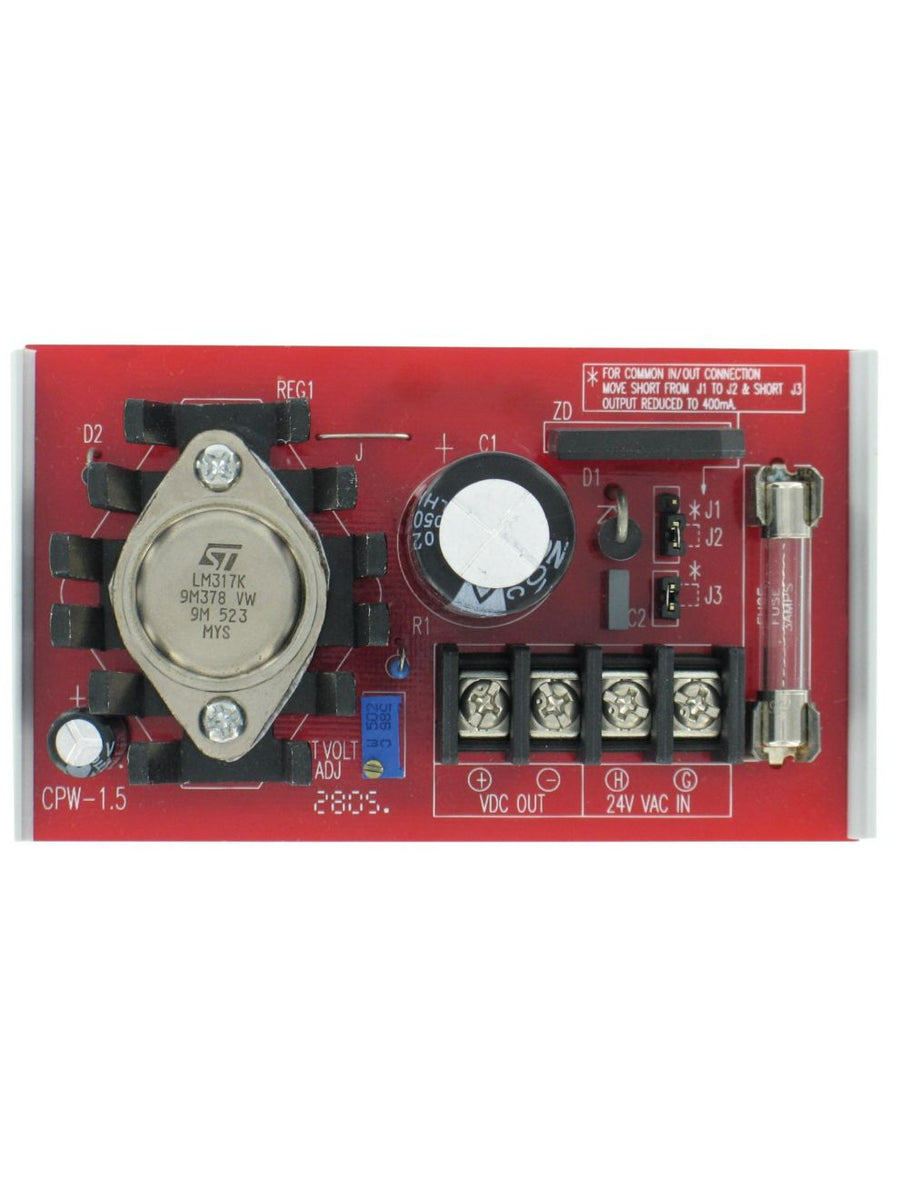

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BPS-015

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer BPS-015 Documents

BPS-015 Model BPS-015 Catalog Page More Info

Overview

Details for BPS-015

See catalog product page for full listing

Regulated power supply | 24 VAC to 24 VDC | with adjustable output of 1.5 to 27 VDC.

MODEL BPS-015 LOW COST DC POWER SUPPLY

1.5A, Fuse Protection

The MODEL BPS-015 Building Automation Power Supply is used to convert 24 VAC to a regulated DC power source for transmitters with 4 to 20 mA outputs. The output voltage can be field adjusted from 1.5 V to 27 V using a potentiometer. The 3 A fuse protects the power supply from over-current conditions. The snap-on bracket can be quickly surface mounted to any flat surface.

Product Applications

BAS
HVAC

Snap track design allowing for easy panel installation
Regulated 1.5 Amp

Specifications

Input: 24 VAC/VDC 50/60 Hz.
Output: 24 VDC (full wave rectified and regulated) adjustable 1.5 to 27 VDC.
Maximum Current Output: 1.5A (de-rated to 400 mA for non-isolated circuits).
Operating Temperature: 32 to 130°F (0 to 55°C).
Humidity Limits: 95% (non-condensing).
Weight: 0.4 lb.
