BPS-005 | Low Cost DC Power Supply | Dwyer
Low Cost DC Power Supply

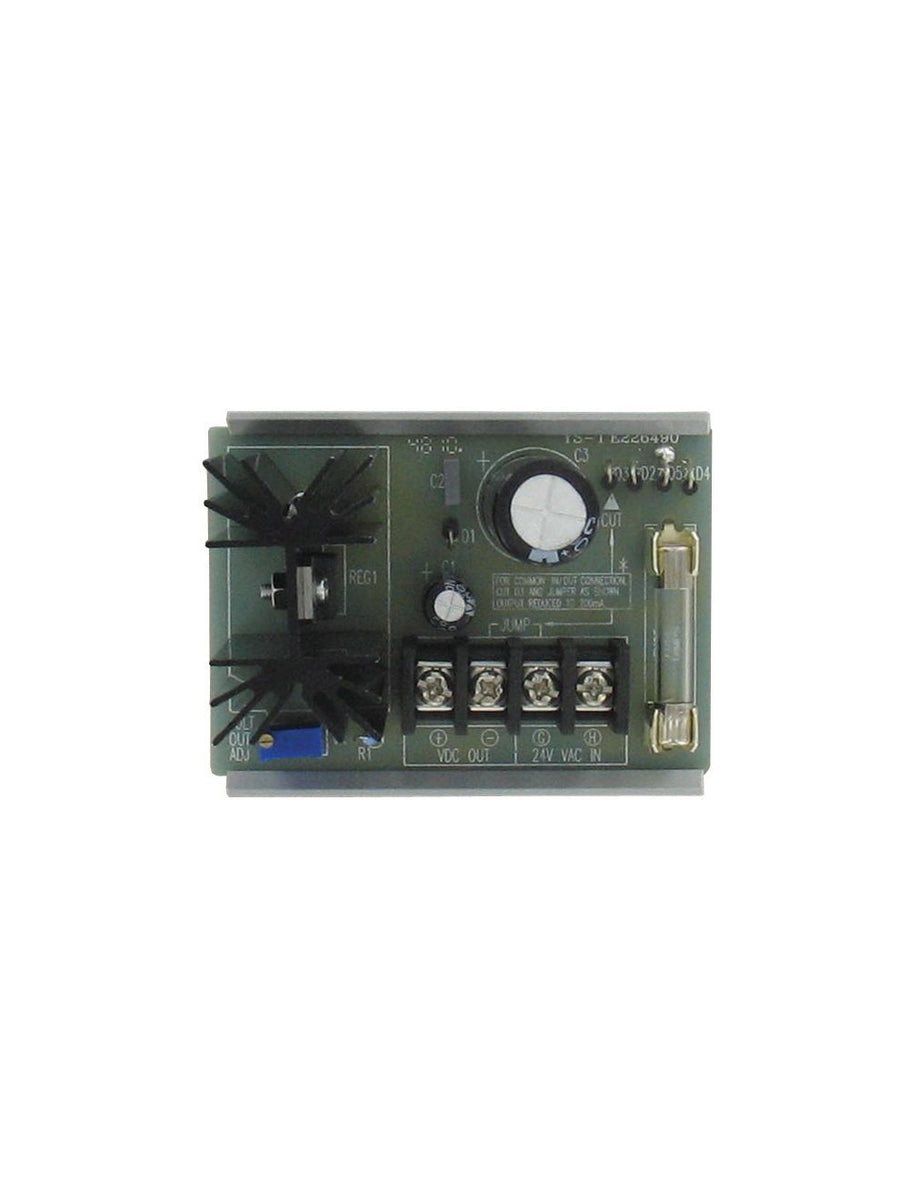

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BPS-005
Documents and manuals
Dwyer BPS-005 Documents
Overview
Details for BPS-005
See catalog product page for full listing
Low Cost DC Power Supply
MODEL BPS-005 LOW COST DC POWER SUPPLY
Regulated 0.5 A, 1 A Fuse Protection
The MODEL BPS-005 Low Cost DC Power Supply is a regulated .5 A power supplythat accepts 24 VAC input and provides an adjustable 1.5 to 29 VDC output. Outputvoltage adjustments are made using the on-board potentiometer while measuring theoutput with a multimeter. A compact snap track design allows the power supply to besurface mounted within a panel.
Product Applications
- BAS
- HVAC
- Snap track design allowing for easy panel installation
- Regulated 0.5 Amp
Specifications
- Input
- 24 VAC/VDC 50/60 Hz.
- Output
- 24 VDC (full wave rectified and regulated) adjustable 1.5 to 29 VDC; 0.5 A max.
- Maximum Current Output
- 0.5 A.
- Over-Current Protection
- 1 A fuse.
- Operating Temperature Limits
- 32 to 130°F (0 to 55°C).
- Humidity Limits
- 95% (non-condensing).
- Weight
- 0.4 lb.
- Agency Approvals
- RoHS.
