Documents: BICV-0F06

Series BICV Catalog Page More Info

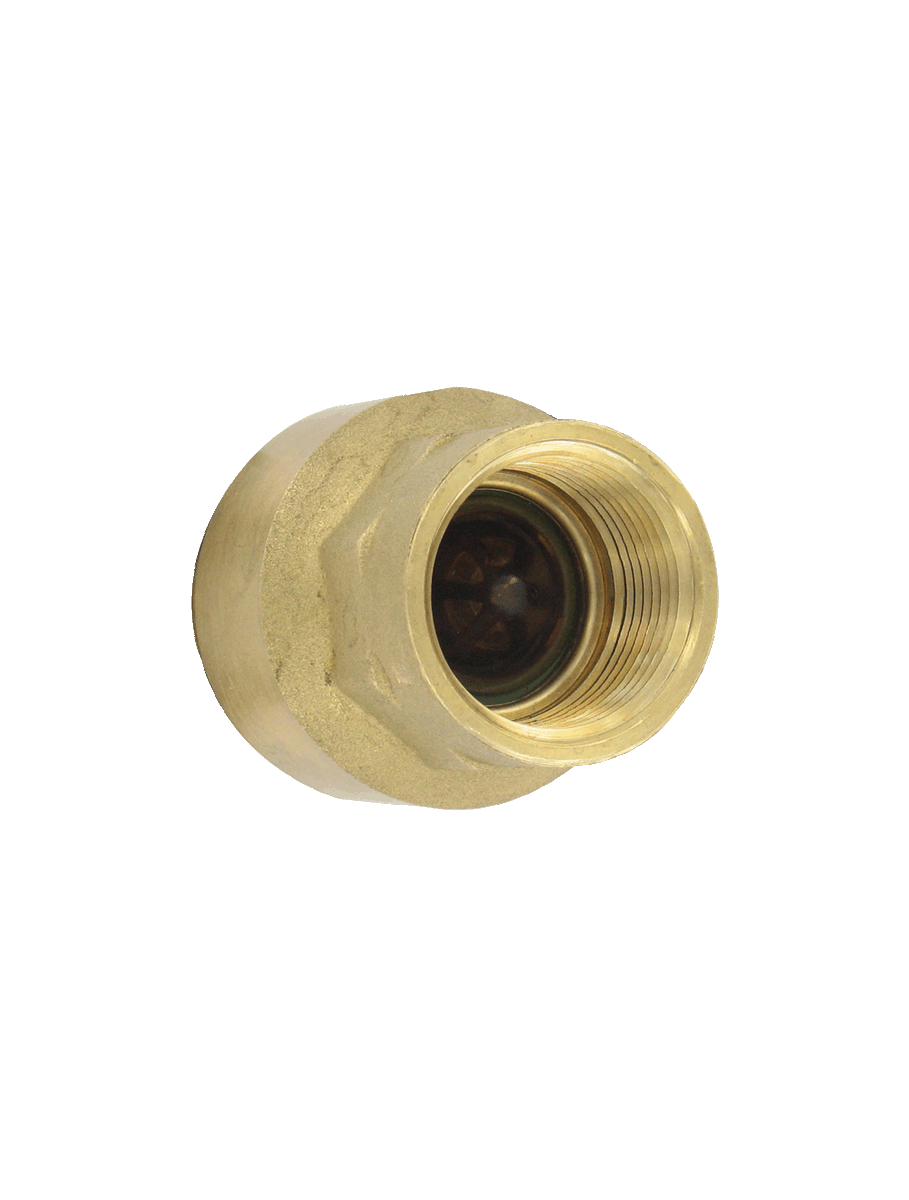

BICV-0F06 | Brass inline check valve | 1-1/2" connection | 39.1 Cv value | weight 1.6 lb (0.73 kg). | Dwyer

Brass inline check valve, 1-1/2" connection, 39.1 Cv value, weight 1.6 lb (0.73 kg).

Brand: DwyerSKU: BICV-0F06

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BICV-0F06

Jump to: Overview & Specifications Reviews

Overview Details for BICV-0F06

See catalog product page for full listing

Brass inline check valve | 1-1/2" connection | 39.1 Cv value | weight 1.6 lb (0.73 kg).

Series BICV Brass Inline Check Valve

Economical, Spring-Loaded for Fast Seating

The Series BICV Brass Inline Check Valves are ideal for use with a broad array of service mediums including compatible oils, gases, fuels and hydrocarbons. They incorporate a soft seat for a bubble-tight shutoff and are spring-loaded for rapid reseating at high and low temperatures. The Series BICV was designed with a smooth flow profile to minimize head loss and accumulation of debris. The low 0.5 psi (0.04 bar) cracking pressure and patented guided-disc technology ensure reliability at low and high service pressure.

California Residents: Click Here for Proposition 65 WARNING.on is resistant to harmful components often found in sample streams. Replaceable filter elements remove particles and droplets as small as .01 micron with 95% efficiency.

Product Applications

To protect equipment against possible damage or contamination resulting from a reversal of flow direction

Soft seat for bubble-tight shut off
Spring loaded for rapid reseating at high and low temperatures
Patented guided-disc technology

Specifications

Series: BICV Brass Inline Check Valve
Category/Type: Valves
Type: Valves
Valve Type: Check
Series: BICV Brass Inline Check Valve
Service: Liquids and gases compatible with wetted material.
Body: 1-piece.
Line Size: See Catalog page.
Process Connection: Female NPT.
Pressure Limits: 1/4" to 2": 400 psi (27.6 bar) WOG; 2-1/2" to 4": 175 psi (12.1 bar) WOG; all sizes: 125 psi (8.6 bar) SWP.
Wetted Materials: Valve Body: Brass (CW617N); Obstructer: Polyethermide; Seat: 1/4" - NBR rubber; 3/8" to 4" - fluoroelastomer; Spring: 302 SS.
Temperature Limits: 10 to 352°F (-12 to 178°C).
