BCHP-KIT | Test Pump with 1/4" NPT Connections | Fine Volume Adjustment Tool and Case. | Dwyer
Test Pump with 1/4" NPT Connections, Fine Volume Adjustment Tool and Case.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BCHP-KIT
Documents and manuals
Dwyer BCHP-KIT Documents
Overview
Details for BCHP-KIT
See catalog product page for full listing
Test Pump with 1/4" NPT Connections | Fine Volume Adjustment Tool and Case.

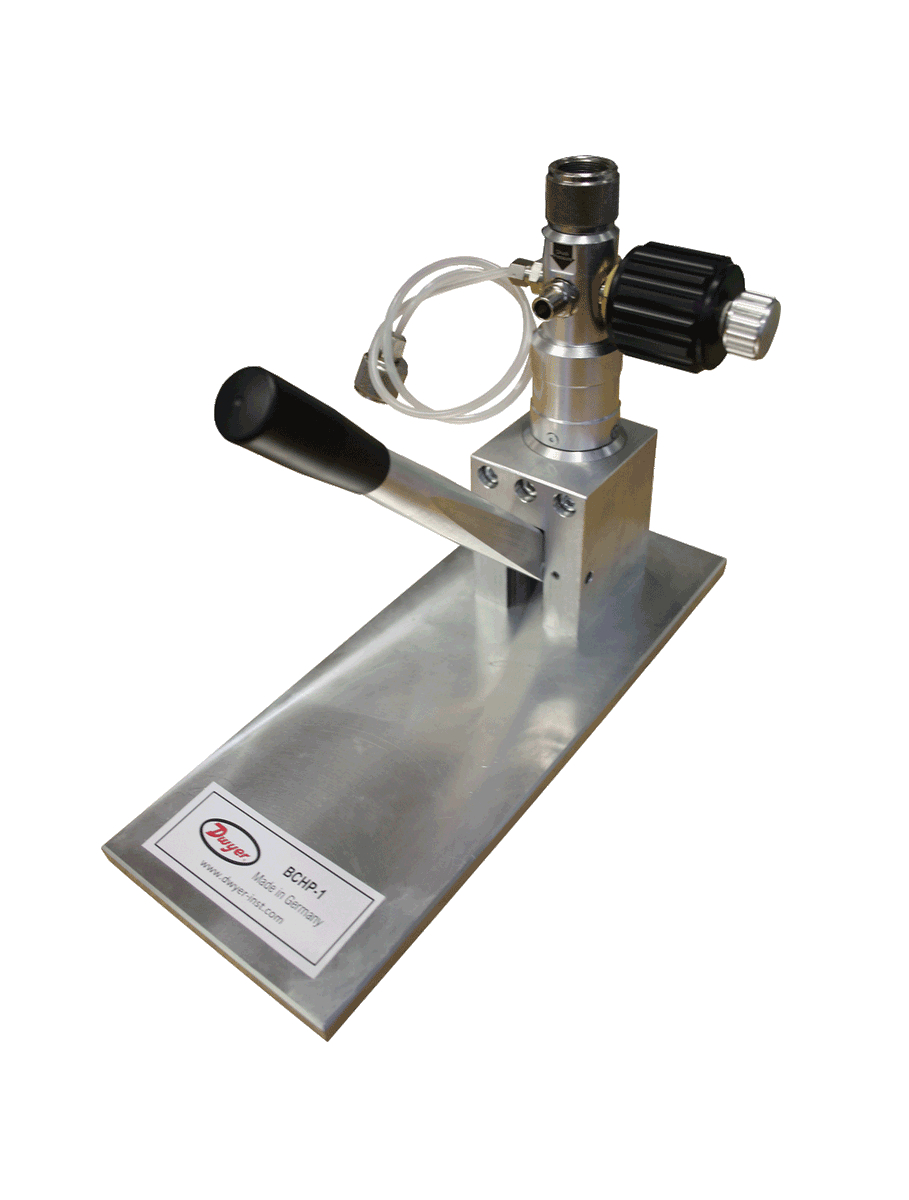

SERIES BCHP LOW PRESSURE CALIBRATION PUMP
Vacuum or Pressure, Generates up to 870 psi (60 bar)
The Series BCHP Calibration Test Pump is able to generate pressure and vacuum foradjusting or calibrating pressure gages, transmitters, or switches. The pump is handoperated and has a pneumatic pressure range of -28 in Hg to 870 psi (-0.95 bar to 60 bar).Dual pressure ports allow two instruments to be connected to the pump without additionalfittings. The Series BCHP can be used in laboratories and production areas. The fineadjustment valve on this pump ensures precise measurements.
Product Applications
- Instrument Calibration
Specifications
- Series
- BCHP LOW PRESSURE CALIBRATION PUMP
- Category/Type
- Test Equipment
- Type
- Calibration Pumps
- Series
- BCHP LOW PRESSURE CALIBRATION PUMP
- Media
- Air.
- Output Ranges
- -28 in Hg to 870 psi (-0.95 to 60 bar).
- Process Connections
- 1/4" female BSP.
- Gage Connection
- 1/2" female BSP.
- Materials
- Anodized aluminum; brass; and ABS.
- Weight
- 8.4 lb (3.8 kg).
