AVS-350 | Adjustable pressure switch | set point range 6.0-21.5" Hg (15.2-54.6 cm Hg) increasing | 8.4-28.2" Hg (21.3-71.6 cm Hg) decreasing | ±4.0" Hg (10.2 cm Hg) repeatability | 2.6-7.3" Hg (6.6-18.5 cm Hg) deadband. | Dwyer
Adjustable pressure switch, set point range 6.0-21.5" Hg (15.2-54.6 cm Hg) increasing, 8.4-28.2" Hg (21.3-71.6 cm Hg) decreasing, ±4.0" Hg (10.2 cm Hg) repeatability, 2.6-7.3" Hg (6.6-18.5 cm Hg) deadband.
Documents and manuals
Dwyer AVS-350 Documents
Overview
Details for AVS-350
Adjustable pressure switch | set point range 6.0-21.5" Hg (15.2-54.6 cm Hg) increasing | 8.4-28.2" Hg (21.3-71.6 cm Hg) decreasing | ±4.0" Hg (10.2 cm Hg) repeatability | 2.6-7.3" Hg (6.6-18.5 cm Hg) deadband.

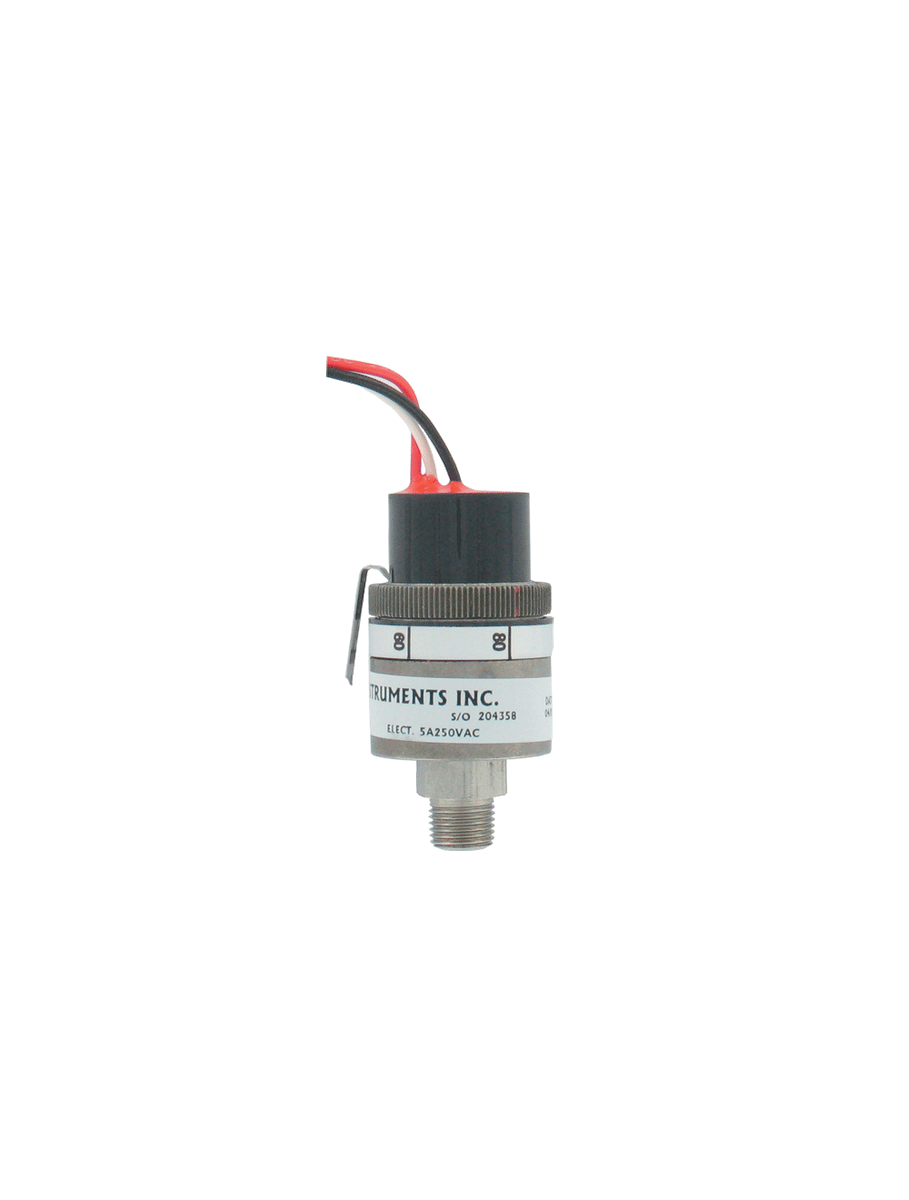

SERIES APS/AVS ADJUSTABLE PRESSURE SWITCH
Miniature Series APS/AVS Adjustable Pressure Switches offer reliable switching for pressure/vacuum alarm, shutdown or control. The units are readily adjustable throughout their range using the locking adjusting ring and indicating pointer. The body is constructed of stainless steel for durability in harsh environments. Switches include 12" (30 cm) wire leads sealed with epoxy for additional protection.
Product Applications
- OEM
- Compressors
- Motor control
- Process equipment
- Pump control
- Field adjustable with simple indicating pointer reduces installation time bringingapplication on-line faster
- Stainless steel construction provides a durable solution in harsh environments
Specifications
- Series
- APS/AVS ADJUSTABLE PRESSURE SWITCH
- Category/Type
- Pressure
- Type
- Single Pressure
- Series
- APS/AVS ADJUSTABLE PRESSURE SWITCH
- Service
- Compatible liquids or gases.
- Wetted Materials
- Capsule: 17-7 PH SS; Fitting: 303 stainless steel.
- Temperature Limits
- -65 to 225°F (-54 to 107°C); a set point change of up to 2% when used below -10°F (-23°C) or above 125°F (52°C).
- Pressure/Vacuum Limits
- 150% of range.
- Switch Type
- SPDT snap action.
- Electrical Ratings
- 5 A @ 250 VAC; 3 A @ 28 VDC.
- Electrical Connections
- 3-wire; 20 AWG insulated with PVC; 12" (30 cm) length.
- Process Connection
- 1/8" male NPT.
- Set Point
- Field adjustable.
- Cycling
- Not to exceed 20 CPM.
- Sensor Element
- Capsule.
- Weight
- 3 oz (85 g).
- Agency Approvals
- UR.
