AVPT-S03C1A12 | Air velocity transmitter | 5% accuracy | 3000 FPM | 12" probe | 20" pre-wired cable | analog output | Dwyer

Air velocity transmitter, 5% accuracy, 3000 FPM, 12" probe, 20" pre-wired cable, analog output

Dwyer | AVPT-S03C1A12

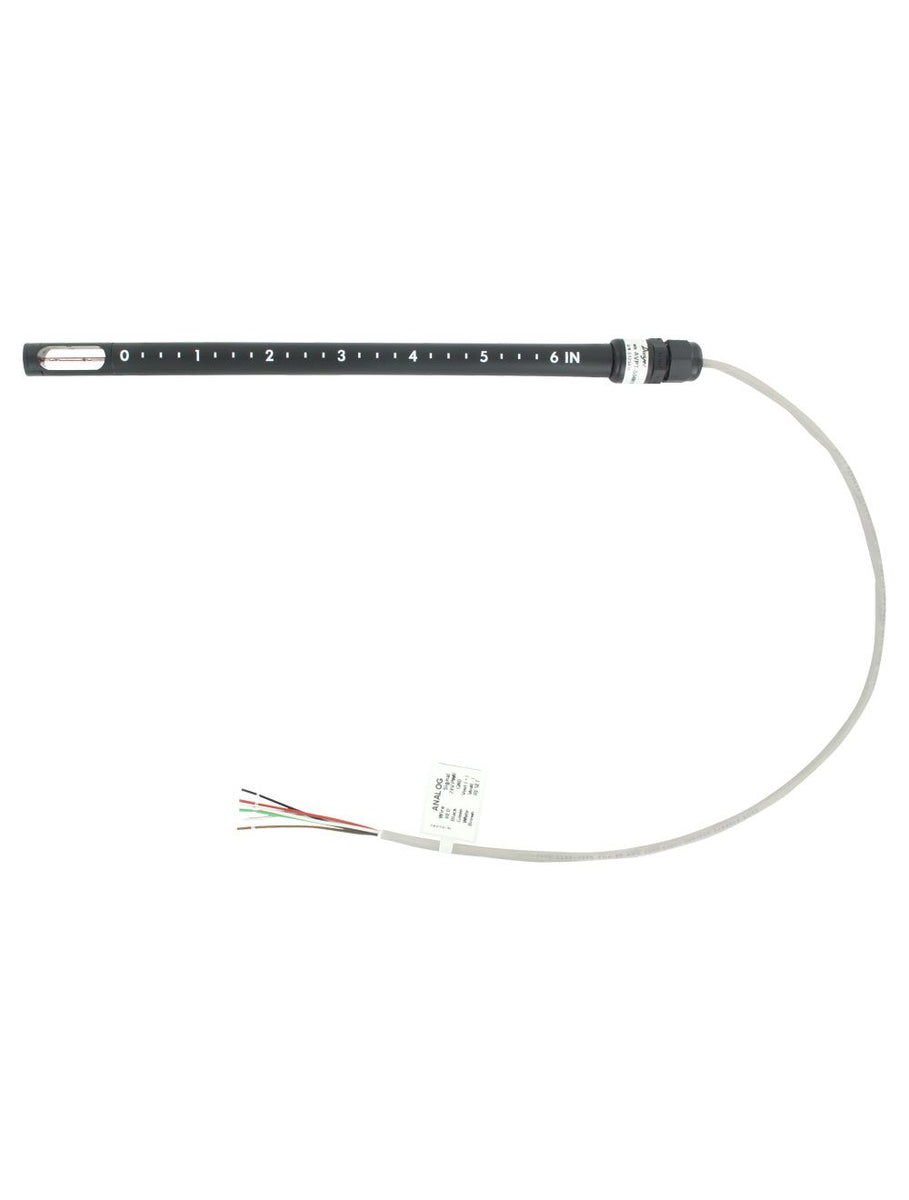

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to AVPT-S03C1A12

Documents and manuals

Overview

Details for AVPT-S03C1A12

See catalog product page for full listing

Air velocity transmitter | 5% accuracy | 3000 FPM | 12" probe | 20" pre-wired cable | analog output

SERIES AVPT PENCIL STYLE AIR VELOCITY TRANSMITTER

3% and 5% Models, Optional BACnet Communication Protocols

The Series AVPT Pencil Style Air Velocity Transmitter uses thermal anemometertechnology to provide high accuracy and stable air velocity measurements in imperialand metric units. The Series AVPT can be configured with either a voltage output orBACnet MS/TP communication to provide universal inputs to a variety of monitoringequipment. Models are available with fixed cable lengths of 20 or 78 inches with flyingleads or a 5-pin M12 connector on a 24 inch cable. Probes are available in lengths of6 or 12 inches. A mounting flange included with the product provides the ability to varyinsertion depth.

Models are available in 3% or 5% accuracy to suit a variety of applications, while theoptional BACnet MS/TP communication protocol allows units to be daisy-chained toprovide access to all of the velocity and temperature measurements.

Product Applications

  • VAV systems
  • Building ducts
  • Sensing elements have been coated with an engineered conformal coating to ensure durability and longevity
  • Varying lengths for easy installation
  • Functionality at temperatures below freezing

Specifications

Series
AVPT PENCIL STYLE AIR VELOCITY TRANSMITTER
Service
Clean air.
Ranges
1000; 2000; 3000; or 4000 FPM (5; 10; 15; or 20 m/s); Model specific.
Accuracy
Standard: ±(5% reading +40 FPM); High accuracy: ±(3% reading +40 FPM); Model specific.
Power Requirements
24 VAC/VDC ±20%.
Current Consumption
< 50 mA.
Outputs
Analog: 0-10 V (0-5 V configurable).
BACnet MS/TP
Selectable at time of order.
Supported Baud Rate
9600; 19200; 38400; 57600; 76800; and 115200.
Voltage Output Load Resistance
10 kΩ minimum (10 V output with AC supply); 1 kΩ minimum all other conditions.
Electrical Connection
Cable: Plenum rated cable with 22 AWG conductors.
5-Conductor Cable whip
20" (0.5 m) or 78" (2 m).
5-pin M-12
24" (0.6 m); model specific.
Response Time (90%)
4 s; typical.
Operational Temperature Limits
-4 to 140°F (-20 to 60°C).
Storage Temperature Limits
-40 to 140°F (-40 to 60°C).
Probe Length
6" or 12"; model specific.
Enclosure Rating
NEMA 3.
Mounting Orientation
Flow direction must be parallel to the sensor tip; See Installation section for details.
Weight
1.4 oz (40 g); based on M12 connection with 12" probe length.
Agency Approvals
CE; RCM; BTL; UL plenum rated (UL tested).
