AVLV-1DA1-LCD | Air velocity transmitter | 1% accuracy | duct mount | universal current/voltage outputs with LCD display | Dwyer

Air velocity transmitter, 1% accuracy, duct mount, universal current/voltage outputs with LCD display

Brand: DwyerSKU: AVLV-1DA1-LCD
Dwyer | AVLV-1DA1-LCD

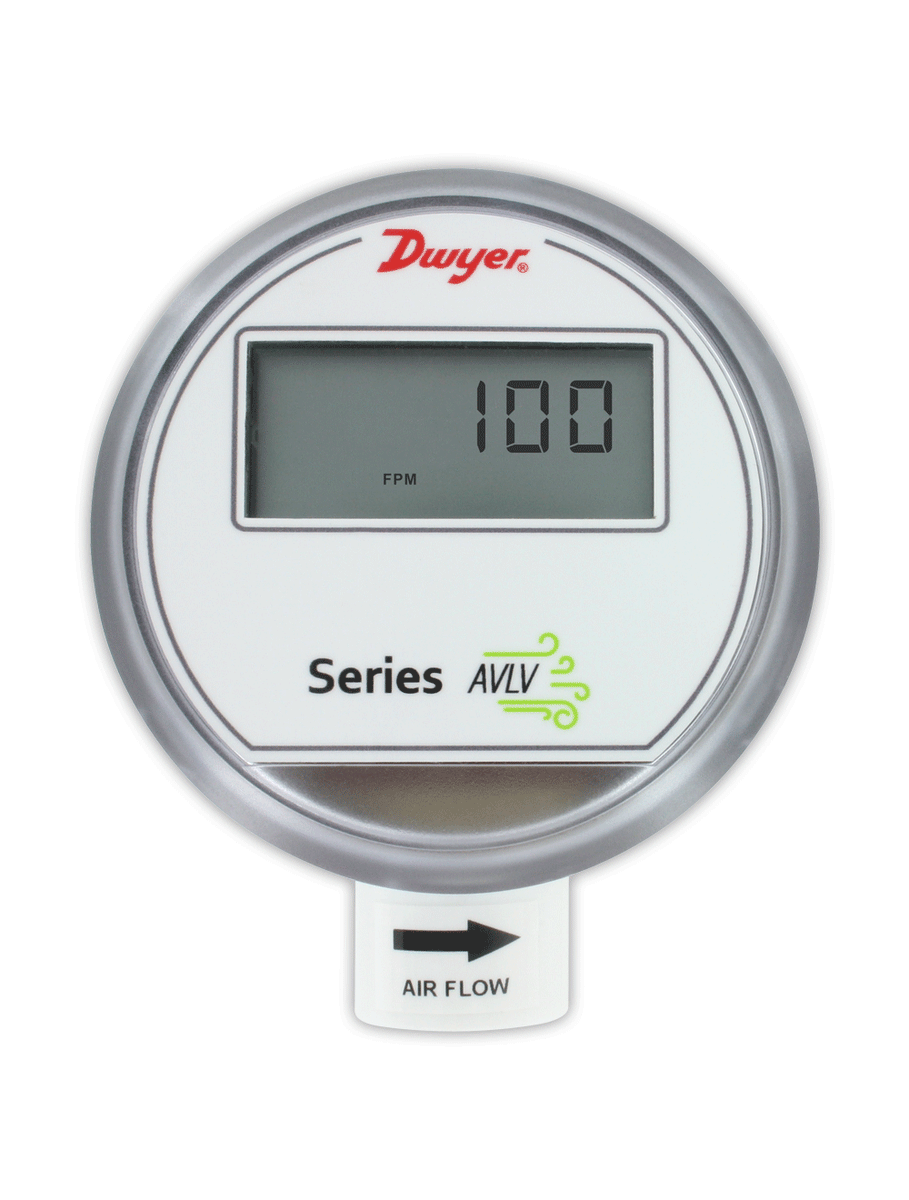

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to AVLV-1DA1-LCD

Overview Details for AVLV-1DA1-LCD

See catalog product page for full listing

Air velocity transmitter | 1% accuracy | duct mount | universal current/voltage outputs with LCD display

SERIES AVLV AIR VELOCITY TRANSMITTER

1% and 2% Models, Optional BACnet MS/TP or Modbus®

The Series AVLV Air Velocity Transmitter quickly and accurately measures airvelocity or volumetric flow in imperial or metric units. Simultaneous current andvoltage outputs on all models provide universal inputs to monitoring equipment whilethe output range, units, and 0-5/10 VDC, 4-20 mA output can be configured via localDIP switches. The optional integral display, or the portable remote tool, provide aconvenient way to local monitor process values and configure the unit.

Models are available in 1% and 2% accuracy models and low velocity ranges to suit a variety of needs, and the optional BACnet MS/TP or Modbus® RTU/ASCII communication protocol allows units to be daisy-chained while providing access to all of the velocity and flow data, as well as additional information such as air temperature. The lower ranges in these high accuracy units allow for applications in quality intensive environments, such as the pharmaceutical industry.

Product Applications

  • VAV systems
  • Building ducts
  • Clean room systems
  • Sensing elements have been coated with an engineered conformal coating to ensure durability and longevity
  • Field selectable ranges can be quickly configured without power to the unit

Specifications

Series
AVLV AIR VELOCITY TRANSMITTER
Service
Clean air and non-combustible; compatible gases.
Wetted Materials
Consult factory.
Range
100; 200; 300; 400 FPM (0.5; 1; 1.5; 2 m/s); field selectable.
Accuracy
See chart on catalog page.
Temperature Limits
32 to 122°F (0 to 50°C).
Power Requirements
24 VDC ±20% or 24 VAC ±20%.
Humidity Limits
5 to 95% RH; non-condensing.
Output Signals
4 to 20 mA; 0 to 5 VDC; 0 to 10 VDC.
Response Time (90%)
4 s; typical; 1 s at constant temperature.
Zero & Span Adjustments
Digital push buttons.
Output Load Resistance
Current output: 0 to 1100 Ω max.; Voltage output:Minimum load resistance 1 kΩ.
Current Consumption
60 mA max.
Display
5 digit LCD (optional).
Electrical Connections
Analog: Power and output: four wire removable Europeanstyle terminal block for 16 to 26 AWG; Communication: Connections: BACnet MS/TP or Modbus® RTU/ASCII: three wire removable European style terminal block for16 to 26 AWG.
Supported Communication Baud Rates
9600; 19200; 38400; 57600; 76800; 115200 (optional).
Device Load
1/8 unit load.
Electrical Entry
1/2" NPS thread; Accessory: Cable gland for 5 to 10 mm diameter cable; A-151.
Enclosure Rating
NEMA 4X (IP66).
Mounting Orientation
Flow direction must be parallel to the sensor tip.
Weight
6.0 oz (160 g).
Agency Approval
BTL; CE.
