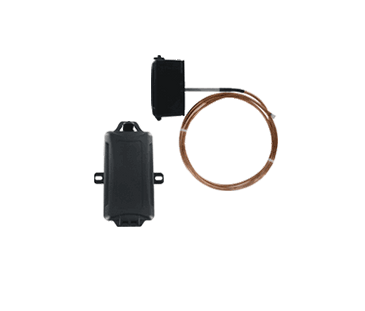

AVG-26121 | Averaging temperature sensor | 3K Ω Thermistor | plastic junction box | 12' capillary. | Dwyer

Averaging temperature sensor, 3K Ω Thermistor, plastic junction box, 12' capillary.

Brand: DwyerSKU: AVG-26121

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to AVG-26121

Jump to: Overview & Specifications Reviews

Overview Details for AVG-26121

See catalog product page for full listing

Averaging temperature sensor | 3K Ω Thermistor | plastic junction box | 12' capillary.

Series AVG Averaging Temperature Sensor

Available in 12' or 24' Lengths

The Series AVG Averaging Temperature Sensor can be used to measure the average temperature up stream of the cooling coils in an air handler. The coiled sensor unwinds to a length of 12' or 24' to take an average temperature reading across a large space. The housing has multiple knockouts to reduce the time to install conduit. The Series CC1 mounting brackets can be used to secure the capillary to the wall of the air handler without kinking. The Series AVG can be ordered with a choice of 11 output options that allow it to communicate to any standard building control system.

Product Applications

Building Automation
Air handling equipment monitoring
Large air duct temperature monitoring

Cooper capillary offers improved thermal conductivity
Capillary size fits most metal or plastic mounting clips allowing for easy installation

Specifications

Series: AVG Averaging Temperature Sensor
Category/Type: Temperature
Type: Sensors
Series: AVG Averaging Temperature Sensor
Accuracy: Platinum RTD: ±0.6% @ 32°F (0°C); Nickel RTD: ±0.5°F @ 32°F (0°C); Balco RTD: ±0.1% @ 32°F (0°C); Thermistors: ±0.36°F from 32 to 158°F (0 to 70°C).
Operating Temperature: -32 to 240°F (-35.5 to 115.5°C).
Capillary Length: 12' or 24' depending on model.
Cable Length: 8"
Probe Material: Bendable copper capillary.
Mounting: Flanged mounting ears.
