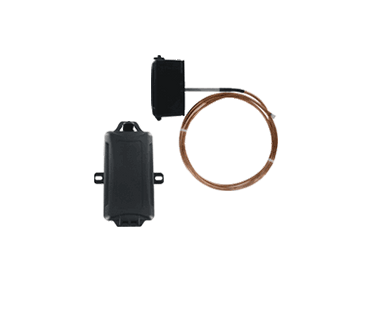

AVG-24241 | Averaging temperature sensor | Balco 1000 Ω RTD | plastic junction box | 24' capillary. | Dwyer
Averaging temperature sensor, Balco 1000 Ω RTD, plastic junction box, 24' capillary.
Documents and manuals
Dwyer AVG-24241 Documents
Overview
Details for AVG-24241
Averaging temperature sensor | Balco 1000 Ω RTD | plastic junction box | 24' capillary.

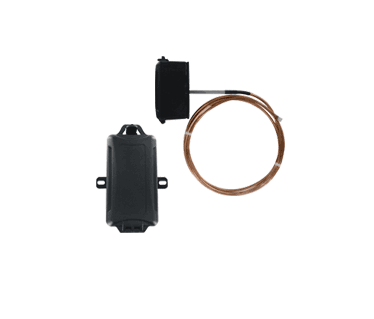

Series AVG Averaging Temperature Sensor
The Series AVG Averaging Temperature Sensor can be used to measure the average temperature up stream of the cooling coils in an air handler. The coiled sensor unwinds to a length of 12' or 24' to take an average temperature reading across a large space. The housing has multiple knockouts to reduce the time to install conduit. The Series CC1 mounting brackets can be used to secure the capillary to the wall of the air handler without kinking. The Series AVG can be ordered with a choice of 11 output options that allow it to communicate to any standard building control system.
Product Applications
- Building Automation
- Air handling equipment monitoring
- Large air duct temperature monitoring
- Cooper capillary offers improved thermal conductivity
- Capillary size fits most metal or plastic mounting clips allowing for easy installation
Specifications
- Series
- AVG Averaging Temperature Sensor
- Category/Type
- Temperature
- Type
- Sensors
- Series
- AVG Averaging Temperature Sensor
- Accuracy
- Platinum RTD: ±0.6% @ 32°F (0°C); Nickel RTD: ±0.5°F @ 32°F (0°C); Balco RTD: ±0.1% @ 32°F (0°C); Thermistors: ±0.36°F from 32 to 158°F (0 to 70°C).
- Operating Temperature
- -32 to 240°F (-35.5 to 115.5°C).
- Capillary Length
- 12' or 24' depending on model.
- Cable Length
- 8"
- Probe Material
- Bendable copper capillary.
- Mounting
- Flanged mounting ears.
