ASG | Analog signal generator. | Dwyer

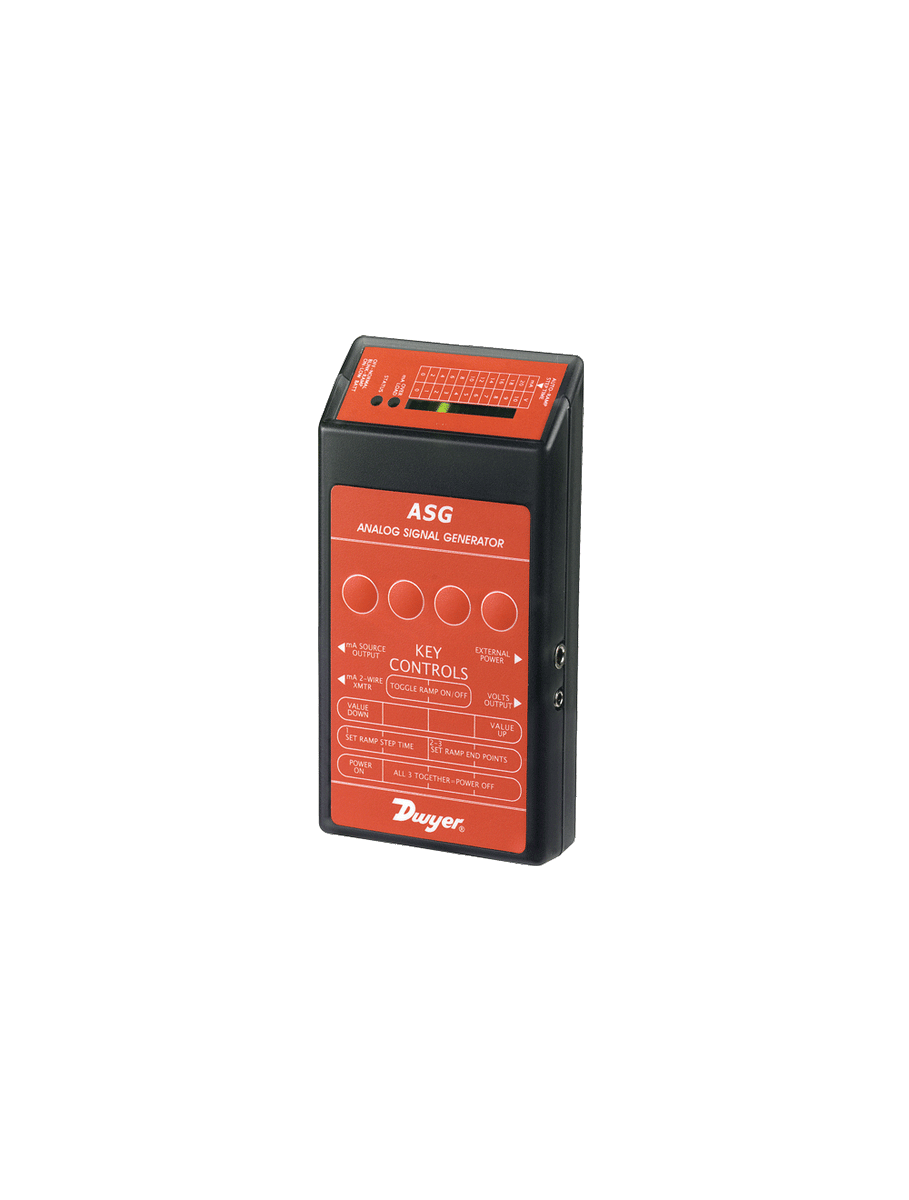

Analog signal generator.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to ASG
Documents and manuals
Dwyer ASG Documents
Overview
Details for ASG
See catalog product page for full listing
Analog signal generator.
MODEL ASG ANALOG SIGNAL GENERATOR
Ramp Function, Bar Graph LED, Selectable Auto Shut Off
The Model ASG Analog Signal Generator generates a 0-10 VDC signal in increments of 1 V or a 4-20 mA signal in increments of 2 mA. An LED bar graph visually indicates the analog signal level. Model ASG will also continuously ramp to user defined maximum and minimum values with user defined ramp interval timing.
Specifications
- Power Requirements
- 9 V alkaline battery; installed functional; user replaceable or 120 VAC (provided).
- Auto Shutoff Times
- 2 to 20 m. (2 m. increments) (6 m. default).
- Electrical Connections
- 6' (1.8 m) with alligator clips.
- Weight
- 3.2 oz (without battery).
