APT-20-1SN | AC power transformer | 120 VAC input | 24 VAC isolated output | 20 VA | single hub | Dwyer
AC power transformer, 120 VAC input, 24 VAC isolated output, 20 VA, single hub

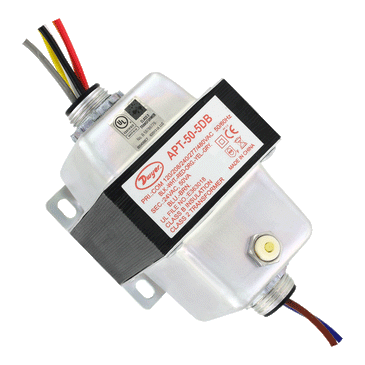

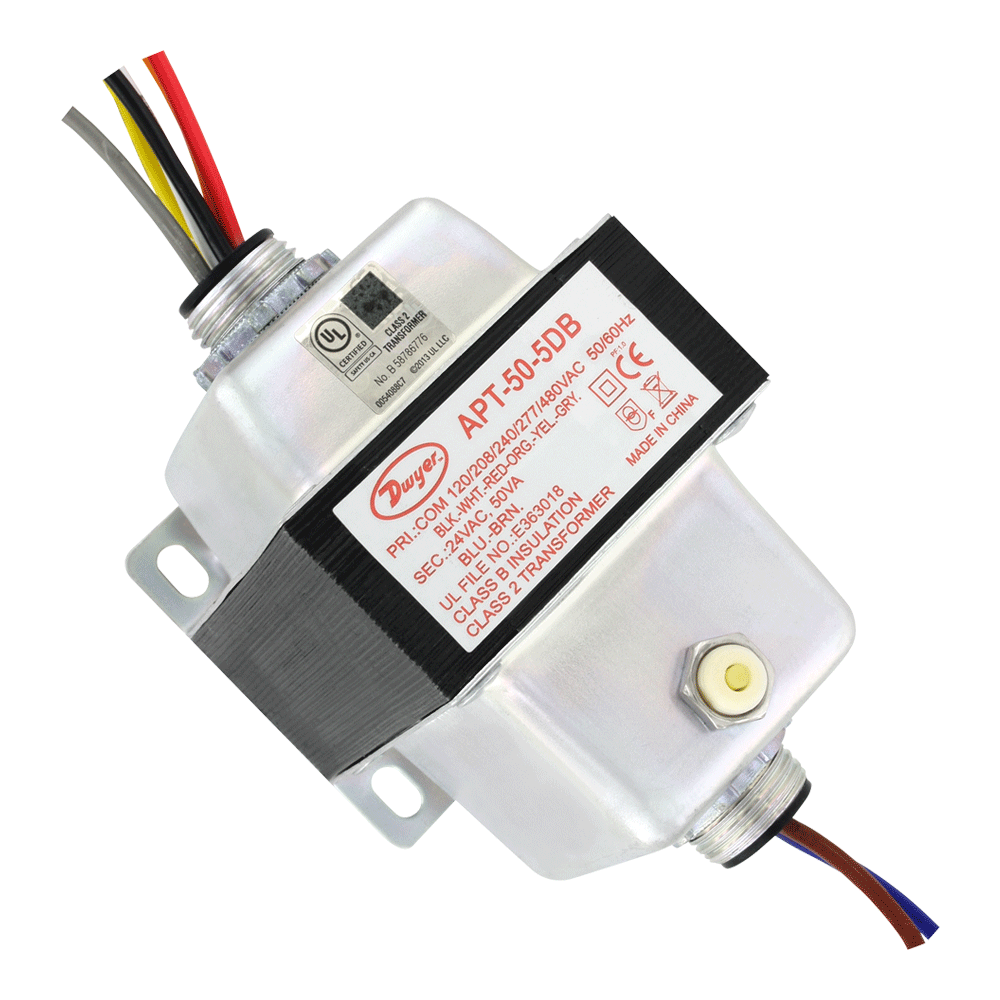

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to APT-20-1SN
Documents and manuals
Dwyer APT-20-1SN Documents
Overview
Details for APT-20-1SN
See catalog product page for full listing
AC power transformer | 120 VAC input | 24 VAC isolated output | 20 VA | single hub
SERIES APT AC POWER TRANSFORMERS
40 VA to 150 VA, Single or Dual Hub, Circuit Breaker, UL Class 2
The SERIES APT AC Power Transformers provide isolated step-down to 24 VAC with models offering VA ratings of 20, 40, 50, 75, 96, or 150 VA’s. These cost efficient transformers are offered in single or dual 1/2" NPT threaded hub mounts with 8-1/2" 18 AWG wire leads, to meet the installation requirements of a variety of building automation and control panel applications in HVAC. All models are UL Class 2 listed.
Product Applications
- BAS
- HVAC
- Single or dual 1/2" NPT
- Universal supply voltage input
- With or without integral circuit breaker
Specifications
- Series
- APT AC POWER TRANSFORMERS
- Input Voltage
- See model chart on catalog page.
- Input Frequency
- 50/60 Hz.
- Output Voltage
- See model chart on catalog page.
- Output VA Rating
- 20; 40; 50; 75; 96; or 150 VA.
- Mounting
- Slotted foot mount with single; or dual 1/2" NPT hub.
- Current Protection
- See model chart on catalog page.
- Electrical Connections
- Models ending in -20: 20" (508 mm) 18 AWG leads; Allother models: 8.5" (210 mm) 18 AWG leads.
- Weight
- See model chart on catalog page.
- Agency Approvals
- CE; cULus.
