Documents: APT-100-2DB

Series APT Catalog Page More Info

APT-100-2DB | AC power transformer | 240 VAC input | 24 VAC isolated output | 96 VA | dual hub | w/ circuit breaker | Dwyer

AC power transformer, 240 VAC input, 24 VAC isolated output, 96 VA, dual hub, w/ circuit breaker

Brand: DwyerSKU: APT-100-2DB

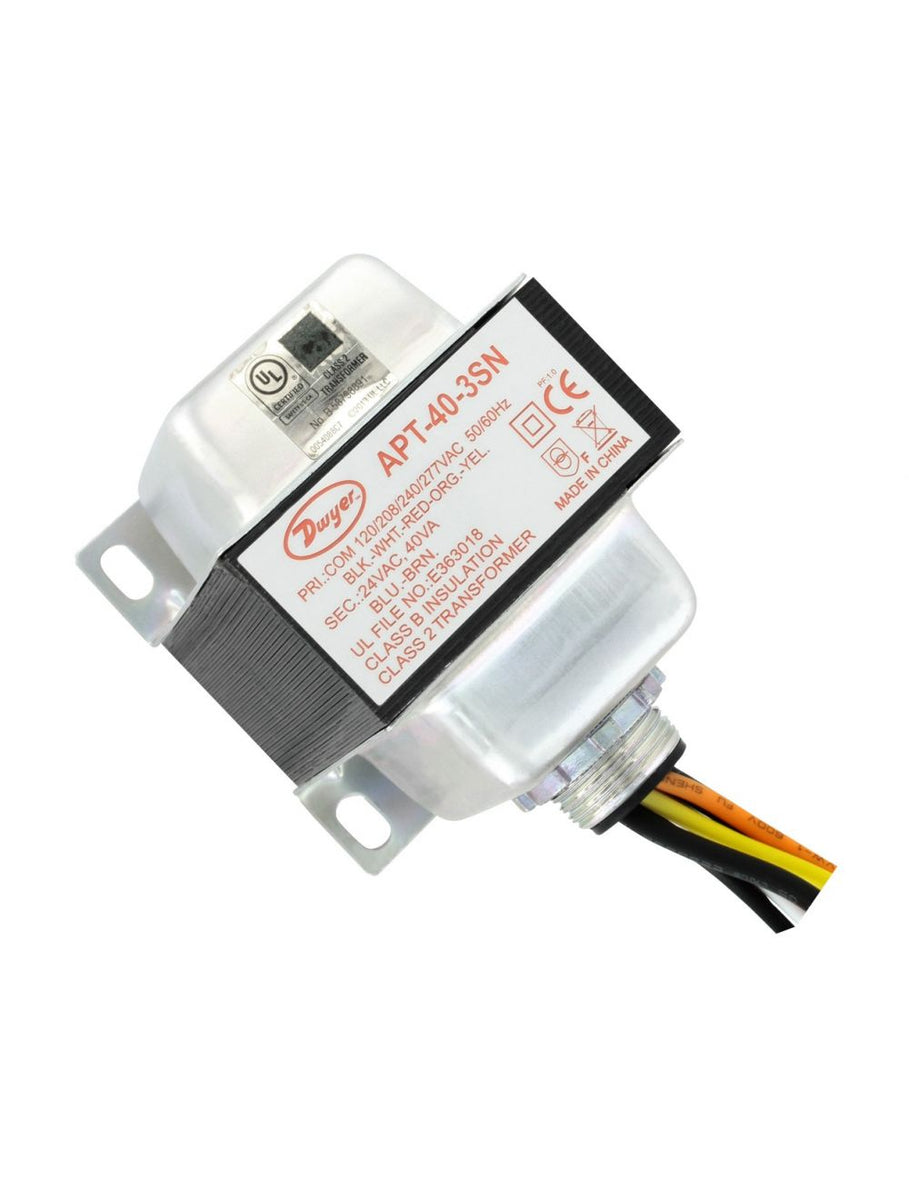

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to APT-100-2DB

Jump to: Overview & Specifications Reviews

Overview Details for APT-100-2DB

See catalog product page for full listing

SERIES APT AC POWER TRANSFORMERS

40 VA to 150 VA, Single or Dual Hub, Circuit Breaker, UL Class 2

The SERIES APT AC Power Transformers provide isolated step-down to 24 VAC with models offering VA ratings of 20, 40, 50, 75, 96, or 150 VA’s. These cost efficient transformers are offered in single or dual 1/2" NPT threaded hub mounts with 8-1/2" 18 AWG wire leads, to meet the installation requirements of a variety of building automation and control panel applications in HVAC. All models are UL Class 2 listed.

Product Applications

BAS
HVAC

Single or dual 1/2" NPT
Universal supply voltage input
With or without integral circuit breaker

Specifications

Series: APT AC POWER TRANSFORMERS
Category/Type: Process Control
Type: Power Supplies and Transformers
Series: APT AC POWER TRANSFORMERS
Input Voltage: See model chart on catalog page.
Input Frequency: 50/60 Hz.
Output Voltage: See model chart on catalog page.
Output VA Rating: 20; 40; 50; 75; 96; or 150 VA.
Mounting: Slotted foot mount with single; or dual 1/2" NPT hub.
Current Protection: See model chart on catalog page.
Electrical Connections: Models ending in -20: 20" (508 mm) 18 AWG leads; Allother models: 8.5" (210 mm) 18 AWG leads.
Weight: See model chart on catalog page.
Agency Approvals: CE; cULus.
