Differential pressure anemometer

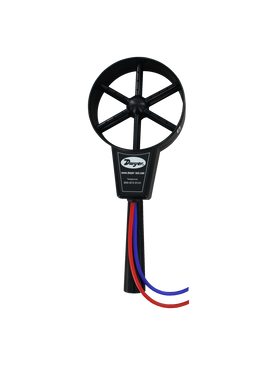

MODEL ANE-1 DIFFERENTIAL PRESSURE ANEMOMETER
The Model ANE-1 Differential Pressure Anemometer is a robust and durable bidirectionalanemometer with no moving parts or sensing electronics. With the installedtubing, the ANE-1 connects easily to any manometer or applicable pressure sensing deviceand is capable of measuring a wide velocity range. The air velocity range and accuracy isdependent on the installed manometer, and the ANE-1 retains the accuracy as long as it isdust free. The ANE-1 is made from high quality ABS plastic, comes with a convenienthandle, and includes 5' of blue and 5' of red silicone tubing (2 mm ID x 4.5 mm OD) withremoveable adapter sized 2 mm OD to 3/16" OD that has two removeable 5" clear silicone3/16" ID x 3/8" OD tubing versatile process options.
Product Applications
- Measure face air velocity on grills, diffusers, registers, exhaust hoods
- Wide velocity range dependent on connected manometer
- Includes 5´ of blue and 5´ of red silicone tubing with a removable adapter sized 2 mmOD to 3/16" OD
Specifications
- Service
- Clean air only.
- Wetted Materials
- Anemometer: ABS; Tubing: Silicone; Handle: Phenolic.
- Dimensions
- Tubing: 2 mm ID x 4.5 mm OD;Adapter: 2 mm OD to 3/16" OD connections.
- Temperature Limits
- 23 to 122°F (-5 to 50°C).
- K-Factor
- 0.843.
- Process Connections
- 2 removeable 5" (12.7 cm) tubing 3/16" ID.
- Weight
- 7.7 oz (220 g).
