A9-2 | Pressure switch | range 7.3-17.4 psig (0.5-1.5 bar) | deadband 2.9 ±1.5 psig (0.2 ±0.1 bar) | max. pressure 58.0 psig (4.0 bar) | temperature limit 257°F (125°C) | stainless steel diaphragm. | Dwyer

Pressure switch, range 7.3-17.4 psig (0.5-1.5 bar), deadband 2.9 ±1.5 psig (0.2 ±0.1 bar), max. pressure 58.0 psig (4.0 bar), temperature limit 257°F (125°C), stainless steel diaphragm.

Brand: DwyerSKU: A9-2

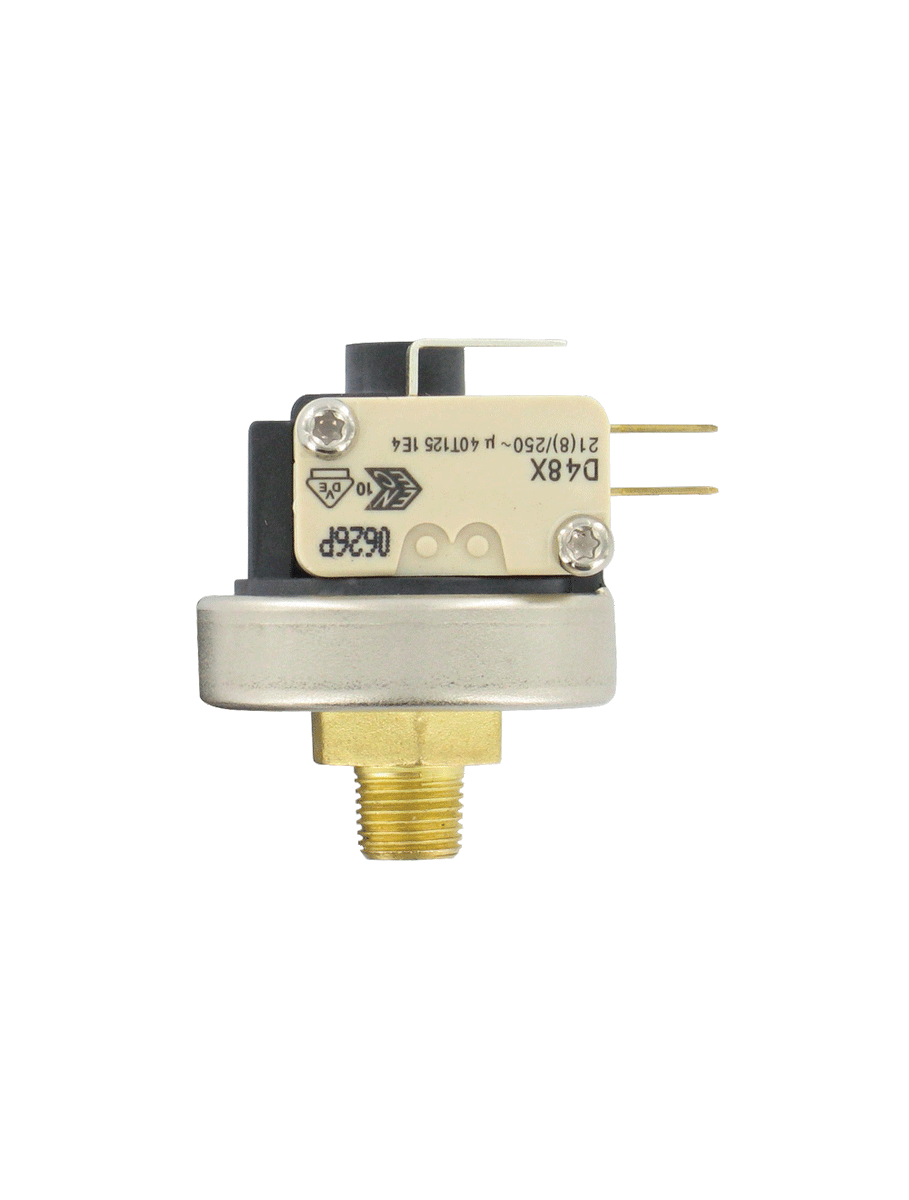

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A9-2

Jump to: Overview & Specifications Reviews

Overview Details for A9-2

See catalog product page for full listing

SERIES A9 SNAP-ACTION PRESSURE SWITCH

High Current Capacity, High Temperature Rating

Series A9 Snap-Action Pressure Switches are designed for controlling pressure with higher current capacity. These switches are used widely in steam cleaners, steam irons, and other pressure control systems. It provides SPDT contact and Series A9 Pressure Switches utilize high-quality miniature snap-action switches. The switch is diaphragm operated, boasting a high temperature rating and compact size.

Specifications

Series: A9 SNAP-ACTION PRESSURE SWITCH
Category/Type: Pressure
Type: Single Pressure
Series: A9 SNAP-ACTION PRESSURE SWITCH
Service: Non-hazardous gas; liquid; or steam.
Wetted Materials: Connection: Copper; Diaphragm: Silicone or Stainless Steel.
Temperature Limits: See Ordering page.
Pressure Limit: See Ordering page.
Repeatability: ±5%.
Switch Type: SPDT.
Electrical Ratings: 21A @ 125/250 VAC.
Electrical Connections: 1/4" (6.35 mm) male quick connect.
Process Connection: 1/8" male NPT.
Weight: 2.6 oz (75 g).
Deadband: See Ordering page.
