A6-553221 | Pressure switch | set point range 14-24 ±3 psi (0.97-1.65 ±0.21 bar). | Dwyer
Pressure switch, set point range 14-24 ±3 psi (0.97-1.65 ±0.21 bar).

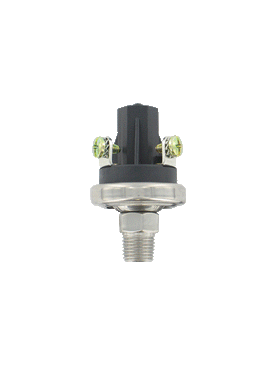

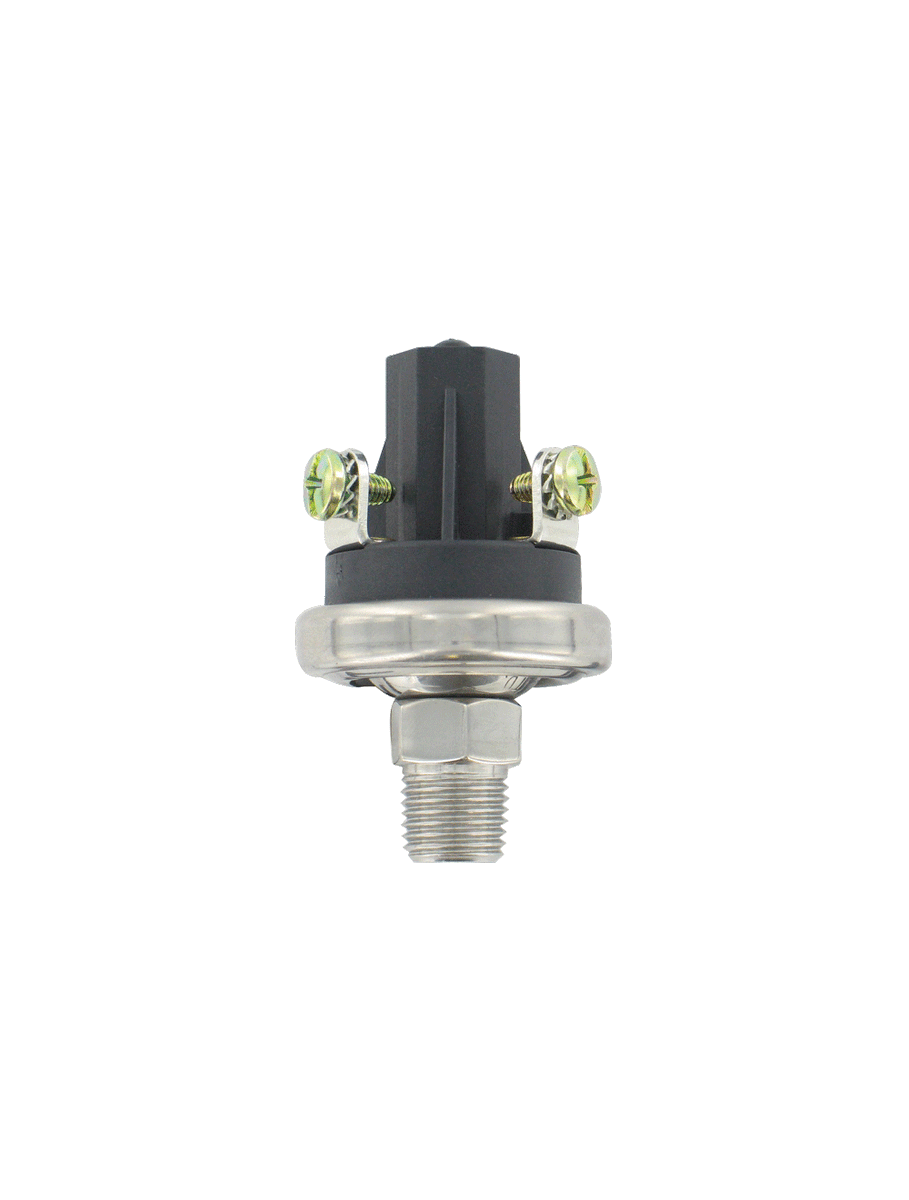

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to A6-553221
Documents and manuals
Dwyer A6-553221 Documents
Overview
Details for A6-553221
See catalog product page for full listing
Pressure switch | set point range 14-24 ±3 psi (0.97-1.65 ±0.21 bar).
SERIES A6 DURABLE PRESSURE SWITCH
Designed for Extended Duty, Simple and Reliable
Series A6 Durable Pressure Switches have been specifically designed to stand upto extended duty applications. These switches are constructed with a polyimide filmdiaphragm and are compatible with a variety of fluids. For ease of installation, theswitches come with a 1/4" male NPT process connection and can be mounted in anyorientation. The Series A6 pressure switches are compact and have great set-pointintegrity, and feature simple, easy set-point field adjustment.
Product Applications
- OEM
- Process equipment
- Process applications
- High switch cycle means long life for extended duty applications
- Mounting in any position and feature simple makes a reliable switching for equipmentand OEM applications
Specifications
- Series
- A6 DURABLE PRESSURE SWITCH
- Category/Type
- Pressure
- Type
- Single Pressure
- Series
- A6 DURABLE PRESSURE SWITCH
- Service
- Air; motor oils; transmission oils; jet fuels; and similar hydrocarbon media. (Not for water use).
- Wetted Materials
- Base: 304 SS; Diaphragm: polyimide film.
- Temperature Limits
- -40 to 248°F (-40 to 120°C).
- Pressure Limits
- Operating Pressure: 150 psi (10.3 bar) for 0.5-24 psi set point ranges; 250 psi (17.2 bar) for 25-150 psi set-point ranges. Proof Pressure: 500 psi (34.5 bar). Burst Pressure: 750 psi (51.7 bar) for 0.5-24 psi set point ranges; 1250 psi (86.2 bar) for 25-150 psi set point ranges.
- Enclosure Rating
- General purpose or with cover: IP65 - Weatherproof.
- Repeatability
- ±10% of set point.
- Switch Type
- 1 SPST NO; 1 SPST NC. NO and NC switch independent from each other.
- Electrical Ratings
- Resistive: 15 A @ 6 VDC; 8 A @ 12 VDC; 4 A @ 24 VDC; Inductive: 1 A @ 120 VAC; 0.5 A @ 240 VAC.
- Electrical Connections
- #8-32 screw terminals.
- Process Connection
- 1/4" male NPT.
- Mounting Orientation
- Switch can be installed in any position.
- Set Point Adjustment
- Screw.
- Weight
- 0.13 lb (0.06 kg).
- Agency Approvals
- CE.
