A4-2 | Differential pressure switch | ±4 psi (.28 bar) repeatability | set point (increasing) 13-25 psid (.89-1.7 bar) | set point (decreasing) 5-16 psid (.34-1.1 bar). | Dwyer
Differential pressure switch, ±4 psi (.28 bar) repeatability, set point (increasing) 13-25 psid (.89-1.7 bar), set point (decreasing) 5-16 psid (.34-1.1 bar).

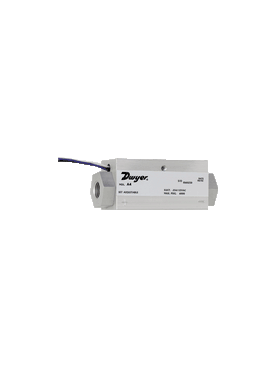

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to A4-2
Documents and manuals
Dwyer A4-2 Documents
Overview
Details for A4-2
See catalog product page for full listing
Differential pressure switch | ±4 psi (.28 bar) repeatability | set point (increasing) 13-25 psid (.89-1.7 bar) | set point (decreasing) 5-16 psid (.34-1.1 bar).
Series A4 Differential Pressure Switch
Adjustable Set Point, High Overpressure
Rugged Series A4 Differential Pressure Switch offers field adjustments and can handle system pressures up to 6000 psig. Piston design allows mounting in any orientation. The switch is capable of carrying moderate shock and vibratory loads.
Specifications
- Series
- A4 Differential Pressure Switch
- Category/Type
- Pressure
- Type
- Differential Pressure
- Series
- A4 Differential Pressure Switch
- Service
- Compatible gases.
- Wetted Materials
- Body; piston; and fittings: anodized aluminum; spring: steel.
- Temperature Limits
- -65 to 225°F (-54 to 107°C).
- Pressure Limits
- 2000 psid (138 bar).
- Repeatability
- See Ordering page.
- Switch Type
- SPDT.
- Electrical Rating
- AC: 3 VA; 0.25A @ 120 VAC; 5 VA; 0.25A @ 175 VDC.
- Electrical Connection
- 24 AWG X 12" (30.5 cm) wire leads.
- Process Connection
- 1/4" female NPT.
- Mounting Orientation
- Any.
- Set Point Adjustment
- See Ordering page.
- Weight
- 8.5 oz (241 g).
- Agency Approvals
- CE.
