A2-6813 | Subminiature pressure switch | brass | 15-100 psi (1.03-6.9 bar) | flying leads | NC | Dwyer

Subminiature pressure switch, brass, 15-100 psi (1.03-6.9 bar), flying leads, NC

Dwyer | A2-6813

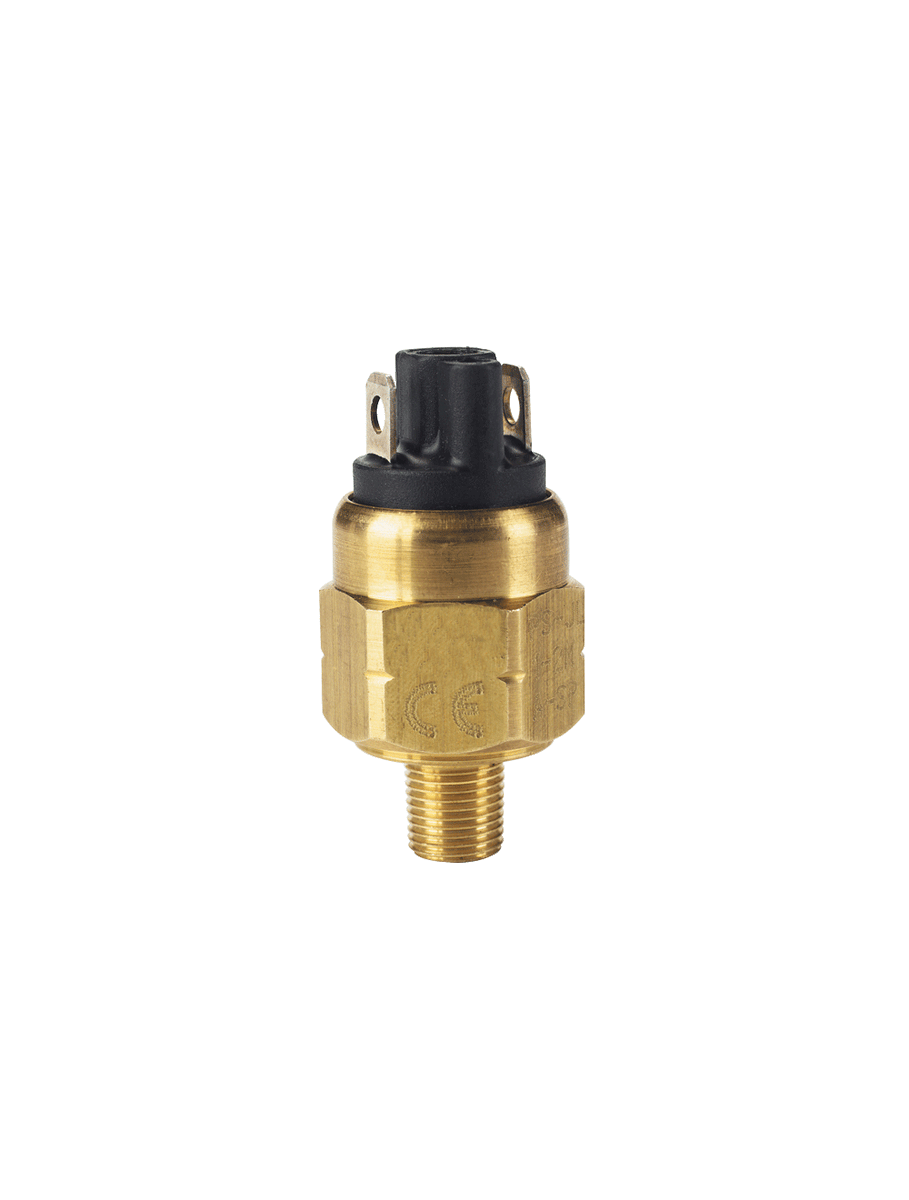

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to A2-6813
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Dwyer A2-6813 Documents

Instruction ManualSeries A2 Catalog Page More Info

Overview

Details for A2-6813

See catalog product page for full listing

Subminiature pressure switch | brass | 15-100 psi (1.03-6.9 bar) | flying leads | NC

SERIES A2 SUBMINIATURE PRESSURE SWITCH

Field Adjustable

Designed for OEM applications, the Series A2 Subminiature Pressure Switchis economical and is equipped with high proof pressure capabilities for demandingapplications. The A2 is available with either spade terminals or flying leads(submersible). Switches with spade terminals can be easily adjusted in the field.

California Residents:  Click Here for Proposition 65 WARNING.

Product Applications

  • OEM
  • High-proof pressure means capable to meet application demands
  • Easy to adjust switches means shorter install and service times

Specifications

Series
A2 SUBMINIATURE PRESSURE SWITCH
Category/Type
Pressure
Type
Single Pressure
Series
A2 SUBMINIATURE PRESSURE SWITCH
Service
Compatible liquids and gases.
Wetted Materials
Polymide film and brass.
Temperature Limits
-40 to 230°F (-40 to 110°C).
Pressure Limits
350 psi (24 bar).
Enclosure Rating
IP69 (flying lead models only).
Repeatability
±3% of highest set point at 70°F (21°C).
Switch Type
SPST; 100 VA; 42 VDC.
Electrical Connection
1/4" (6.3 mm) spade terminals or flying leads.
Process Connection
1/8" male NPT; or 1/4" male NPT.
Weight
0.15 lb (0.07 kg).
Deadband
<10% of actuation point.
Agency Approval
CE.
