A-SSE-PJ-1008 | 9" x 7" Solid stainless steel panel for a 10" x 8" stainless steel enclosure | Dwyer
9" x 7" Solid stainless steel panel for a 10" x 8" stainless steel enclosure
Documents and manuals
Dwyer A-SSE-PJ-1008 Documents
Overview
Details for A-SSE-PJ-1008
9" x 7" Solid stainless steel panel for a 10" x 8" stainless steel enclosure

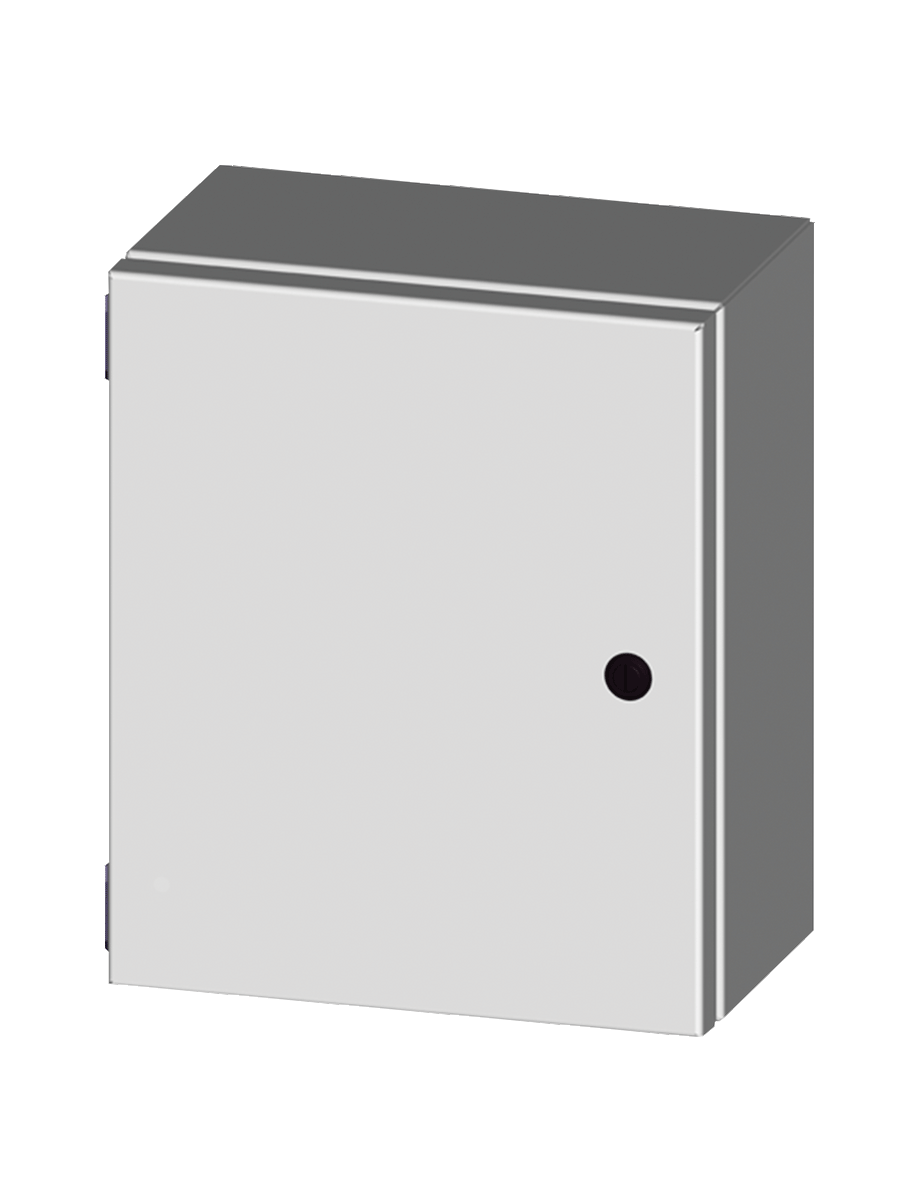

SERIES SSE STAINLESS STEEL ENCLOSURE
The Series SSE Stainless Steel Enclosures are wall mounted enclosures designed to house electrical controls, instruments, and components in locations that are wet, oily, or may be regularly hosed down. The enclosure features seamless welds, butt hinges that allow 180° of rotation, a quarter turn latch that can be opened/closed with a screwdriver, ground studs on the door and body, and standoffs for mounting additional sub-panels. Mounting holes and mounting feet allow for versatile mounting. The oil-resistant gasket, sealing washers, and hole plugs ensure that the components are protected at all times. Optional sub-panels and drip shields can be purchased separately. Mounting feet are included with the SSE-J but must be purchased separately for the SSE-E enclosures. This series is the perfect accessory for a variety of instrumentation in need of full protection.
Specifications
- Series
- SSE STAINLESS STEEL ENCLOSURE
- Category/Type
- Process Control
- Type
- Control Enclosures
- Series
- SSE STAINLESS STEEL ENCLOSURE
- Materials
- Enclosure: 304 SS; Mounting feet: 316 SS†; Hinges: Plastic; All othercomponents: Carbon steel.
- Rating
- NEMA 4X (IP66).
- Dimensions
- See chart on catalog page.
- Thickness
- 0.048" (1.22 mm) for A-SSE-D-XX;0.063" (1.60 mm) for SSE-J-XXXXXX;0.075" (1.91 mm) for SSE-E-XXXXXX and A-SSE-PJ-XXXX;0.088" (2.24 mm) for A-SSE-P-XXXX;0.13" (3.30 mm) for A-SSE-F.
- Weight
- See chart on catalog page.
- Agency Approvals
- CSA; cULus.(Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
- †Included with SSE-J models only.
