A-IEF-IDSP-RM | Indicating remote display for use with Series IEF. | Dwyer

Indicating remote display for use with Series IEF.

Brand: DwyerSKU: A-IEF-IDSP-RM

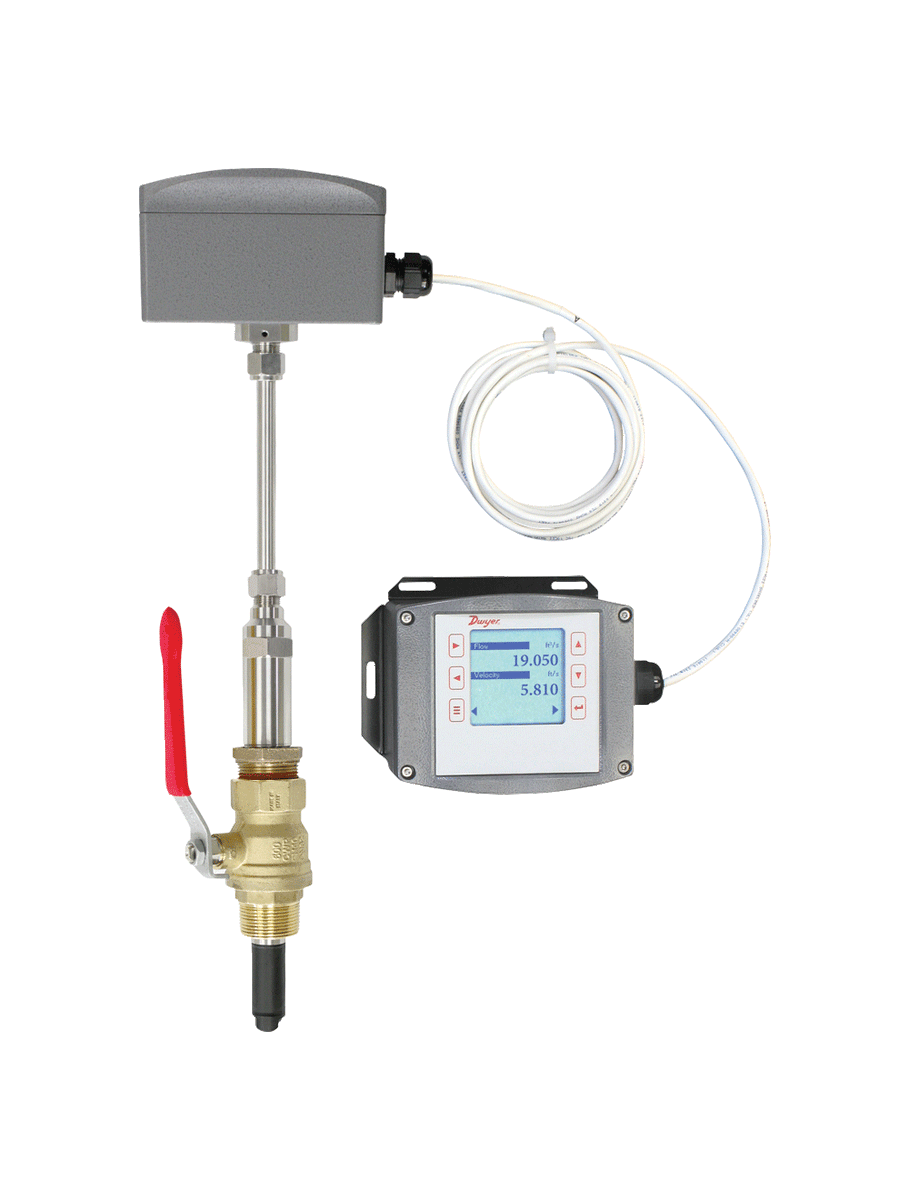

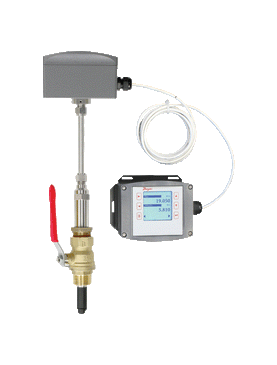

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A-IEF-IDSP-RM

Jump to: Overview & Specifications Reviews

Overview Details for A-IEF-IDSP-RM

See catalog product page for full listing

Indicating remote display for use with Series IEF.

Series A-IEF Remote Display for Series IEF and IEFB

Convenient access to IEF & IEFB meter readings

The Series A-IEF Remote Display can be installed almost anywhere near a Series IEF flow transmitter or IEFB thermal energy meter. Both the indicator display (A-IEF-IDSP-RM) and the full functional display (A-IEF-FDSP-RM) have a maximum display cable length of 100 ft (30 m) to permit easy viewing of flow readings. The full functional display allows for convenient adjustment of configuration settings and can print the IEF or IEFB configuration from a computer.

Product Applications

Mechanical rooms with a small footprint
Hard-to-reach piping
Boilers and chillers
Chilled water
Condenser water
Make-up water
Heating water
Boiler feed water
Steam condensate

Full functional display can be used to set up the IEF/IEFB and adjust the settings if the it is installed in a hard-to-reach location
Indicator display makes it convenient to read process values if the meter is inaccessible
Varying cable lengths of up to 100 ft (30 m) allows for installation flexibility
Easy to install and wire in the field

Specifications

Series: A-IEF Remote Display for Series; IEF and IEFB
Temperature Limits: Ambient: -4 to 158°F (-20 to 70°C); Storage: -40 to 185°F (-40 to 85°C).
Display: 3.3" diagonal graphic LCD. Backlight (full functional display only).
Enclosure Material Housing: Powder coated die cast aluminum.
Enclosure Rating: NEMA 4X (IP66).
Electrical Connection: Removable terminal blocks; #22 AWG (100 ft (30 m) max).
Mounting: Wall or pipe mount.
Mounting Orientation: Any orientation.
Weight: 2.46 lbs (1.12kg).
