A-CSE-1P-1210 | 10" x 8" perforated carbon steel panel for a 12" x 10" NEMA 1 enclosure | Dwyer
10" x 8" perforated carbon steel panel for a 12" x 10" NEMA 1 enclosure
Documents and manuals
Dwyer A-CSE-1P-1210 Documents
Overview
Details for A-CSE-1P-1210
10" x 8" perforated carbon steel panel for a 12" x 10" NEMA 1 enclosure

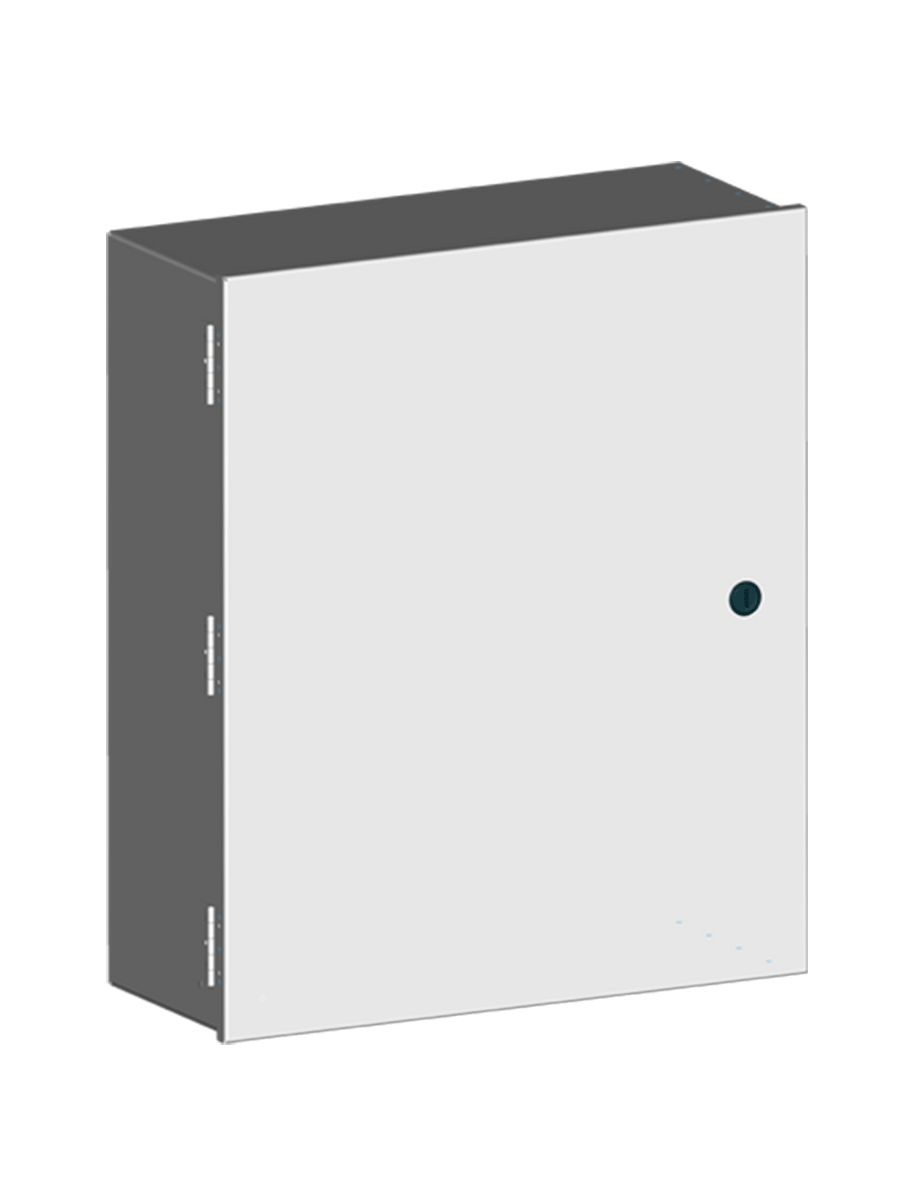

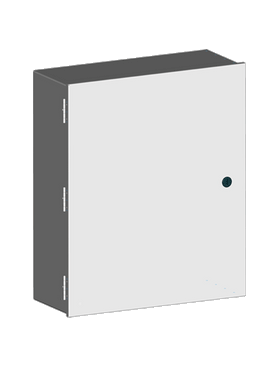

SERIES CSE-N1 CARBON STEEL ENCLOSURES
The Series CSE-N1 Carbon Steel Enclosures are spot-welded, wall mounted enclosures designed to house electrical controls, instruments, and components in general purpose areas. The door features butt hinges that allow 180° of rotation, a quarter turn latch than can be opened/closed with a screwdriver, and a ground stud. Mounting holes on the back of the enclosure allow for versatile mounting and standoffs provide easy installation of optional sub-panels. Each unit offers optional solid or perforated sub-panel and mounting straps for easy instrument mounting. This series is the perfect accessory for a variety of instrumentation in need of general protection and security.
Product Applications
- Housing controls and gages
Specifications
- Series
- CSE-N1 CARBON STEEL ENCLOSURES
- Category/Type
- Process Control
- Type
- Control Enclosures
- Series
- CSE-N1 CARBON STEEL ENCLOSURES
- Materials
- Carbon steel.
- Rating
- NEMA 1.
- Dimensions
- See chart on catalog page.
- Thickness
- 0.060" (1.52 mm) for enclosures <24" wide;0.075" (1.91 mm) for enclosures ≥24" wide;0.060" (1.52 mm) for perforated sub-panels;0.075" (1.91 mm) for solid sub-panels;0.078" (1.98 mm) for mounting straps.
- Weight
- See chart on catalog page.
- Agency Approvals
- CSA; cULus.(Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
