A-700 | Power supply (0.5 A) | Dwyer

Power supply (0.5 A)

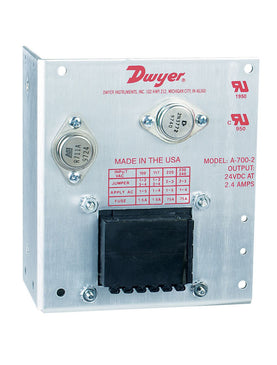

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A-700

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer A-700 Documents

A-700 Model A-700 Catalog Page More Info

Overview

Details for A-700

See catalog product page for full listing

Power supply (0.5 A)

MODEL A-700 POWER SUPPLY

Economical, Compact

The economical and reliable SERIES A-700 power supply is suitable for powering all Dwyer pressure, temperature or air velocity transmitters. Inexpensive, open-frame design allows convenient access to input/output solder terminals. Auxiliary inputs are selectable for operation from power sources found worldwide. Compact size eases enclosure installations.

Product Applications

BAS
HVAC

Universal supply voltage input
Compact size

Specifications

Item Number	A-700
Brand	Dwyer
AC Input	100/120/220/230-240 VAC ±10%; 47-63 Hz.
Ambient Operating Temperature	32 to 122°F (0 to 50°C).
Category/Type	Miscellaneous
DC Output	24-29 VDC regulated.
External Fuse Required	0.5 Amp for 100-120 VAC; 0.25 Amp for 220-240 VAC.
Maximum Current Output	A-700: 0.5 A @ 60 Hz; 0.45 A @ 50 Hz; A-700-2: 2 A @ 60 Hz; 1.8 A @ 50 Hz; A-700-3: 4.8 A @ 60 Hz; 4.5 A @ 50 Hz.
Type	Power Supplies & Transformers
Weight	2 lb.
