A-5006-5 | PVC shut-off valve | 1/8" male NPT inlet x 1/4" male NPT outlet x 1/4" male NPT outlet. | Dwyer
PVC shut-off valve, 1/8" male NPT inlet x 1/4" male NPT outlet x 1/4" male NPT outlet.
Documents and manuals
Dwyer A-5006-5 Documents
Overview
Details for A-5006-5
PVC shut-off valve | 1/8" male NPT inlet x 1/4" male NPT outlet x 1/4" male NPT outlet.
Series A-5000 Shut-Off Valve

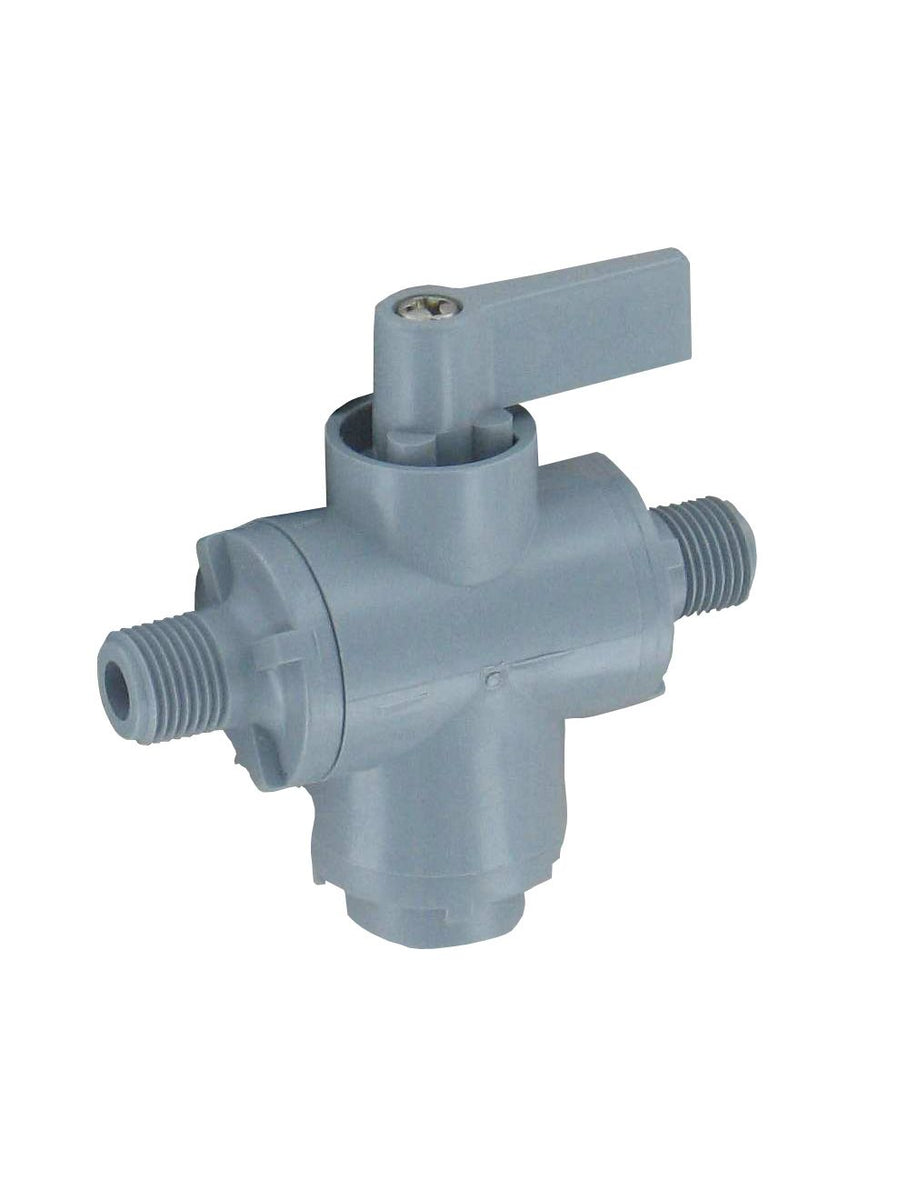

The Series A-5000 3-Way Shut-Off Valve is constructed of solid gray PVC, has Buna-N seals, and a rotating flag handle. The A-5000 can withstand a maximum operating pressure of 125 psi (8.6 bar) and a maximum temperature of 140°F (60°C). The handle has 180° rotation and lies directly over the open port. When the handle is rotated 90° from either port, flow is shut off to both outlet ports. Since the bottom port on the valve is common, the Series A-5000 can be used as a diverter or a selecting valve. These valves can be used to conveniently hook 3 instruments together, as well as testing various gages and transmitters.
Specifications
- Series
- A-5000 Shut-Off Valve
- Category/Type
- Accessories
- Type
- Three-Way Valve
- Series
- A-5000 Shut-Off Valve
- Service
- Air and compatible gases.
- Temperature Limit
- 140°F (60°C).
- Pressure Limit
- 125 psi (8.6 bar).
- Weight
- 1 oz (28 g).
