Documents: A-5004-4

Series A-5000 Catalog Page More Info

A-5004-4 | PVC shut-off valve | 1/4" female NPT inlet x 1/4" female NPT outlet x 1/4" female NPT outlet (125 psi maximum). | Dwyer

PVC shut-off valve, 1/4" female NPT inlet x 1/4" female NPT outlet x 1/4" female NPT outlet (125 psi maximum).

Brand: DwyerSKU: A-5004-4

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A-5004-4

Jump to: Overview & Specifications Reviews

Overview Details for A-5004-4

See catalog product page for full listing

PVC shut-off valve | 1/4" female NPT inlet x 1/4" female NPT outlet x 1/4" female NPT outlet (125 psi maximum).

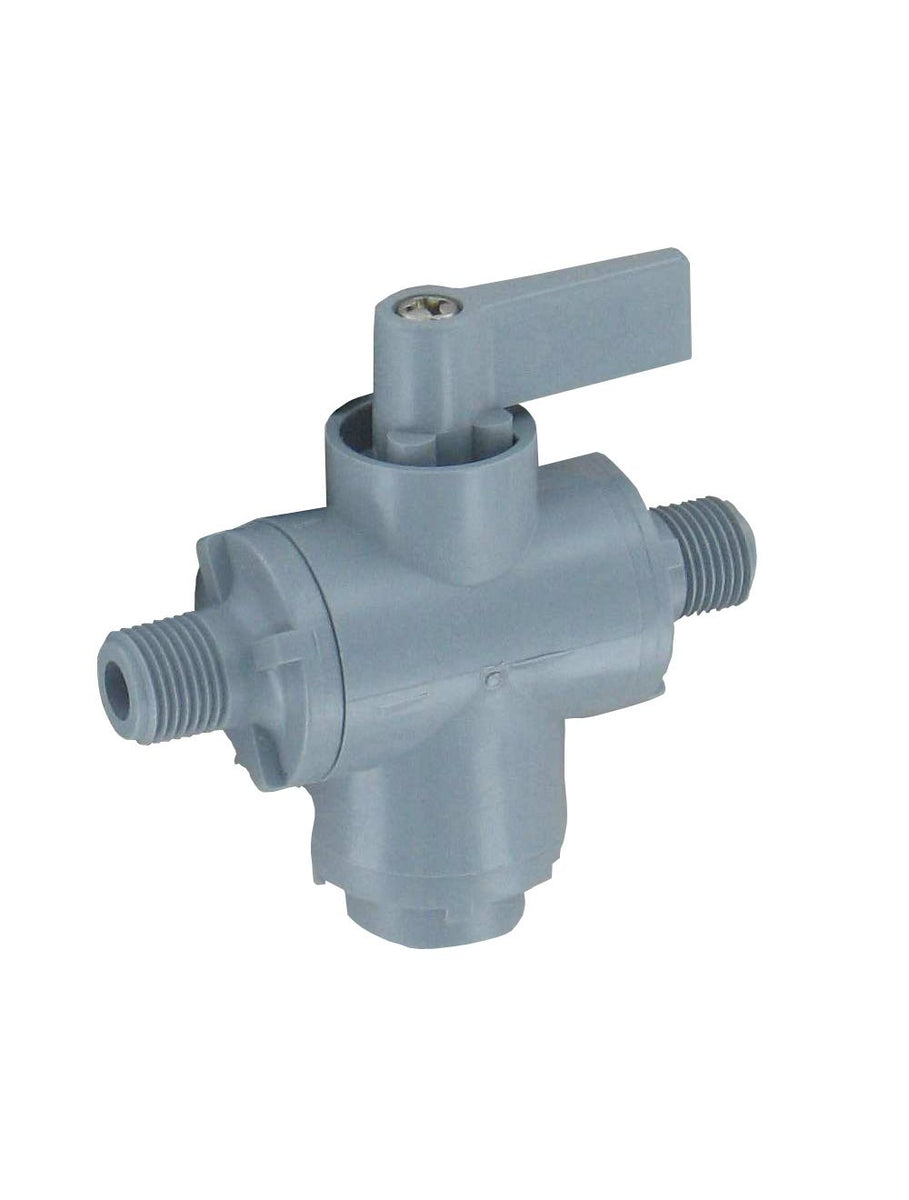

Series A-5000 Shut-Off Valve

3-Way PVC Ball Valve

The Series A-5000 3-Way Shut-Off Valve is constructed of solid gray PVC, has Buna-N seals, and a rotating flag handle. The A-5000 can withstand a maximum operating pressure of 125 psi (8.6 bar) and a maximum temperature of 140°F (60°C). The handle has 180° rotation and lies directly over the open port. When the handle is rotated 90° from either port, flow is shut off to both outlet ports. Since the bottom port on the valve is common, the Series A-5000 can be used as a diverter or a selecting valve. These valves can be used to conveniently hook 3 instruments together, as well as testing various gages and transmitters.
