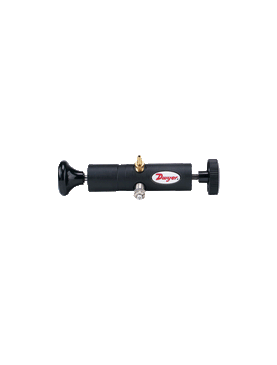

A-396A | Calibration Pump. | Dwyer

Calibration Pump.

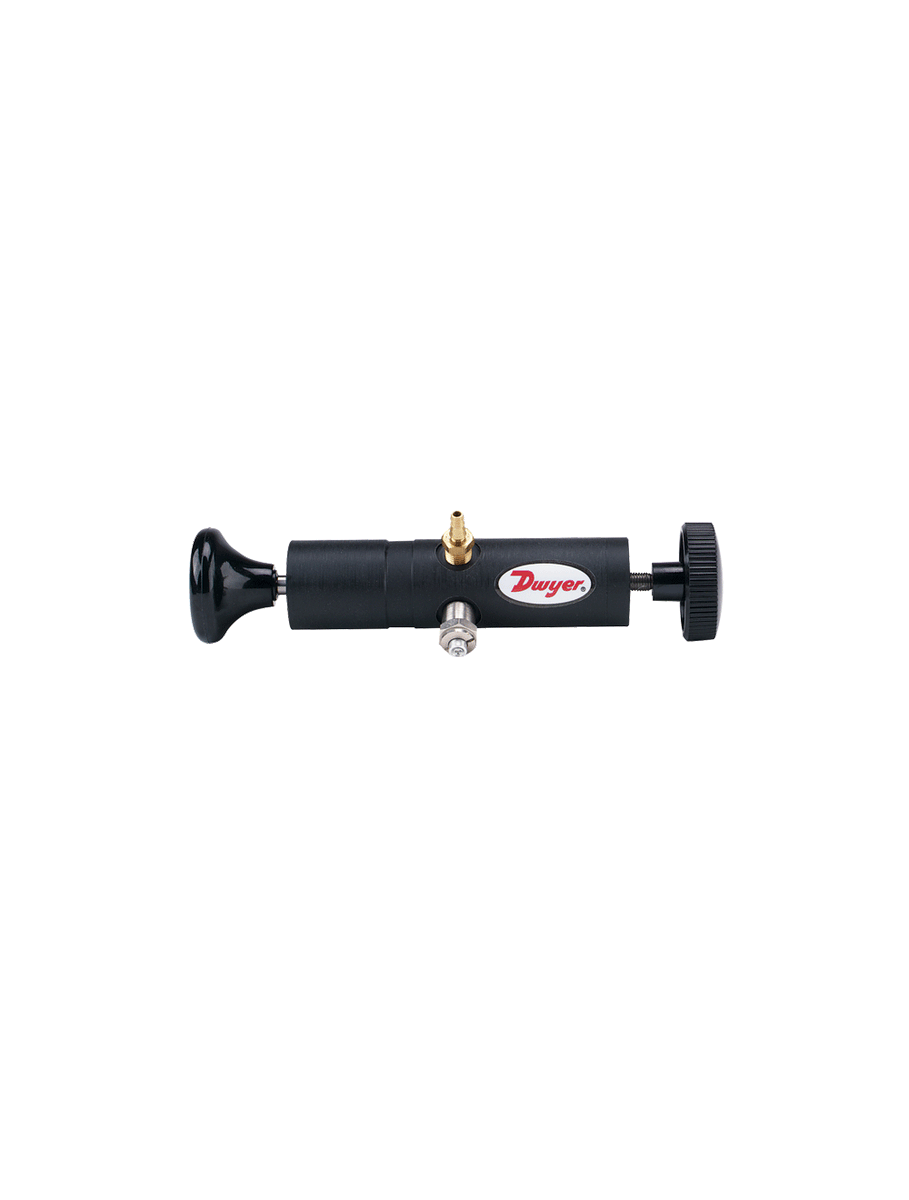

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A-396A

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer A-396A Documents

Instruction Manual Model A-396A Catalog Page More Info

Overview

Details for A-396A

See catalog product page for full listing

Calibration Pump.

MODEL A-396A CALIBRATION PUMP

Generates up to 72 psig, Integral Bleed Fitting

The Model A-396A Calibration Pump serves as pressure source to calibrate gages and transmitters or to set pressure switches. Use with manometer or other pressure standard. Includes volume adjuster enabling fine pressure control and bleed valve. Generates pressures from a fraction of an in w.c. to 72 psig (5 bar). Includes barbed fitting, tee connector and three 36" lengths of vinyl tubing.

Offers wide pressure sourcing capability
Compact and portable
Integral relief valve for fine adjustment
Reference gage recommendation: DPG-024
