Get Special Pricing!
A-170-B | 1/2" NPT male | 316 SS SCH40 | 500 psi @ 680°F | Dwyer
1/2" NPT male, 316 SS SCH40, 500 psi @ 680°F
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to A-170-B
Documents and manuals
Dwyer A-170-B Documents
Overview
Details for A-170-B
See catalog product page for full listing
1/2" NPT male | 316 SS SCH40 | 500 psi @ 680°F

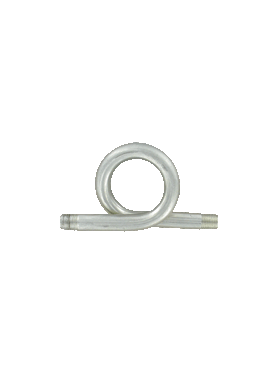

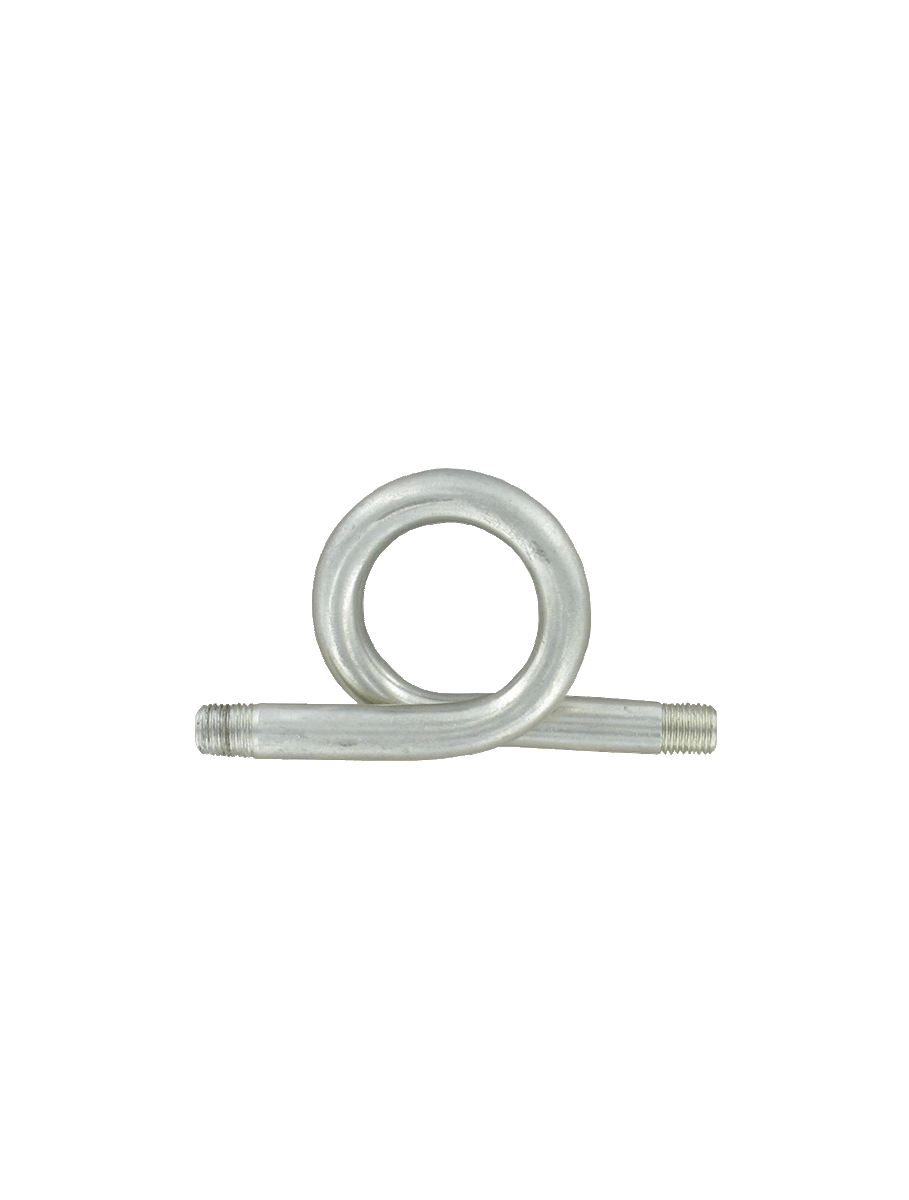

Series A-170 316 Stainless Steel Siphons
Stainless Steel, MNPT connection
The Series A-170 316 Stainless Steel Siphons protect pressure instruments in hightemperature applications. Water held in the 180° coil prevents steam from contactingthe instrument. Constructed with 316 stainless steel, the A-170 siphons offer the bestresistance to corrosion, high temperature, and pressure. They are ideal for use withpressure gages and instrumentation where the process media temperature exceedsthe rating of the instrument. The male NPT connection allows for easy installation andsecure attachment.
Product Applications
- HVAC
- Industrial process
- Stainless steel construction
- MNPT connection allowing for easy installation
Specifications
- Series
- A-170 316 Stainless Steel Siphons
- Category/Type
- Pressure
- Type
- Accessories
- Series
- A-170 316 Stainless Steel Siphons
- Service
- Compatible liquids and gases.
- Wetted Materials
- 316 SS.
- Pressure Limits
- See catalog page.
- Temperature Limits
- See catalog page.
- Process Connections
- See catalog page.
- Weight
- 1/4" NPT models: 8 oz (226.8 g); 1/2" NPT models: 25.6 oz (725.75 g).
- Agency Approvals
- RoHS*.
- *Model A-170 is not RoHS certified.
