A-170-A | 1/4" NPT male | 316 SS SCH40 | 500 psi @ 680°F | Dwyer

1/4" NPT male, 316 SS SCH40, 500 psi @ 680°F

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A-170-A

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer A-170-A Documents

Series A-170 Catalog Page More Info

Overview

Details for A-170-A

See catalog product page for full listing

1/4" NPT male | 316 SS SCH40 | 500 psi @ 680°F

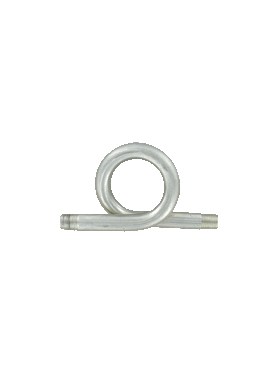

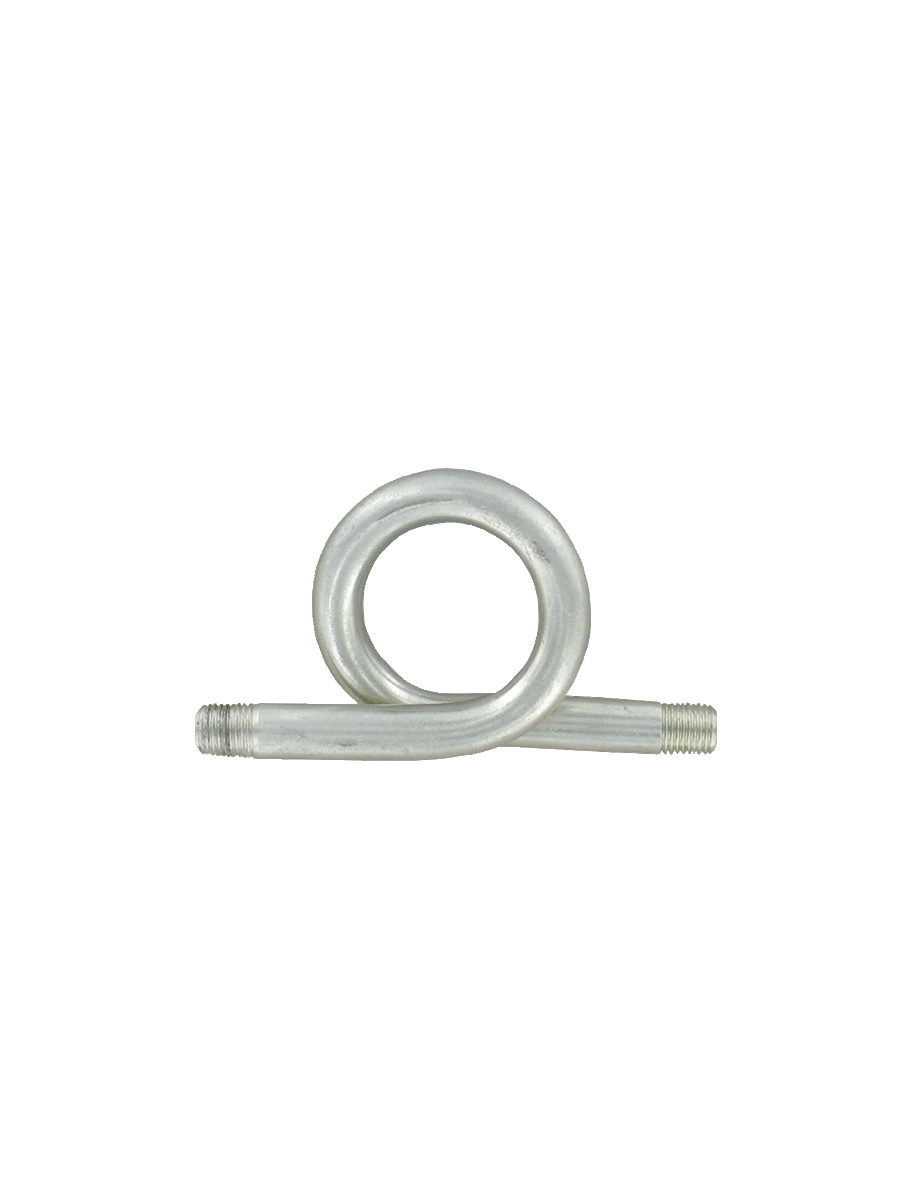

Series A-170 316 Stainless Steel Siphons

Stainless Steel, MNPT connection

The Series A-170 316 Stainless Steel Siphons protect pressure instruments in hightemperature applications. Water held in the 180° coil prevents steam from contactingthe instrument. Constructed with 316 stainless steel, the A-170 siphons offer the bestresistance to corrosion, high temperature, and pressure. They are ideal for use withpressure gages and instrumentation where the process media temperature exceedsthe rating of the instrument. The male NPT connection allows for easy installation andsecure attachment.

Product Applications

HVAC
Industrial process

Stainless steel construction
MNPT connection allowing for easy installation

Specifications

Series: A-170 316 Stainless Steel Siphons
Category/Type: Pressure
Type: Accessories
Series: A-170 316 Stainless Steel Siphons
Service: Compatible liquids and gases.
Wetted Materials: 316 SS.
Pressure Limits: See catalog page.
Temperature Limits: See catalog page.
Process Connections: See catalog page.
Weight: 1/4" NPT models: 8 oz (226.8 g); 1/2" NPT models: 25.6 oz (725.75 g).
Agency Approvals: RoHS*.
: *Model A-170 is not RoHS certified.
