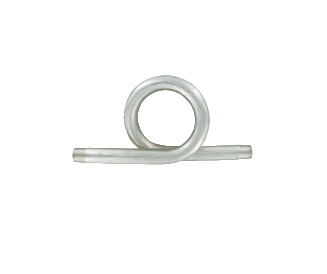

A-169-C | siphon | 1/4" npt male process connection | carbon steel SCH 80 | Dwyer

siphon, 1/4" npt male process connection, carbon steel SCH 80

Brand: DwyerSKU: A-169-C

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A-169-C

Jump to: Overview & Specifications Reviews

Overview Details for A-169-C

See catalog product page for full listing

siphon | 1/4" npt male process connection | carbon steel SCH 80

Series A-169 Carbon Steel Siphons

Carbon Steel, MNPT Connection

The Series A-169 Carbon Steel Siphons protect pressure instruments in high temperature applications. Water held in the 180° coil prevents steam from contacting the instrument. Constructed with carbon steel, the A-169 siphons can withstand high temperature and pressure. They are ideal for use with pressure gages and instrumentation where the process media temperature exceeds the rating of the instrument. The male NPT connection allows for easy installation and secure attachment.

Product Applications

HVAC
Industrial process

Carbon steel construction
MNPT connection allowing for easy installation

Specifications

Series: A-169 Carbon Steel Siphons
Category/Type: Pressure
Type: Accessories
Series: A-169 Carbon Steel Siphons
Service: Compatible liquids and gases.
Wetted Materials: Carbon steel.
Pressure Limits: 500 psi (34 bar).
Temperature Limits: 680°F (360°C).
Process Connections: See chart on catalog page.
Weight: 1/4" NPT models: 8 oz (226.8 g); 1/2" NPT models: 34.9 oz (988.8 g).
