9671 | Multifunction anemometer | Dwyer
Multifunction anemometer.
Documents and manuals
Dwyer 9671 Documents
Overview
Details for 9671
Multifunction anemometer

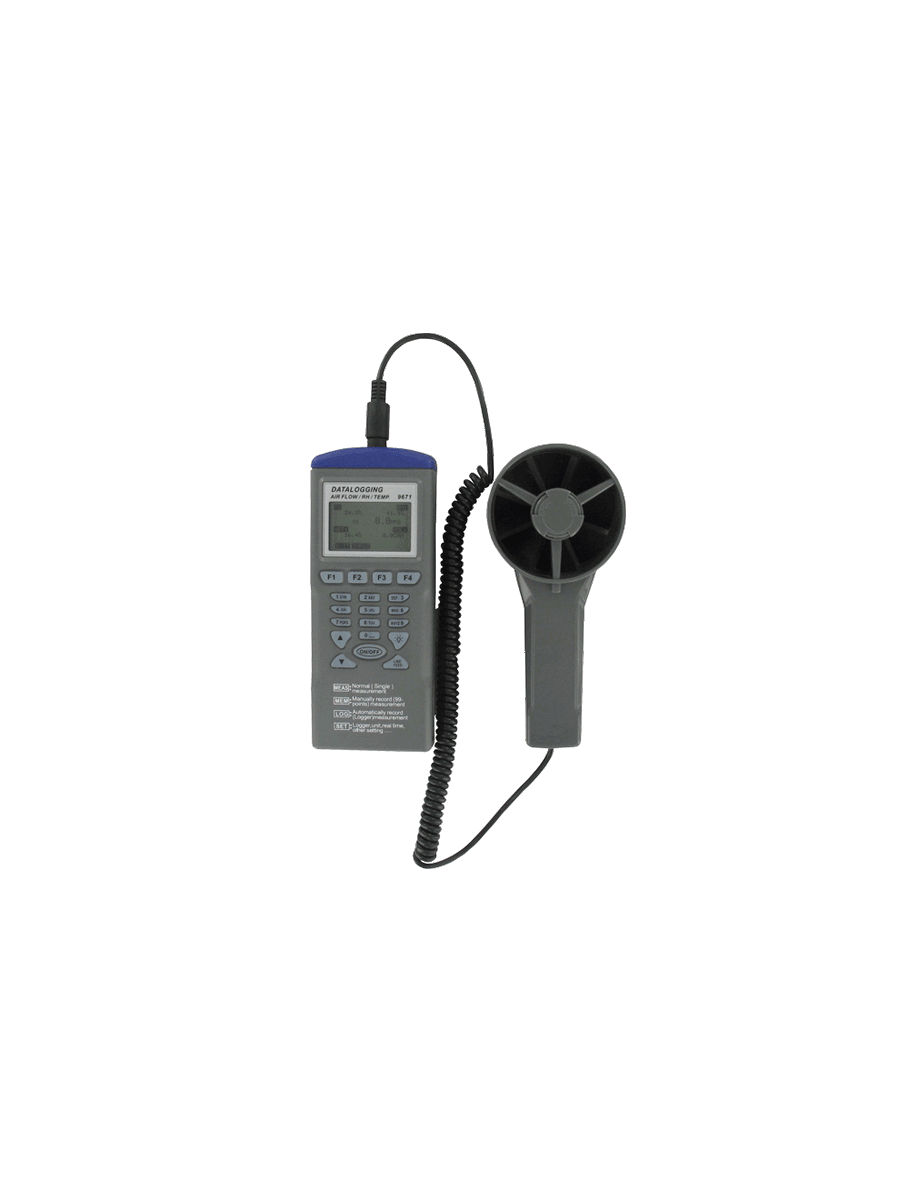

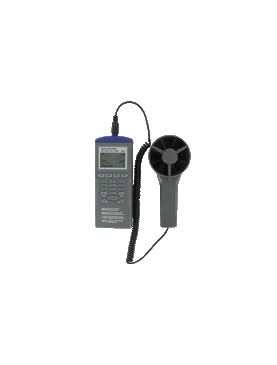

MODEL 9671 MULTIFUNCTION VANE THERMO-ANEMOMETER
Measure air velocity, air volume, temperature, humidity, and BTU with the Model 9671 Multifunction Anemometer. The large 1.8" (45 mm) display allows users to easily view readings. User-selectable wind speed units include ft/min, m/s, knots, mph and km/hr. In addition to these functions, the 9671 is capable of measuring relative humidity, wet bulb temperature, dew point and BTU capacity. A built-in sensor records ambient temperature in °F or °C. Model 9671 features include data hold, along with the ability to record minimum, maximum and average readings on a single point. Additional features include an RS-232 interface setting that allows the unit to download data, as well as upload up to 99 measurements through pre-edited PC files. The 9671 also has a detachable probe for easy replacement, if necessary, or to attach a miniature vane probe. Each unit includes hard carrying case, batteries, software CD, cable and instruction manual.
Specifications
- Power Requirements
- (4) AAA alkaline batteries; included; userreplaceable.
- Battery Life
- 100 hours.
- Vane Diameter
- 3" (77 mm).
- Weight
- 6 oz (170 g).
- Agency Approvals
- CE.
