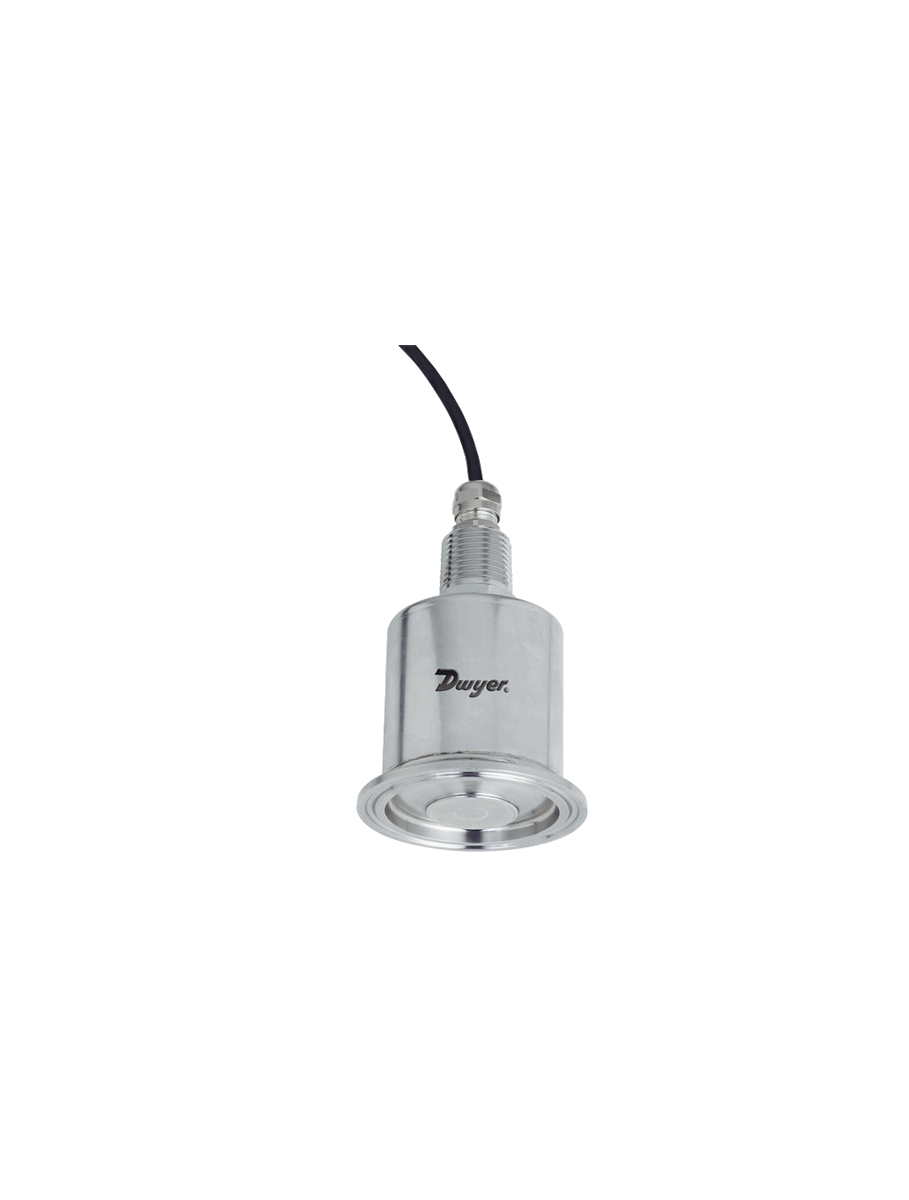

Series 681 Sanitary Pressure Transmitter
The Series 681 Sanitary Pressure Transmitter is designed to meet 3A standards for applications in food, dairy, beverage and pharmaceutical processing, liquid level control, and sanitary pipelines. The unit is fully sealed to withstand high pressure wash-down in Clean-in-Place (CIP) and Sterilize-in-Place (SIP) installations. The Series 681 is designed with a unique, no liquid fill diaphragm and a Sanitary Clamp pressure fitting for easy installation with negligible clamping effect. A conduit fitting, shielded cable with vent tube and sealed screws for zero and span adjustment combine to make the Series 681 completely watertight.
Calibration Option available under Accessories.
Product Applications
- Sanitary process applications
- Food and beverage processing
- Water processing
- Dairy processing
- Pharmaceutical processing
- Fully sealed to withstand Clean-in-Place and Sterilize-in-Place installations supportsregulatory conditions for sanitary processes
- Sanitary clamp fitting makes for easy installation
Specifications
- Series
- 681 Sanitary Pressure Transmitter
- Category/Type
- Pressure
- Type
- Single Pressure
- Series
- 681 Sanitary Pressure Transmitter
- Service
- Compatible liquids and gases.
- Wetted Parts
- 316L Stainless Steel.
- Accuracy
- ±.20% FS (includes non-linearity; hysteresis and non-repeatability).
- Temperature Limits
- -40 to 260°F (-40 to 125°C) 10 to 90% RH; non-condensing.
- Pressure Limits
- See Catalog page.
- Compensated Temperature Range
- 20 to 180°F (-7 to 80°C).
- Thermal Effect
- Zero and span shift: ±2.0% FS/100°F (% FS/50°C).
- Power Requirements
- 9-30 VDC.
- Output Signal
- 4-20 mA; 2-wire.
- Zero and Span Adjustment
- ±0.5 mA; non-interactive.
- Response Time
- ≤10 ms.
- Loop Resistance
- 800 ohms.
- Electrical Connections
- 1/2" conduit fitting and strain relief with 15 ft (4.5 m) cable.
- Pressure Connection
- 2" or 1-1/2" Sanitary Clamp fitting male NPT .
- Clamping Effect
- Zero and span shift: ±0.15% FS for ranges up to 30 psi; ±0.25% FS for ranges >30 psi.
- Weight
- 8 oz (227 g)
- Agency Approvals
- 3A; CE.
