673-5C | Pressure transmitter | range 0-25 psi. | Dwyer

Pressure transmitter, range 0-25 psi.

Brand: DwyerSKU: 673-5C

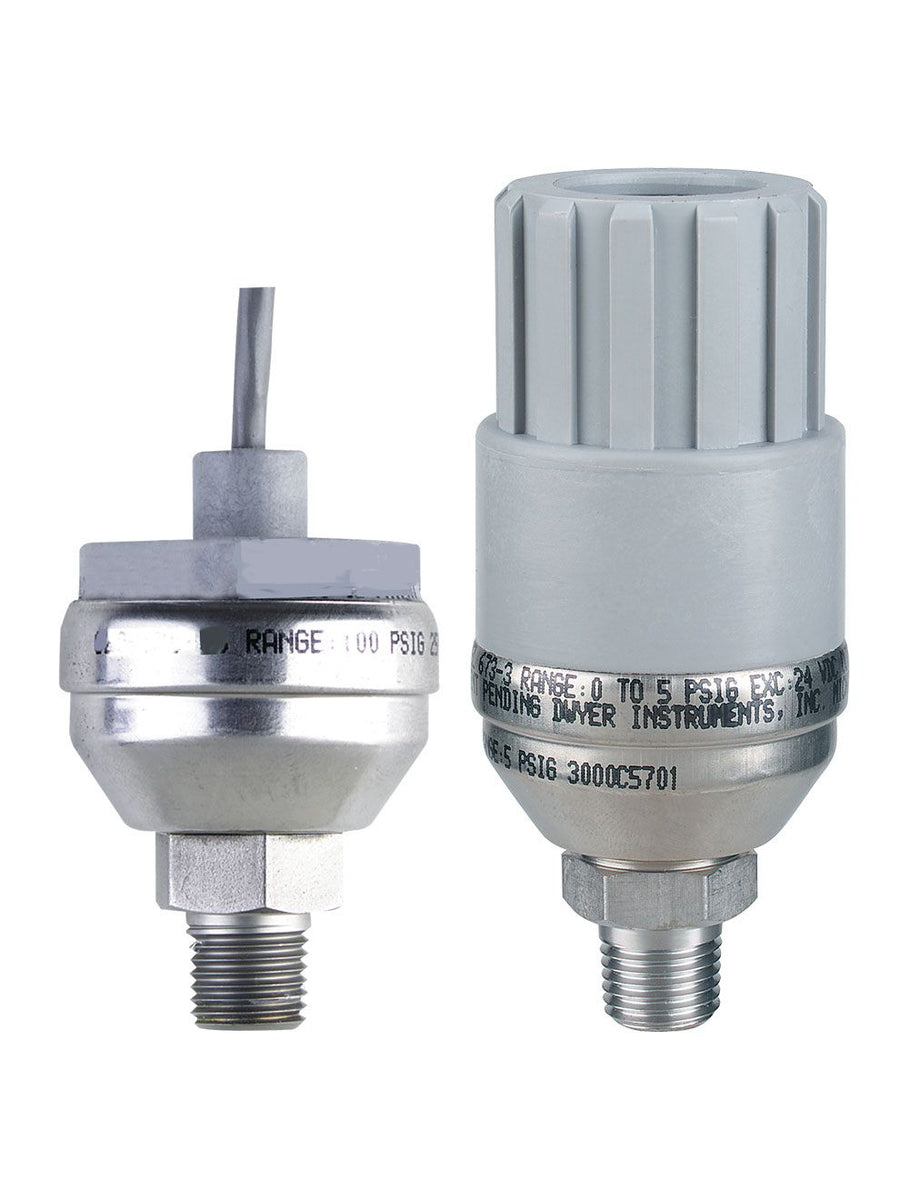

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 673-5C

Jump to: Overview & Specifications Reviews

Overview Details for 673-5C

See catalog product page for full listing

Pressure transmitter | range 0-25 psi.

Series 673 Pressure Transmitter

±0.25% FS Accuracy, 4-20 mA Signal, Ranges to 1000 psi

The low cost Series 673 Pressure Transmitter is a fixed range transmitter designed for harsh environments and suitable for high shock and vibration applications. Constructed of stainless steel, the Series 673 provides a 4 to 20 mA output signal with 0.25% accuracy. Use the Series 673 in industrial OEM equipment, hydraulic systems, HVAC equipment, industrial engines and compressor control.

Calibration Option available under Accessories.

Product Applications

OEM
Hydraulic systems
HVAC equipment
Industrial engines
Compressors

High-shock and vibration resistant insures stability in controlling pressure for processapplications

Specifications

Series: 673 Pressure Transmitter
Category/Type: Pressure
Type: Single Pressure
Series: 673 Pressure Transmitter
Service: Non-combustible liquid; gas; or vapor.
Wetted Materials: 17-4 PH Stainless Steel.
Accuracy: RSS* (at constant temperature) ±0.25%. Non-linearity (BSFL) ±0.22% FS; Hysteresis 0.10% FS; Non-repeatability 0.05% FS.
Temperature Limits: -40 to 185°F (-40 to 85°C).
Compensated Temperature Range: -40 to 176°F (-40 to 80°C).
Pressure Limits: 2X max range.
Thermal Effects: Zero Shift: ±2.0% FS/100°F (±1.8% FS/50°C); Span Shift: ±1.5% FS/100°F (±1.3% FS/50°C); Warm-up Shift: ±0.1% FS total.
Stability: 0.5% FS/year.
Response Time: 5 ms.
Power Requirements: 9-30 VDC.
Output: 4-20 mA**; 2-wire.
Zero and Span Adjustment: Fixed.
Loop Resistance: 0 to 800 Ω.
Shock: 200 g.
Vibration: 20 g.
Electrical Connections: 2 ft (61 cm) multiconductor cable. Conduit Models: 1/4"-18 (22.3 mm) knockout.
Enclosure: Stainless Steel and Valox.
Weight: 2.3 oz (65 g).
Agency Approvals: CE.
: *RSS of non-linearity; hysteresis; and non-repeatability.**Zero output factory set to within ±0.16 mA; Span (full scale) output factory set to within ±0.16 mA.
