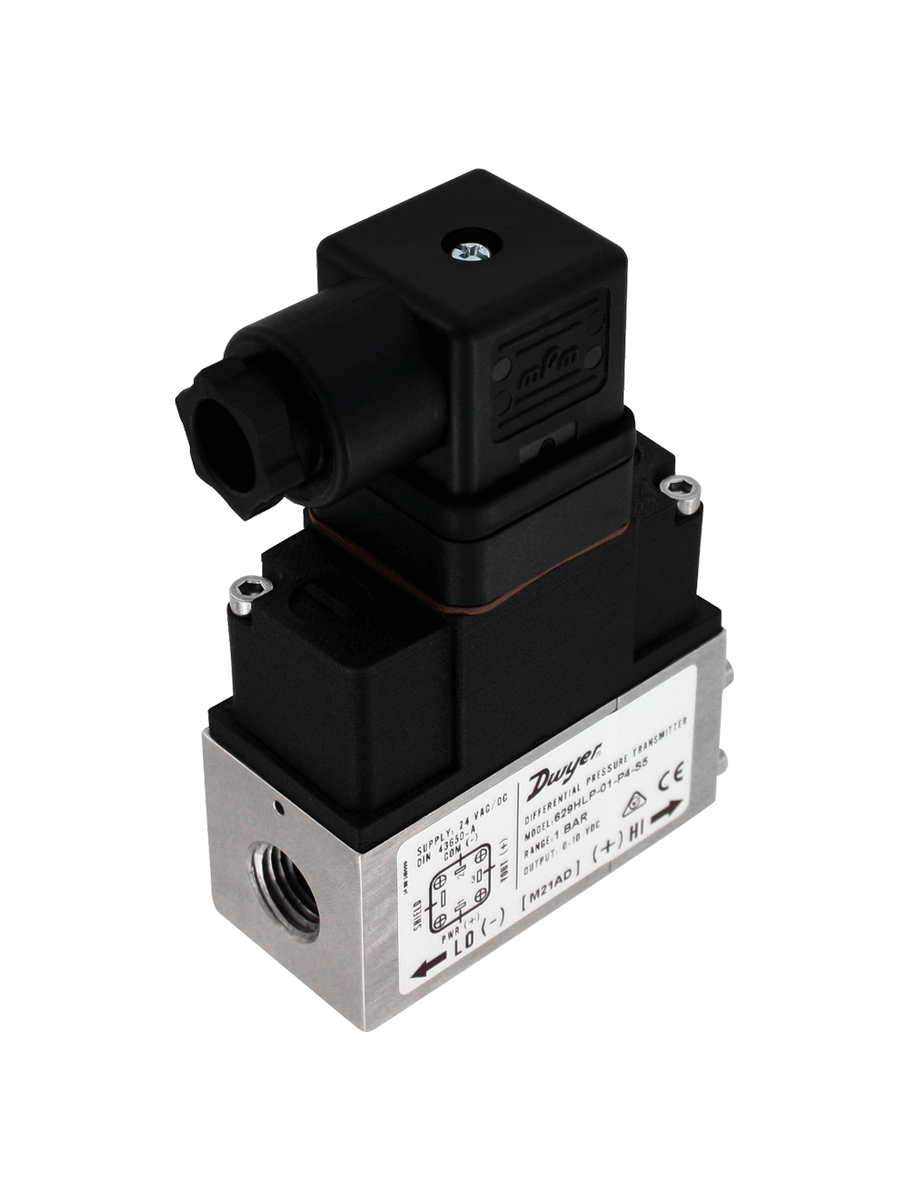

Differential pressure transmitter | 0 to 1 bar | 1/4" Female NPT | 4-20mA

Series 629HLP Differential Pressure Transmitter

High Accuracy, IP65 Enclosure

The Series 629HLP Differential Pressure Transmitters are suitable for measuring over-pressure, under-pressure, and differential pressure in compatible gases and liquids with 1% accuracy. The 629HLP is suitable for all measuring tasks in commercial, industrial or sanitary applications. Its single sensor design allows it to measure small increment pressure changes, and converts them to a linear analog output signal from 4 to 20 mA or 0 to 10 VDC.

NIST CALIBRATION available in Product Configurator.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Heat exchangers
Fan coils/air handlers
Core testing applications
Hydraulic systems
High line pressures/low DP
Pumps
Commercial/industrial processes
Sanitary process

Rugged, versatile, high accuracy device
For liquid or gas systems requiring precise measurements
Provide excellent response and reliability
Suitable for static and dynamic measurements
Converts pressure changes into 4 to 20 mA or 0 to 10 VDC output
Compact, lightweight, capable to be installed in any arrangement making installationvery simple
Capable to handle up to 360 psi (25 BAR)

Specifications

Series: 629HLP Differential Pressure Transmitter
Category/Type: Pressure
Type: Differential Pressure
Series: 629HLP Differential Pressure Transmitter
Service: Compatible gases or liquids.
Wetted Material: 304 SS; EPDM; silicone grease; alumina ceramic; optional 3-way valve: brass; copper; nylon; HNBR; FKM; NBR.
Housing Material: ABS.
Enclosure Rating: IP65.
Accuracy: ±1% from -5 to 60°C (23 to 140°F).
Stability: ±1% FS/year.
Temperature Limits: Ambient: -10 to 60°C (14 to 122°F); Process: -10 to 80°C (14to 176°F).
Relative Humidity: 10% to 90% non-condensing.
Installation Position: Not position sensitive.
Over Pressure: 5 bars for 0 to 1 bar and 0 to 2.5 bar ranges; 12 bars for 0 to 4 bar and 0 to 6 bar ranges; 70 psi for 0 to 15 psi and 0 to30 psi ranges; 174 psi for 0 to 60 psi and 0 to 90 psi ranges.
Burst Pressure: 8 bars for 0 to 1 bar and 0 to 2.5 bar ranges;18 bars for 0 to 4 bar and 0 to 6 bar ranges; 115 psi for 0 to 15 psi and 0 to30 psi ranges; 260 psi for 0 to 60 and 0 to 90 psi ranges.
Static Pressure Limits: 25 bar (360 psi).
Output Signal: 4 to 20 mA; 0 to 10 VDC.
Response Time: 50 ms.
Rated Supply Voltage: 0 to 10 VDC Output: 12 to 36 VDC or 12 to 32 VAC (@ Max load of 2 kΩ) 4 to 20mA output: 8 to 36 VDC.
Max Loop Resistance: (Supply Voltage – 8 V) / 0.02 for 4 to 20mA output.
Power Consumption: Vout = 13 mA max; Iout = 24 mA max.
Electrical Connections: Form A DIN 43650.
Process Connections: Standard: 1/4" female NPT; 1/4" female BSPT; with 3-way valve option: 1/8" female NPT; 1/8" female BSPT.
Weight: 1 lb 4 oz (567 g).
Approvals: CE.
